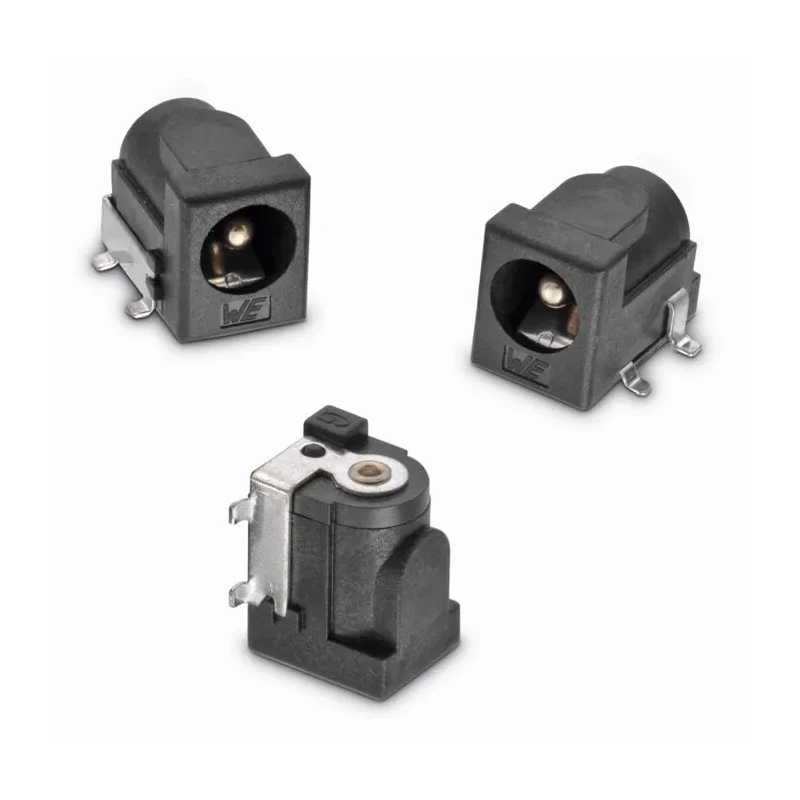

Wurth Elektronik WR-DC Right Angle DC Socket 5A 24V PCB Mount Length 9mm Tin Gold 694108106102

Wurth Elektronik 694108106102 Right Angle DC Socket is an electronic component designed for PCB mounting, supporting a 5A current at 24V. It provides a compact and reliable DC power connection for various electronic applications.

This DC power socket features a right angle orientation, making it suitable for space-constrained PCB layouts. The connector has an inside diameter of 2.5 mm and an outside diameter of 5.55 mm, with contact pins sized at 2.55 mm diameter. The solder termination type ensures a strong and dependable connection to the PCB.

The contacts are manufactured using copper alloy and plated with tin and gold, enhancing electrical conductivity and corrosion resistance. The female connector design and a housing width of 14.7 mm by length of 9 mm allow for easy integration into power connector solutions. The housing is constructed from black UL94-V0 PA9T plastic providing flame retardant properties and mechanical strength.

Board guides incorporated into the bottom of the housing aid precise positioning during PCB assembly, improving manufacturing processes. As part of the WR-DC series, this socket is targeted for demanding industrial and commercial electronic equipment requiring effective DC power delivery.

The socket's right angle design supports compact and efficient PCB layout configurations. High-quality copper alloy contacts with durable tin and gold plating ensure longevity and consistent performance. PCB mount style with solder termination offers secure and reliable electrical connection.

Black UL94-V0 PA9T housing material provides safety through flame retardant properties. Board guides facilitate ease of assembly and precise PCB positioning. Suitable for electronics, industrial, and power applications requiring 5A current and 24V voltage ratings.

Connector dimensions support design flexibility in various electronic system builds.

This product is essential for electronics manufacturers looking for stable and long-lasting DC power connections on printed circuit boards. Its quality construction and certification-free design ensure compatibility with a wide range of industrial and commercial electronic devices.
