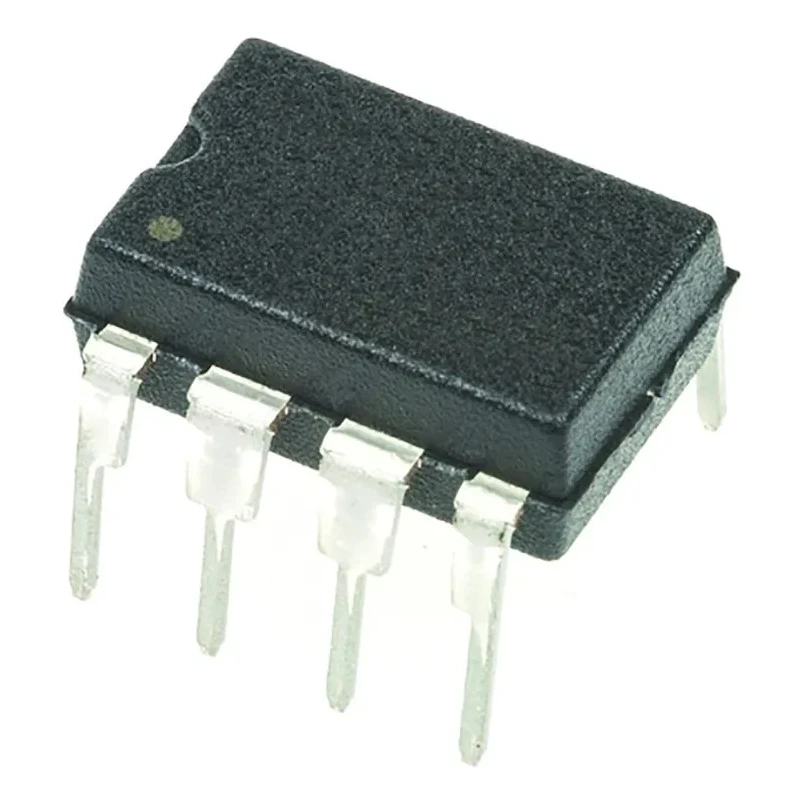

Texas Instruments Operational Amplifier 5 MHz 8-Pin 18V MDIP LF356N/NOPB
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Texas Instruments |
| Height | 3.3mm |
| Length | 9.27mm |
| Model | LF356N/NOPB |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LFx5x |
| Maximum Operating Temperature | 70°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 5MHz |
| Input Bias Current | 8 nA |
| Vos - Input Offset Voltage | 13 mV |
| Slew Rate | 12V/μs |
| Input Offset Current | 2 nA |
Key Features
- Features a gain bandwidth product of 5 MHz for efficient frequency response.
- Operates on a supply voltage range from -18V to 18V, suitable for versatile circuit designs.
- Includes 8 pins in an MDIP (Mini Dual In-line Package) housing for through-hole mounting.
- Offers a low input offset voltage of 13 mV and minimal input bias current of 8 nA.
- Functions reliably in temperature ranges from 0°C to 70°C for industrial use.
- Provides a slew rate of 12 V/μs to handle fast signal changes.
- Manufactured in the United Kingdom with new product condition.
Product Description
Texas Instruments LF356N/NOPB Operational Amplifier is a high-quality JFET input operational amplifier designed for a wide range of electronic and industrial applications. Operating at a gain bandwidth of 5 MHz, this amplifier ensures precise signal amplification with low distortion and noise, suitable for use in signal processing, filtering, and instrumentation circuits.
The device supports a symmetrical power supply voltage from -18V to +18V, accommodating various system designs that require high-voltage operational amplifiers. It comes in an 8-pin MDIP package optimized for through-hole mounting, providing easy integration into printed circuit boards.
Key electrical characteristics include a low input offset voltage of 13 mV and an input bias current of 8 nA, enabling accurate analog signal handling with minimal error. The slew rate of 12 V/μs allows rapid response to input signal changes, making it ideal for fast operational circuits.
Designed to operate reliably within an industrial temperature range from 0°C to 70°C, it withstands demanding environmental conditions. The compact dimensions (9.27 mm length, 6.35 mm width, and 3.3 mm height) facilitate use in space-constrained assemblies.
This operational amplifier enhances the performance of systems in industrial, laboratory, manufacturing, and electronic control environments. Its JFET input stage provides high input impedance and low noise for precision analog signal processing. The product is manufactured in the United Kingdom and supplied in new condition, ensuring quality and reliability.
Features a gain bandwidth product of 5 MHz for efficient frequency response. Operates on a supply voltage range from -18V to 18V, suitable for versatile circuit designs. Includes 8 pins in an MDIP (Mini Dual In-line Package) housing for through-hole mounting.
Offers a low input offset voltage of 13 mV and minimal input bias current of 8 nA. Functions reliably in temperature ranges from 0°C to 70°C for industrial use. Provides a slew rate of 12 V/μs to handle fast signal changes.
Dimensions are compact with length 9.27 mm, width 6.35 mm, and height 3.3 mm. Manufactured in the United Kingdom with new product condition. Browse the extensive selection of Operational Amplifiers and electronic components available at EnvMart for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 5 MHz, providing efficient frequency response for various applications.
This model operates on a supply voltage range from -18V to +18V, making it suitable for versatile circuit designs.
The dimensions of this operational amplifier are 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height.
It comes in an 8-pin MDIP (Mini Dual In-line Package) housing, designed for through-hole mounting.
The input offset voltage of this operational amplifier is 13 mV, which helps in minimizing signal distortion.
This operational amplifier has a slew rate of 12 V/μs, allowing it to handle fast signal changes effectively.
It functions reliably within an industrial temperature range from 0°C to 70°C.
The input bias current is 8 nA, which contributes to its low noise performance.
This operational amplifier has a single channel configuration.
The operational amplifier is manufactured in the United Kingdom.
It belongs to the LFx5x series of operational amplifiers.
The input offset current is 2 nA, which is important for maintaining accuracy in analog signal processing.
