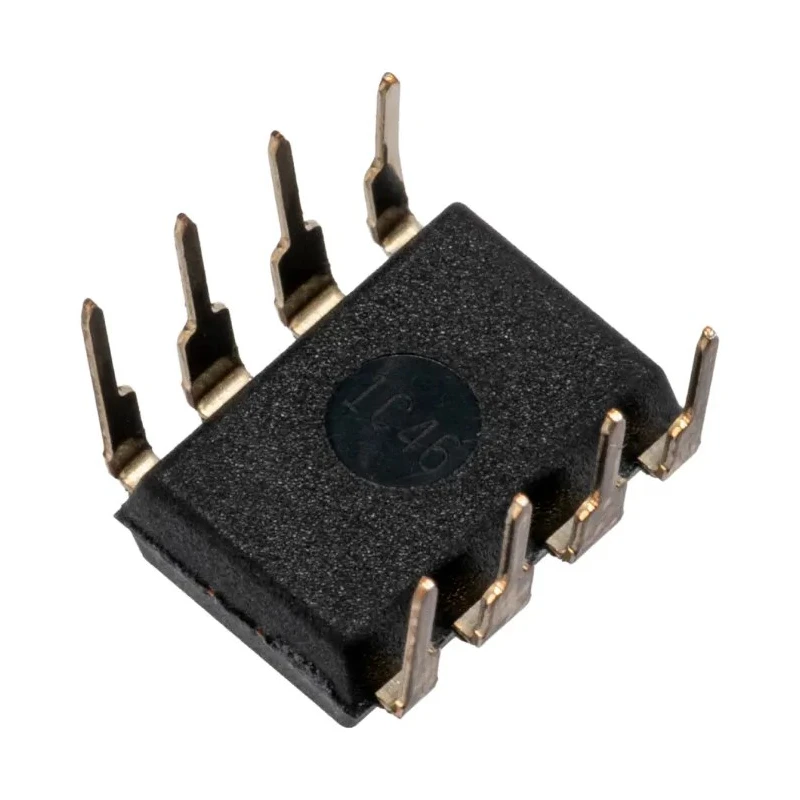

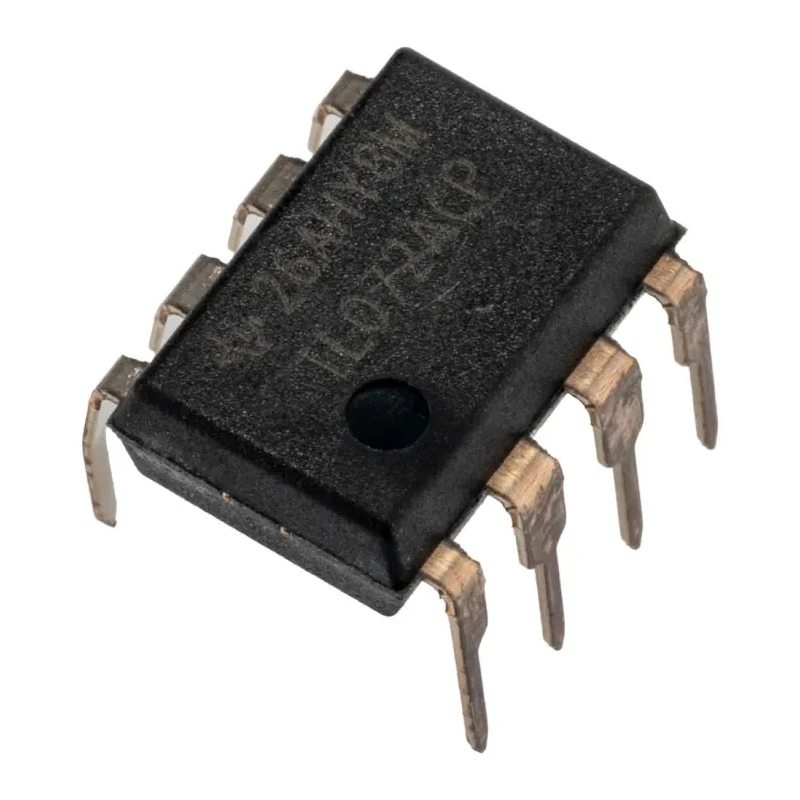

Texas Instruments Operational Amplifier 3 MHz Gain Bandwidth Product 8-Pin PDIP TL072ACP
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TL072ACP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL072 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 7 nA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- The amplifier features dual channels with low input bias current suitable for precision applications.
- Operates on a wide supply voltage range from 5V to 15V ensuring flexibility in design.
- Provides high slew rate of 13 V/μs for fast signal response.
- Compact dimensions of 9.81 mm length, 6.35 mm width, and 4.57 mm height for space-constrained environments.
- High input offset voltage of 7.5 mV and low input offset current of 2 nA, minimizing signal distortion.
- Low noise level of 18 nV/√Hz typical at 1 kHz, enhancing signal clarity.
- Wide operational temperature range from 0°C to 70°C for reliable industrial usage.
- Manufactured in Malaysia with new product condition assurance.
Product Description
Texas Instruments TL072ACP is a JFET input operational amplifier from the TL070 and TL080 families, known for its low input bias currents and high slew rates. This dual-channel op amp comes in an 8-pin PDIP package, suitable for through-hole mounting applications. It operates across a wide supply voltage range from 5V to 15V (±5 to ±15V), delivering a gain bandwidth product of 3 MHz and a high slew rate of 13 V/μs.
The device features a low input offset voltage of 7.5 mV and a low input offset current of 2 nA, making it ideal for high-accuracy audio, signal processing, and instrumentation circuits. Its low noise specification of 18 nV/√Hz at 1 kHz reduces signal distortion for clearer output results.
The physical dimensions of 9.81 mm in length, 6.35 mm width, and 4.57 mm height allow for compact PCB layouts. Operating temperature ranges from 0°C to 70°C guarantee dependable performance in various industrial and commercial environments.
This op amp is widely used in industrial instrumentation, audio processing, laboratory equipment, and signal conditioning circuits. The product is manufactured in Malaysia and is provided in new condition.
The amplifier features dual channels with low input bias current suitable for precision applications. Operates on a wide supply voltage range from 5V to 15V ensuring flexibility in design. Provides high slew rate of 13 V/μs for fast signal response.
Compact dimensions of 9.81 mm length, 6.35 mm width, and 4.57 mm height for space-constrained environments. High input offset voltage of 7.5 mV and low input offset current of 2 nA, minimizing signal distortion. Low noise level of 18 nV/√Hz typical at 1 kHz, enhancing signal clarity.
Wide operational temperature range from 0°C to 70°C for reliable industrial usage. Manufactured in Malaysia with new product condition assurance. Explore the extensive range of Operational Amplifiers at EnvMart for various electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TL072ACP is 3 MHz.
It operates on a wide supply voltage range from 5V to 15V (±5 to ±15V).
The maximum operating temperature for this operational amplifier is 70°C.
This model features dual channels, making it a dual-channel operational amplifier.
The dimensions are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The slew rate of this operational amplifier is 13 V/μs, allowing for fast signal response.
The input offset voltage of the TL072ACP is 7.5 mV, which helps minimize signal distortion.
The typical noise level is 18 nV/√Hz at 1 kHz, enhancing signal clarity.
This operational amplifier is designed for through-hole mounting applications.
The input bias current for this model is 7 nA, which is low, making it suitable for precision applications.
The TL072ACP is manufactured in Malaysia.
This operational amplifier is widely used in industrial instrumentation, audio processing, laboratory equipment, and signal conditioning circuits.
