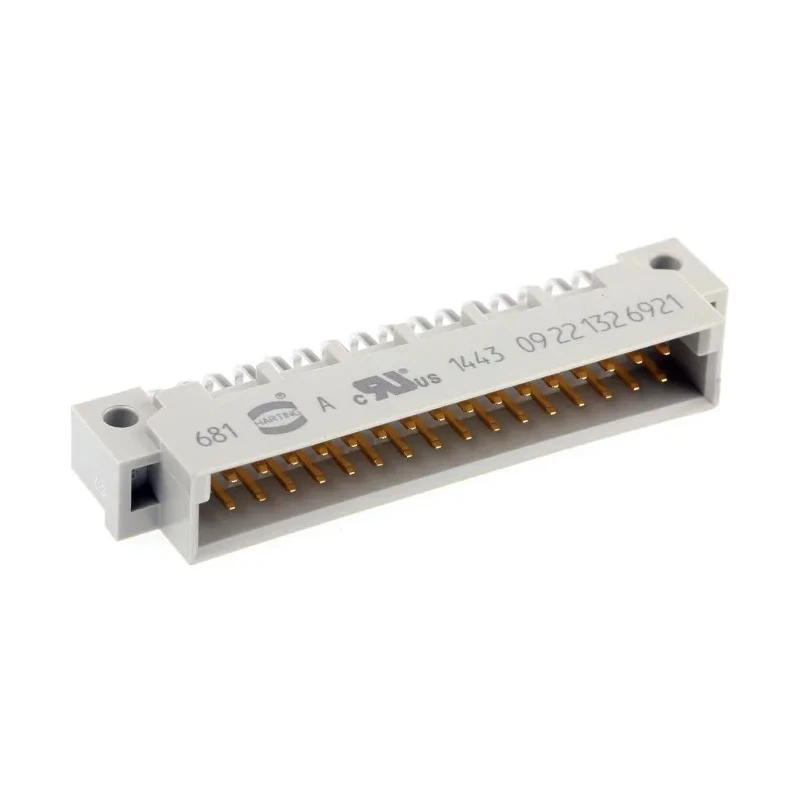

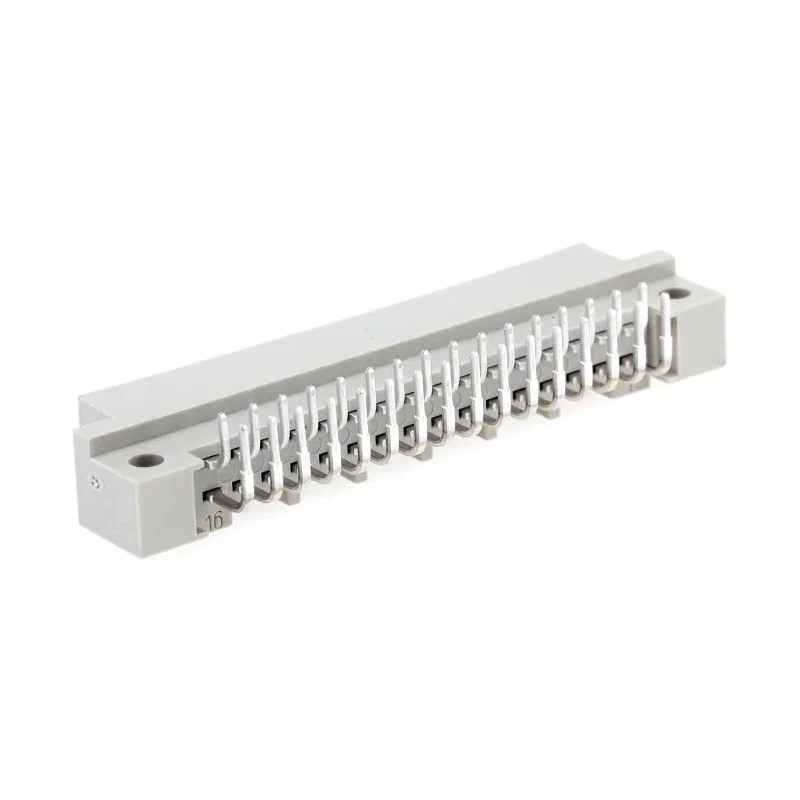

HARTING DIN 41612 32 Way 2.54 mm Pitch Through Hole Connector Type C/2 Solder Class C2 2 Row Male Right Angle 09221326921
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B |
Key Features
- 32 contacts support up to 2 ampere current per contact.
- Right angle orientation allows compact PCB designs.
- Gold over nickel plating ensures low contact resistance and durability.
- Class C2 solder termination guarantees secure and stable connections.
- Operating temperature ranges from -55°C to +125°C for harsh environments.
- Copper alloy contacts provide excellent conductivity and mechanical strength.
- Housing made of polybutylene terephthalate for high mechanical stability.
- Connector designed with DIN 41612 standard for Eurocard rack systems.
Product Description
HARTING 09221326921 DIN 41612 Connector is a high-quality 32-way, 2.54 mm pitch, through hole mounted male connector with right angle orientation. It uses Type C/2 solder termination class C2, optimized for reliable mating cycles and secure electrical connections in industrial, electronic, and communication applications.
This connector supports currents up to 2 amps per contact and has a robust housing made from polybutylene terephthalate, ensuring strength and durability in demanding environments. The copper alloy contacts are plated with gold over nickel to reduce contact resistance and provide longevity.
The operating temperature range from -55°C to +125°C makes it suitable for a wide variety of applications, including industrial automation, telecommunications, and electronic instrumentation. Its compliance with DIN 41612 standards guarantees compatibility with Eurocard racking systems common in rack-mount electronics.
The right angle and two-row configuration aid in compact PCB designs while maintaining excellent mechanical stability and electrical performance. This connector features Class C2 solder termination, providing reliable solder connections for long-term operational stability.
32 contacts with 2A current rating per contact. Gold over nickel plated copper alloy contacts for optimum conductivity. Polybutylene terephthalate housing for rugged mechanical strength. Operating temperature from -55°C to 125°C suits harsh conditions.
Designed as per DIN 41612 for use in Eurocard rack systems. Right angle 2 row male connector with solder termination Class C2. Contact resistance up to 20 milliohms ensures signal integrity. Through hole mounting type for secure PCB assembly.
This connector is sourced new from Germany and is suitable for industrial electrical, electronic manufacturing, and communication equipment assembly, making it an ideal choice for engineers and technicians requiring durable and standard-compliant DIN 41612 Connectors.
Explore more HARTING connectors and related electronic components on EnvMart to complete your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current rating of 2 amperes per contact.
The operating temperature range is from -55°C to +125°C, making it suitable for harsh environments.
It features Class C2 solder termination, which ensures secure and stable connections.
This model has a total of 32 contacts.
The housing is made from polybutylene terephthalate, providing high mechanical stability.
The contacts are made of copper alloy and are plated with gold over nickel to reduce contact resistance.
The pitch size of this connector is 2.54 mm.
This connector has a right angle orientation, which aids in compact PCB designs.
Yes, it is designed according to the DIN 41612 standard, ensuring compatibility with Eurocard rack systems.
The maximum contact resistance is up to 20 milliohms, ensuring signal integrity.
This model uses a through hole mounting type for secure PCB assembly.
It is suitable for industrial automation, telecommunications, and electronic instrumentation applications.
