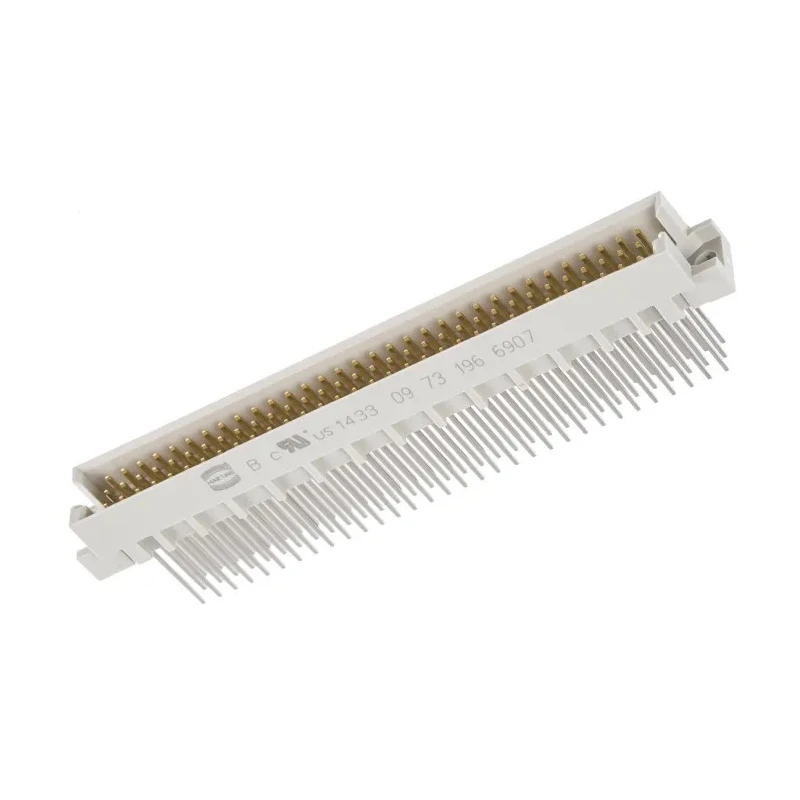

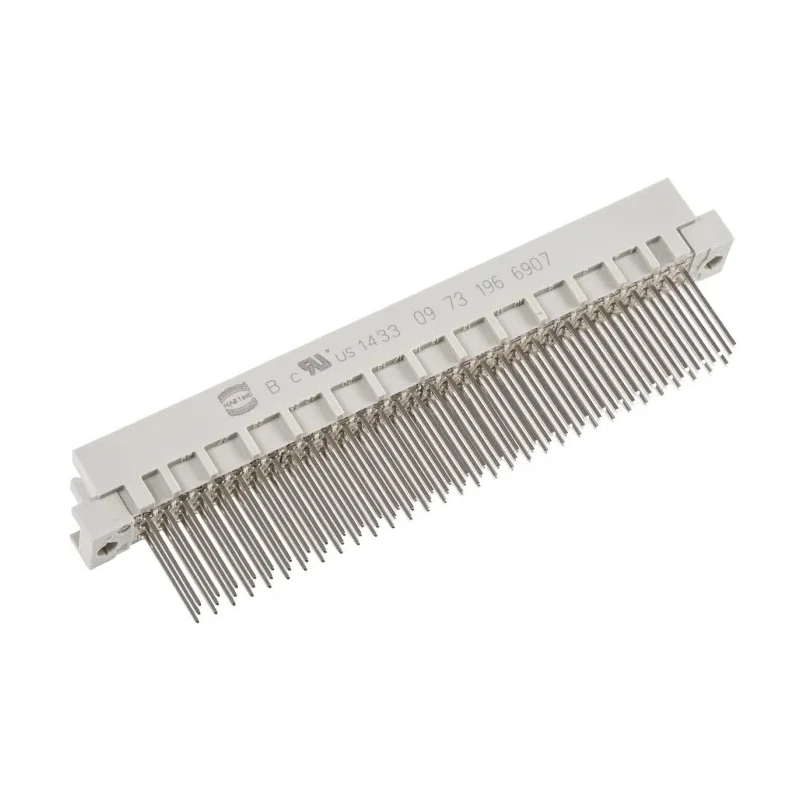

HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/2 Wire Wrap Class C2 3 Row Male Straight 09731966907

Name: HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/2 Wire Wrap Class C2 3 Row Male Straight 09731966907
Brand: HARTING
SKU: 139810



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Wire Wrap
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

Provides 96 electrical contacts for high-density interconnects.
Operating current rating of 2 amperes per contact.
Constructed with gold plated copper alloy contacts for enhanced conductivity and corrosion resistance.
Housing made from durable polybutylene terephthalate material offering thermal stability.
Compatible with wire wrap termination and through hole mounting for reliable PCB integration.
Designed for operation in temperatures ranging from -55°C to 125°C.
Features a straight male connector orientation with 3 rows and A/B/C row loading.
Class C2 contact classification ensures high quality and performance.

Product Description

HARTING 09731966907 DIN 41612 Connector is a high-quality, 96-way electrical connector designed to provide reliable and compact connections in electronic and industrial applications. With a standard 2.54 mm pitch and through hole mounting, it supports wire wrap termination, making it suitable for secure PCB mounting in complex circuits and systems.

This connector features a robust polybutylene terephthalate housing that resists environmental stresses and ensures longevity. The contacts are made from copper alloy plated with gold over nickel, ensuring excellent conductivity and corrosion resistance for critical signal integrity.

Rated for a current of 2A per contact and temperature operations ranging from -55°C to 125°C, this Type C/2 connector with a Class C2 wire wrap specification meets demanding industrial requirements. Its three-row male configuration (A/B/C row loading) with straight orientation facilitates easy integration into backplane and Eurocard racking systems.

The maximum contact resistance is low, at 20 milliohms, promoting efficient electrical performance. The series is compatible with reversed types Q & R connectors, allowing flexibility in design and replacements.

Provides 96 electrical contacts for high-density interconnects. Operating current rating of 2 amperes per contact. Constructed with gold plated copper alloy contacts for enhanced conductivity and corrosion resistance. Housing made from durable polybutylene terephthalate material offering thermal stability.

Compatible with wire wrap termination and through hole mounting for reliable PCB integration. Designed for operation in temperatures ranging from -55°C to 125°C. Features a straight male connector orientation with 3 rows and A/B/C row loading.

Class C2 contact classification ensures high quality and performance. Maximum contact resistance is 20 milliohms ensuring minimal electrical loss. Ideal for backplane and rack connector applications in industrial and electronic systems.

Commonly applied in industrial devices, laboratory test equipment, electronic manufacturing, and communication infrastructure, this connector offers dependable performance for various electronic assemblies.
