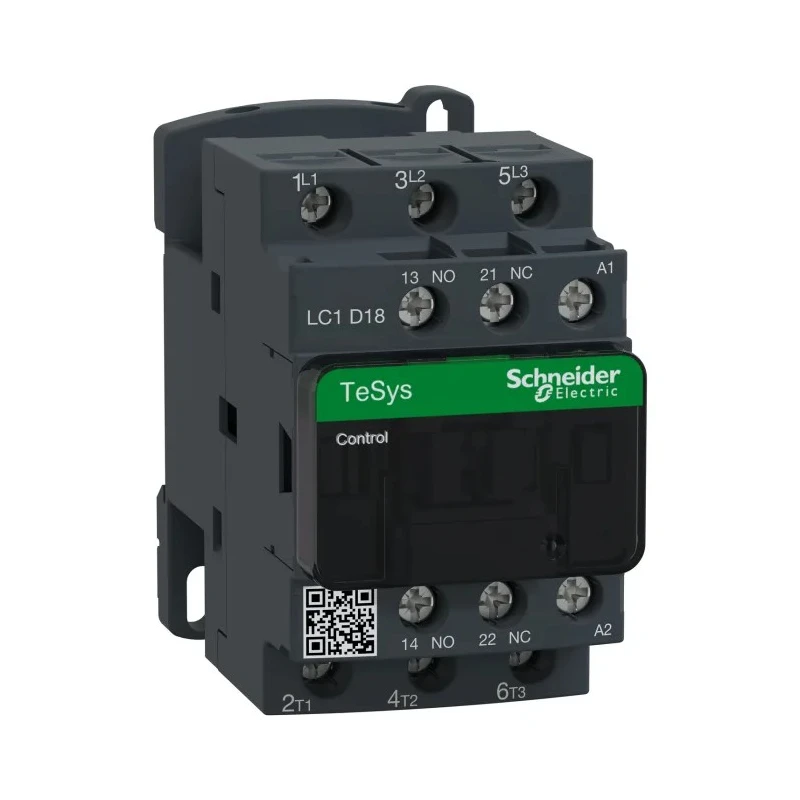

Schneider Electric TeSyS D Contactor, 3-Pole, 18 A, 7.5 kW 400V AC Coil, 3 NO, 690V AC LC1D18V7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D18V7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | Plate, Rail Mount |
| Series | TeSys D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, UL, CSA, EAC, IEC, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 400V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 400V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| 3 pole contactor,9kW 18A 415Vac coilBrand | Telemecanique |
Key Features
- Supports moderate motor loads with 18A operational current rating.
- 400V AC coil voltage ensures compatibility with standard control supplies.
- 3 NO main contacts provide three-phase switching without adapters.
- Includes 1 NO and 1 NC auxiliary contacts for control and signalling integration.
- Screw clamp terminals offer secure and robust conductor connections.
- Compact design suitable for DIN-rail or plate mounting in industrial electrical installations.
- Rated for AC-3 and AC-3e utilisation categories, suitable for industrial voltages up to 690V AC contact voltage.
- Thermal endurance rated for 1.65 million cycles, mechanical durability up to 15 million cycles.
Product Description
Schneider Electric LC1D18V7 TeSyS D Contactor is a robust three-pole switching device designed primarily for motor control and resistive load switching in industrial electrical systems. Featuring an 18 A contact current, it supports moderate power loads and is driven by a 400V AC coil ensuring wide compatibility with common industrial control voltages.
This contactor offers three main normally open contacts (3 NO) for seamless three-phase switching and includes auxiliary contacts (1 NO/1 NC) to enable advanced control and signalling capabilities. It is engineered for use in AC-3 and AC-3e utilization categories, accommodating industrial voltages up to 690V AC contact voltage and a power rating of 7.5 kW at 380 to 400V AC.
The device features screw clamp terminals for secure conductor connections and supports cable sizes from 1.5 to 6 mm² for power lines and 1 to 4 mm² for control circuits. Its compact format with dimensions 77 mm length, 45 mm width, and 86 mm depth allows mounting on DIN-rail or panels via plate mounts, optimizing space within automation panels.
Schneider Electric ensures reliability through rigorous standards adherence with CCC, UL, CSA, EAC, IEC, and RoHS certifications. The contactor is rated for an ambient operating temperature range of -40°C to 60°C and an IP20 protection rating, suitable for many indoor industrial applications.
It achieves long operational life with electrical endurance rated at 1.65 million mechanical cycles, while mechanical durability extends to 15 million cycles. This makes it an ideal solution for industrial environments requiring frequent switching reliability.
Application areas include three-phase motor starters in automation panels, resistive load switching, and replacements for compact contactors on rails or plates. The compact design suits control systems requiring efficient space use, making it an essential component for industrial motor control and automation setups.
Supports motor control and resistive load switching for industrial installations. Compact installation with plate and rail mount options. High electrical and mechanical endurance for long service life. Compliant with multiple global standards for safety and environmental performance.
Auxiliary contacts enhance control and signalling flexibility. Explore more Contactors and related industrial automation components at EnvMart for reliable performance and industry-grade quality solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational current rating of this model is 18A, suitable for moderate motor loads.
It operates at a coil voltage of 400V AC, ensuring compatibility with standard control supplies.
This contactor features three normally open (3 NO) main contacts for three-phase switching.
The maximum contact voltage it can handle is 690V AC, accommodating various industrial applications.
The dimensions of this model are 77 mm in length, 45 mm in width, and 86 mm in depth.
It uses screw clamp terminals, which provide secure and robust connections for conductors.
The rated power for this model is 7.5 kW at 380 to 400V AC.
The ambient operating temperature range is from -40°C to 60°C, suitable for various industrial environments.
This contactor includes 1 normally open (1 NO) and 1 normally closed (1 NC) auxiliary contact for control and signalling integration.
It complies with several standards including CCC, UL, CSA, EAC, IEC, and RoHS, ensuring safety and environmental performance.
This model can be mounted on DIN-rail or via plate mounts, providing flexibility in installation.
It is suitable for motor control and resistive load switching in industrial installations, particularly in automation panels.
