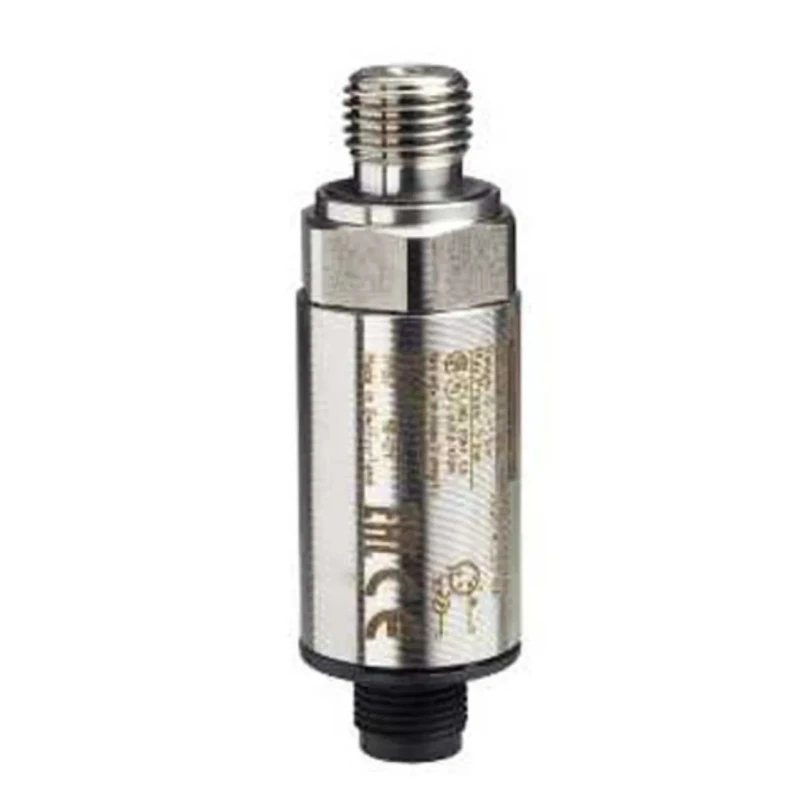

Telemecanique Sensors Electronic Pressure Switch 0 bar to 16 bar, Analogue Output, 24V, IP67/IP66 XMLG016D21
Specifications
| Country of Origin | Switzerland |
|---|---|
| Accuracy | ±0.1 % |
| Brand | Telemecanique Sensors |
| Response time | 2ms |
| Temperature range | - 15 to +85 °C |
| Model | XMLG016D21 |
| IP Rating | IP67, IP66 |
| Mount Type | Screw |
| Housing Material | Aluminium Oxide, Stainless Steel, Ceramic |
| Output type | Analogue |
| Series | XMLG |
| Maximum Operating Temperature | 85°C |
| Enclosure Rating | IP66 |
| Analogue Output | 4 → 20 mA |
| Standards/Approvals | CE, BV, CCC, EAC, CSA, UL, LROS, EN |
| Maximum Pressure Measurement | 16bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 24V |
| Media Measured | Air, Corrosive Fluid, Fresh Water, Hydraulic Oil, Sea Water |
Key Features
- Maximum pressure measurement of 16 bar and minimum of 0 bar for wide range monitoring.
- High accuracy with ±0.1% ensuring reliable readings in industrial applications.
- Features an analogue 4 to 20 mA output for standard signal transmission.
- Constructed with aluminium oxide, stainless steel, and ceramic for durability.
- Suitable for media including air, corrosive fluids, fresh water, hydraulic oil, and sea water.
- Equipped with a screw mount type for secure installation.
- Operating temperature range from - 15°C to +85°C for versatility in environments.
- Fast response time of 2 ms supporting quick system reactions.
Product Description
Telemecanique Sensors XMLG016D21 electronic pressure switch delivers precise pressure sensing for industrial and automation control applications. The electronic sensor utilizes a ceramic measuring cell where pressure-induced deformation alters resistance values in a Wheatstone bridge circuit. Integrated electronics convert this into a reliable analogue output signal ranging from 4 to 20 mA, adaptable for diverse control systems.
With a robust housing of aluminium oxide, stainless steel, and ceramic materials, this pressure switch withstands corrosive fluids, fresh water, air, hydraulic oils, and sea water, making it highly versatile for demanding environments. The device supports operating temperatures between - 15°C and +85°C and offers high protection ratings of IP67 and IP66 to resist ingress of dust and water.
The sensor features a maximum pressure range up to 16 bar and a minimum measurable pressure of 0 bar with an accuracy of ±0.1%, ensuring precise performance critical in automation, hydraulic, and fluid monitoring systems. Mounting is facilitated by a screw type design to ensure secure and stable placement.
Installation applications span industrial automation, HVAC systems, water treatment plants, and other sectors requiring reliable pressure monitoring and switching functions. The fast 2 ms response time allows for timely system adjustments and safety mechanism activations.
Maximum pressure measurement of 16 bar and minimum of 0 bar for broad applicability. High precision with ±0.1% accuracy suitable for critical monitoring tasks. Analogue output of 4 to 20 mA compatible with standard control equipment.
Durable construction using aluminium oxide, stainless steel, and ceramic materials. Wide compatibility with air, corrosive fluids, hydraulic oil, fresh water, and sea water media. Secure screw mount installation for industrial settings.
Operating temperature range between - 15°C to +85°C for versatile environment use. Rapid 2 ms response time for timely pressure detection and switch actuation. Conforms to CE, BV, CCC, EAC, CSA, UL, LROS, and EN standards ensuring quality and safety compliance.
This Telemecanique Sensors pressure switch model XMLG016D21 is manufactured in Switzerland, representing top-tier European engineering quality and reliability for industrial sensor applications. It is designed to provide long service life and consistent performance in challenging conditions.
Explore more precision Pressure Switches and sensors in our catalog suitable for automation and control gear. Enhance your system efficiency and safety with certified and reliable Telemecanique Sensors products available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure measurement of this model is 16 bar.
It has an accuracy of ±0.1%, ensuring reliable readings in various applications.
This unit features an analogue output of 4 to 20 mA, suitable for standard signal transmission.
The operating temperature range is from -15°C to +85°C, making it versatile for different environments.
It is constructed from aluminium oxide, stainless steel, and ceramic, providing durability against various media.
It is suitable for measuring air, corrosive fluids, fresh water, hydraulic oil, and sea water.
The installation is facilitated by a screw mount type, ensuring secure placement.
This model has a fast response time of 2 ms, allowing for quick system reactions.
It has an IP67 and IP66 rating, providing protection against dust and water ingress.
It conforms to several standards including CE, BV, CCC, EAC, CSA, UL, LROS, and EN.
This pressure switch is manufactured in Switzerland, reflecting high engineering quality.
