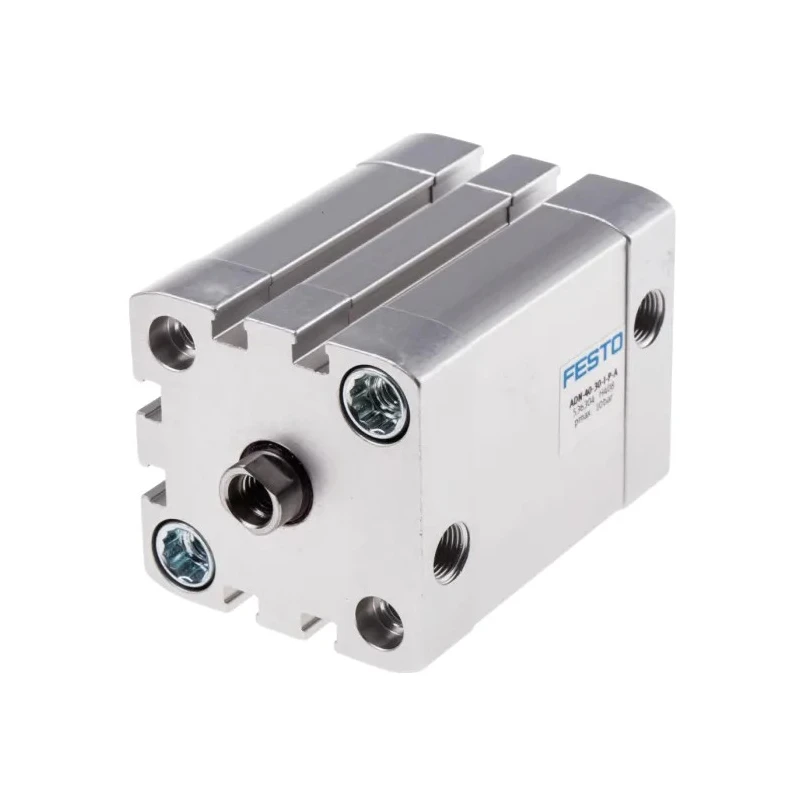

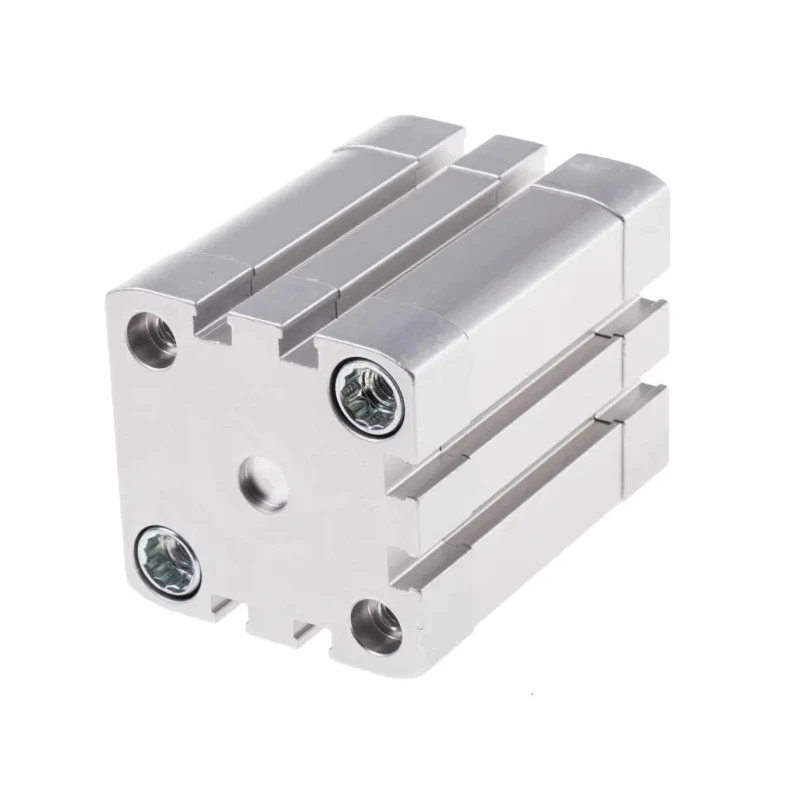

Festo Pneumatic Cylinder ADN Series Double Acting 40mm Bore 30mm Stroke ADN-40-30-I-P-A

Festo ADN-40-30-I-P-A Pneumatic Cylinder is a compact, double acting actuator with a 40mm bore diameter and a stroke length of 30mm, designed to provide controlled linear motion in industrial applications.

Constructed from high-quality aluminium, the cylinder features a low friction design that supports continuous operation with reduced wear. It incorporates flexible polymer end cushioning that minimizes noise and vibration, thereby extending service life and boosting productivity in manufacturing, automation, and fluid power systems.

The double acting design allows for pneumatic actuation in both advancing and retracting piston movements with dual connection ports. It is equipped with a female single piston rod with a 1/8 inch G thread size, compatible with various mounting and attachment options.

Meeting ISO 21287 standards, this cylinder supports mounting via through holes, making it versatile for both horizontal and vertical installation. Proximity sensor slots enable non-contact piston position detection, enhancing automation and control in pneumatic systems.

Operating conditions range from a minimum temperature of -20°C to a maximum of 80°C, and a maximum operating pressure of 10 bar, making it suitable for a wide variety of industrial environments.

This model is RoHS compliant and manufactured in Germany, ensuring adherence to quality and environmental regulations. Complies with ISO 21287 standard ensuring international quality. Compact aluminium body with low friction design for continuous operation.

Equipped with air cushioning and cushioning rings to reduce noise and vibration. Double acting piston with female single rod and 1/8 in G thread size. Operates safely at pressures up to 10 bar and temperatures from -20°C to 80°C.

Features slots for proximity sensor mounting for contactless position detection. Through hole mount type suitable for flexible installation orientations. Dimensions: Length 81.1mm, Width and Height 54.5mm each. Certified compliant with RoHS and manufactured in Germany.

This pneumatic cylinder is ideal for use in industrial automation, mechanical manufacturing, laboratory equipment, water treatment systems, and other fluid power applications. Its compact design makes it especially suitable for confined spaces where productive efficiency is key.
