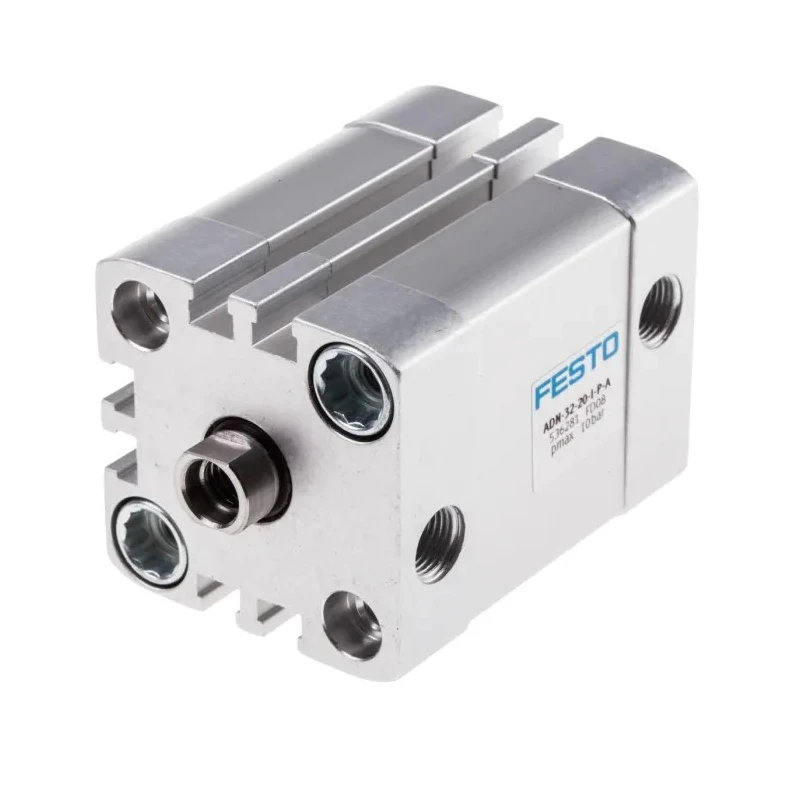

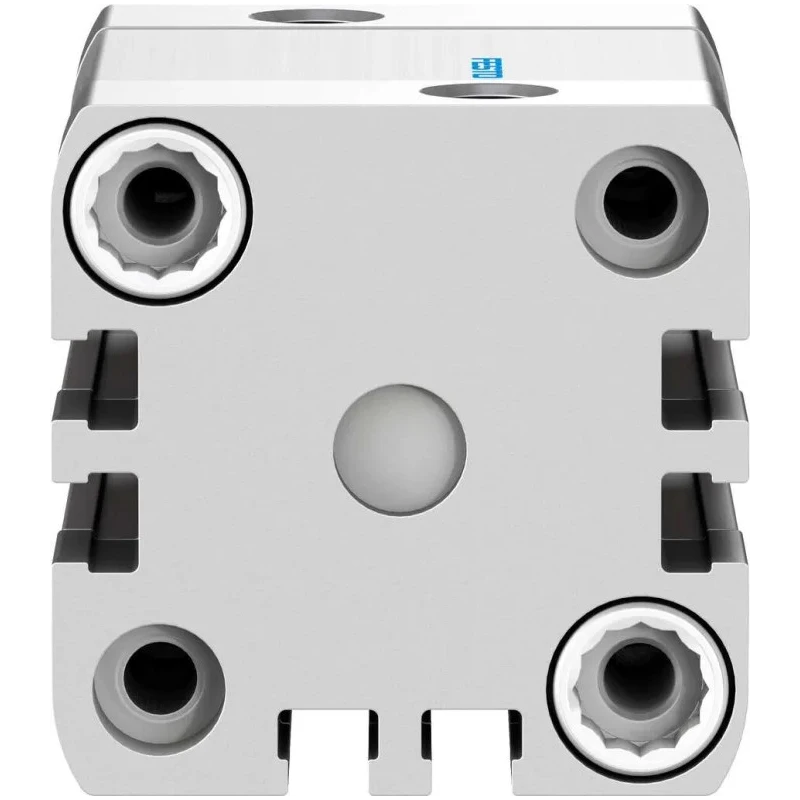

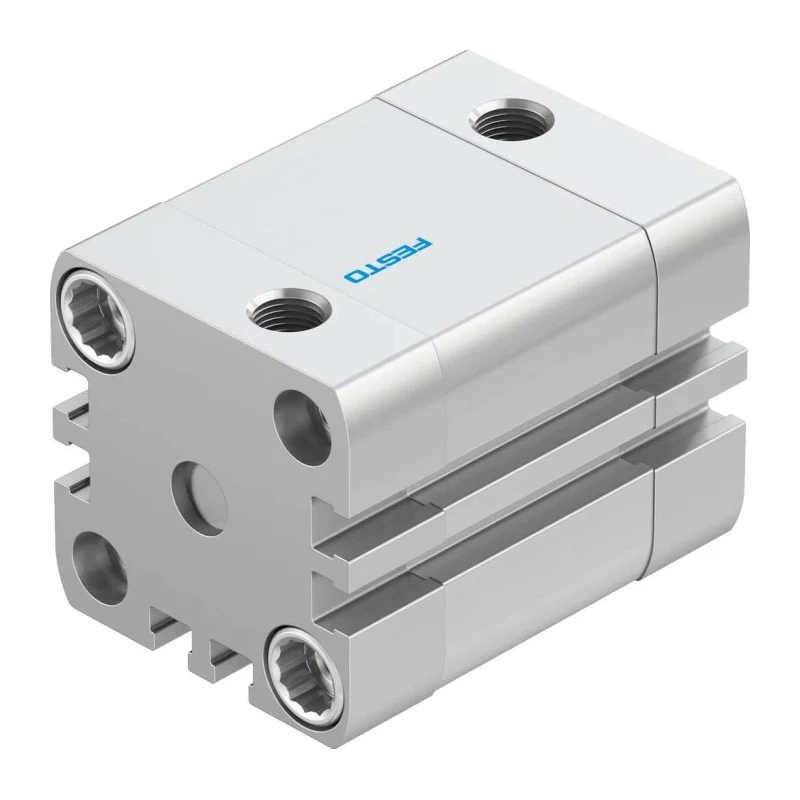

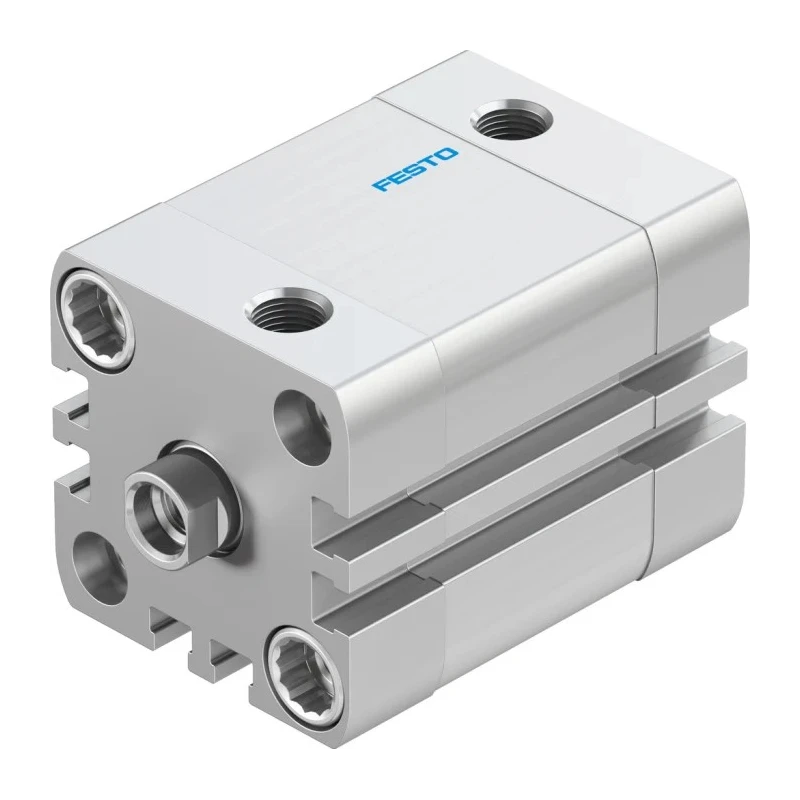

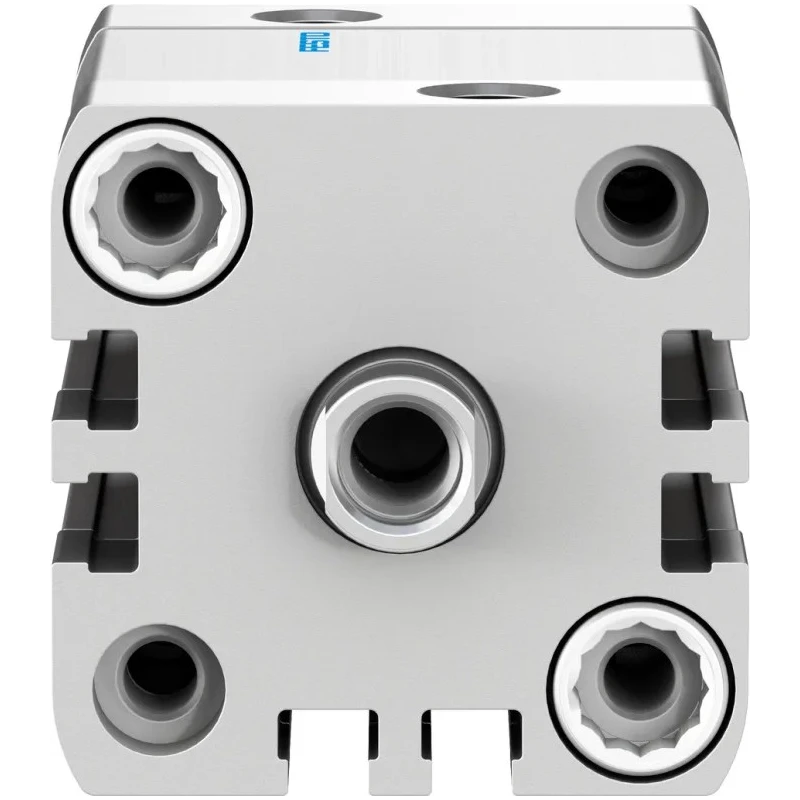

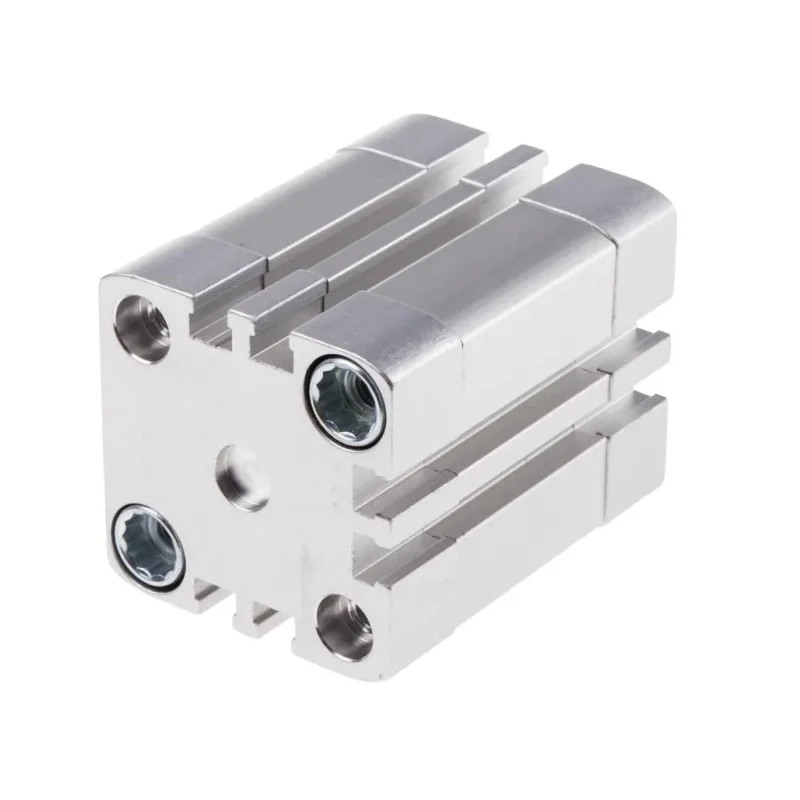

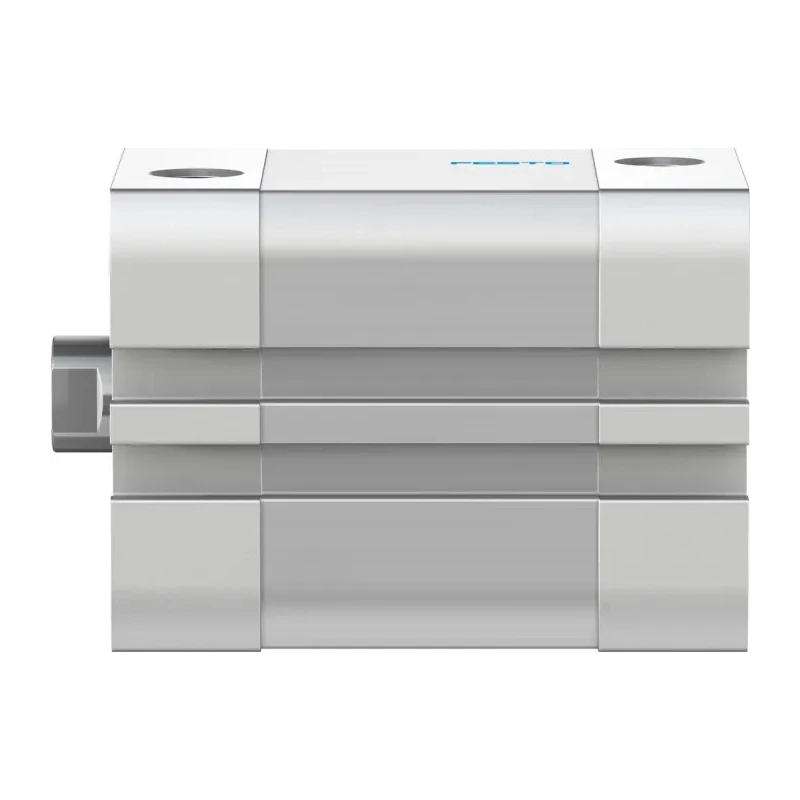

Festo Aluminium Pneumatic Cylinder ADN Series 32mm Bore 20mm Stroke Double Acting Flexible Cushioning ADN-32-20-I-P-A

Category Pneumatic Cylinder Brand FESTO Condition New

Specifications

Country of Origin Germany
Brand Festo
Body Material Aluminium
Maximum Operating Pressure 10 bar
Height 47mm
Length 70mm
Model ADN-32-20-I-P-A
Width 47mm
Mount Type Through Hole
Series ADN
Maximum Operating Temperature 80°C
Minimum Operating Temperature -20°C
Stroke Length 20mm
Bore Diameter 32mm
Rod Type Single
Action Type Double Acting
Standards/Approvals ISO 21287, RoHS
Cushioning Type Flexible Cushioning
Piston Rod Gender Female
Piston Rod Thread Size 1/8 in G

Key Features

  • Operates reliably within a pressure range of 0.6 to 10 bar.
  • Compact design with a 70mm length fits limited-space systems.
  • Aluminium alloy barrel provides corrosion resistance in damp environments.
  • Non-adjustable double-ended cushioning saves installation time and prevents malfunctions.
  • Supports operating temperatures from -20°C to 80°C for durable performance.
  • Equipped with slots for flush-mounting proximity sensors enabling contactless operation.
  • Compatible M8 piston rod thread ensures wide fitting options.
  • Single rod type with female piston rod gender for standard configurations.

Product Description

Festo ADN-32-20-I-P-A Pneumatic Cylinder is a robust aluminium double acting actuator designed for precise linear motion control in industrial automation. Featuring a 32mm bore and 20mm stroke length, it delivers efficient operation in pneumatic piston rod cylinder applications requiring compact installation dimensions.

The unit supports a wide operating pressure range between 0.6 and 10 bar, facilitating versatility across varied pneumatic systems. It incorporates flexible TPE-U(PUR) cushioning seals for airtight and reliable performance, and its aluminium alloy body resists corrosion in humid or damp work environments.

This cylinder’s 70mm overall length and 47mm width and height make it suitable for automated assembly, packaging lines, vehicle manufacturing, and medical imaging installations. The double acting mechanism uses compressed air on both ends to generate thrust and retraction forces with spot-on accuracy, improving process efficiency.

Installation is simplified by its through-hole mount type and the inclusion of slots to flush-mount proximity sensors, enabling contactless position sensing. Its cushioning is non-adjustable double-ended, reducing setup time and avoiding common adjustment errors.

Operating temperature ranges from -20°C to +80°C allow reliable function in demanding environments. The piston rod uses a single rod type with female thread size of 1/8 in G and an M8 thread for secure standard fittings.

Operates under flexible cushioning ensuring long service life. Compact size aids integration into space-constrained equipment. Robust aluminium barrel withstands industrial conditions. Suitable for automated manufacturing and packaging processes.

Easy to install with non-adjustable cushioning design. Ready for sensor integration via proximity sensor slots. Meets ISO 21287 and RoHS standards for quality and compliance.

Choose this Festo ADN Series pneumatic cylinder for dependable, precise linear actuation suitable for industrial, manufacturing, HVAC, and medical applications. Explore additional Pneumatic Cylinder and actuator options in EnvMart’s comprehensive catalog.

Festo Aluminium Pneumatic Cylinder ADN Series 32mm Bore 20mm Stroke Double Acting Flexible Cushioning ADN-32-20-I-P-A
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The bore diameter of this model is 32mm.

This pneumatic cylinder has a stroke length of 20mm.

It operates at a maximum pressure of 10 bar.

The overall dimensions are 70mm in length, 47mm in height, and 47mm in width.

It supports operating temperatures from -20°C to +80°C.

It features flexible cushioning for improved performance and reliability.

This unit has a single rod type with a female piston rod thread size of 1/8 in G.

It uses a through-hole mount type for installation.

It meets ISO 21287 and RoHS standards for quality and compliance.

It is suitable for automated assembly, packaging lines, vehicle manufacturing, and medical imaging installations.

Yes, it is equipped with slots for flush-mounting proximity sensors for contactless operation.

The body is made from aluminium, providing corrosion resistance in damp environments.
