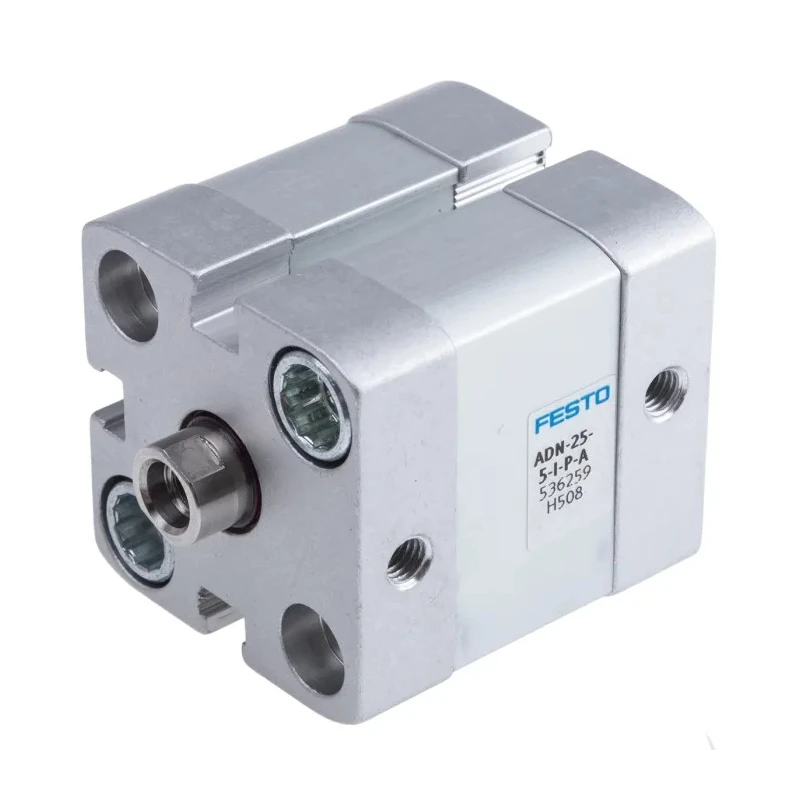

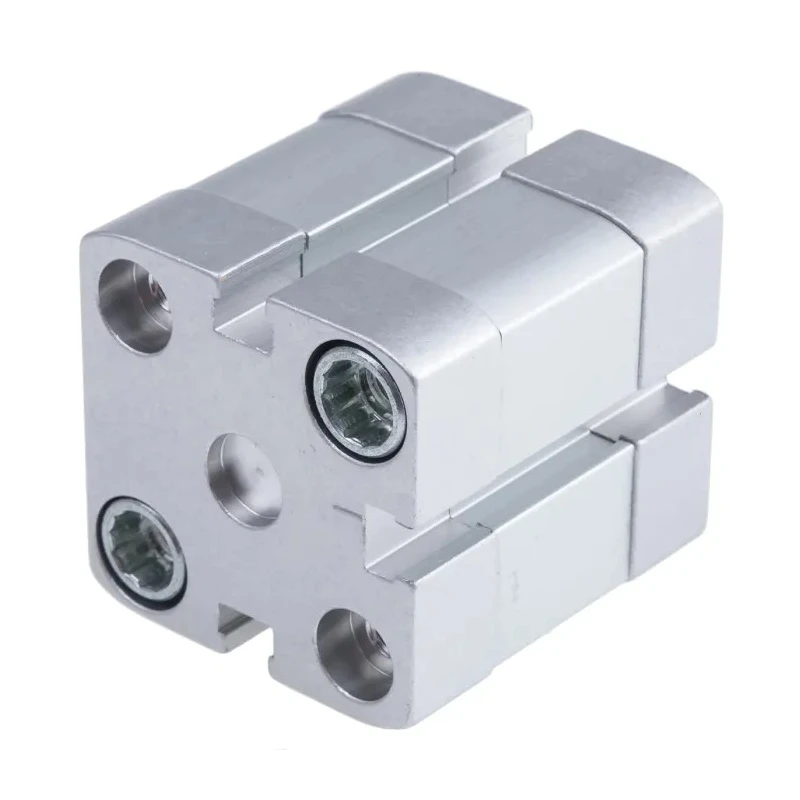

Festo ADN Series Pneumatic Cylinder 25mm Bore, 5mm Stroke, Double Acting, Aluminium Body, ISO 21287 Compliant ADN-25-5-I-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 39.5mm |
| Length | 49.5mm |
| Model | ADN-25-5-I-P-A |
| Width | 39.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 5mm |
| Bore Diameter | 25mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Female |
| Piston Rod Thread Size | M5 |
Key Features
- Compact and space-saving design up to 50% smaller than standard cylinders.
- Double acting operation with air ports for advancing and retracting the piston rod.
- High-quality aluminium body ensuring durability and lightweight.
- ISO 21287 compliant for standardized mounting and interchangeability.
- Operating temperature range from -20°C to 80°C for versatile environments.
- Equipped with flexible polymer end cushioning to reduce noise and vibration.
- Magnetic piston rod for contactless position detection with optional sensors.
- Suitable for horizontal or vertical mounting with various optional accessories.
Product Description
Festo ADN-25-5-I-P-A Pneumatic Cylinder features a compact, lightweight aluminium body with a 25mm bore diameter and a 5mm stroke length. This double acting cylinder operates with pneumatic air pressure applied alternatively to advance and retract the single-rod piston, providing precise linear motion for industrial automation tasks.
Compliant with ISO 21287 standards, the ADN series cylinders offer reliable mounting compatibility and are engineered for use in confined spaces where traditional cylinders would be too large. The flexible polymer cushioning rings reduce impact noise and vibration, thus prolonging service life and improving productivity.
The aluminium body construction offers an optimal balance between strength and reduced weight, allowing for easy integration into various mechanical systems. The operating temperature range of -20°C to 80°C enables use in a broad range of industrial environments.
The piston rod is female threaded M5 type and fitted for a single rod application. The magnetic piston rod supports proximity sensors allowing for position sensing without physical contact, enhancing operational safety and precision.
The cylinder’s design allows for versatile mounting options such as through-hole fixing, foot mounting, or swivel brackets depending on the application requirements. Compact and space-saving design up to 50% smaller than standard cylinders.
Double acting operation with air ports for both extension and retraction. Robust aluminium body with lightweight advantages. Flexible cushioning to reduce noise and vibration. ISO 21287 compliant for industry-standard mounting and interchangeability.
Wide operating temperature range from -20°C to 80°C. Magnetic piston rod enabling contactless position detection. Single rod with female M5 threading for versatile connectivity.
This high-performance pneumatic actuator is ideal for industrial automation, manufacturing lines, packaging equipment, and other pneumatic control applications requiring compact and efficient linear motion. Explore more Festo pneumatic solutions at EnvMart for reliable and precise fluid power control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this pneumatic cylinder is 25mm.
The stroke length of the Festo ADN-25-5-I-P-A is 5mm.
The maximum operating pressure for this model is 10 bar.
The operating temperature range for this cylinder is from -20°C to 80°C.
This model supports through hole mounting.
The body of the Festo ADN-25-5-I-P-A is made from aluminium.
Yes, it is equipped with air cushioning and cushioning rings to reduce noise and vibration.
The piston rod is female and has an M5 thread size.
Yes, it is compliant with ISO 21287 and RoHS standards.
This cylinder operates as a double acting actuator.
The height and width of the Festo ADN-25-5-I-P-A are both 39.5mm.
This model is suitable for industrial automation, manufacturing lines, and packaging equipment requiring efficient linear motion.
