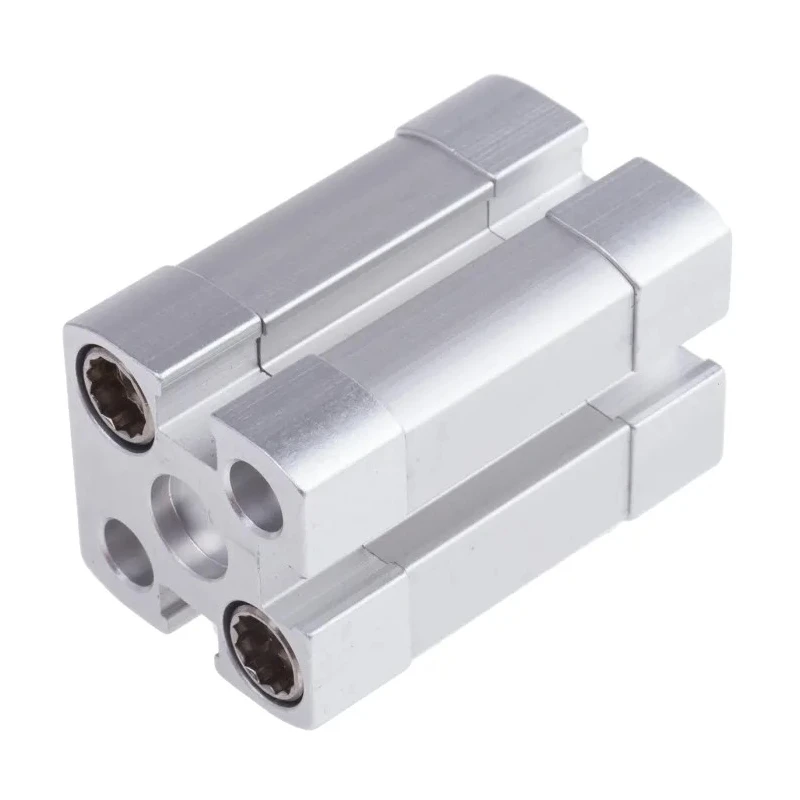

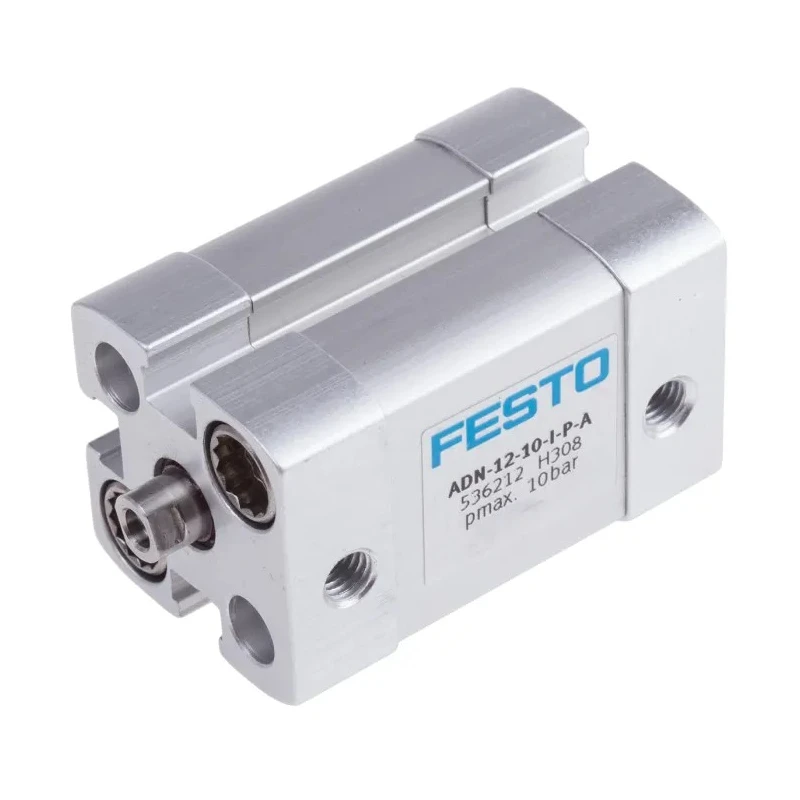

Festo Compact Aluminium Pneumatic Cylinder ADN Series Double Acting 12mm Bore 10mm Stroke ADN-12-10-I-P-A

Festo ADN-12-10-I-P-A Pneumatic Cylinder is a high-performance compact pneumatic actuator designed for industrial automation, manufacturing, and fluid power systems. Featuring a 12mm bore and 10mm stroke, this double acting cylinder provides reliable linear actuation with air applied on both sides of the piston for extension and retraction. Constructed from lightweight aluminium, it offers an optimal balance between strength and weight, making it ideal for applications requiring compact and efficient cylinder designs.

The ADN series cylinders are designed to be up to 50% smaller than standard pneumatic cylinders, allowing installation in tight or space-constrained environments without sacrificing performance. They are equipped with air cushioning and cushioning rings that significantly reduce noise and vibrations during operation, thereby enhancing service life and productivity. The presence of slots along the cylinder body enables the mounting of proximity sensors for contactless piston position detection, enabling precise control and feedback integration in automation systems.

The cylinder utilizes a through hole mounting type, providing flexibility in installation orientation such as horizontal or vertical setups. It supports operation under temperatures ranging from -20°C to 80°C and withstands maximum operating pressures up to 10 bar, suitable for varied industrial conditions. The single rod type has a female piston rod thread size of M5 for secure attachments.

Standards compliance includes ISO 21287 and RoHS, ensuring quality, safety, and environmental compatibility. Applications for this pneumatic cylinder include manufacturing automation, packaging machinery, process control, and material handling systems in industrial, laboratory, HVAC, and agricultural settings.

The compact design optimizes productivity in confined spaces. Double acting functionality provides efficient bidirectional motion. Air cushioning minimizes operational noise and mechanical wear. Aluminium body material ensures lightweight durability.

Slots for proximity sensors allow advanced position monitoring. Wide temperature range supports diverse industrial environments. Up to 10 bar maximum operating pressure for robust performance. Versatile through hole mounting offers flexible installation.

ISO 21287 and RoHS certified for quality and environmental compliance.

Choose this Festo ADN series pneumatic cylinder for compact, reliable, and efficient actuation solutions in industrial and commercial pneumatic applications. Explore more Pneumatic Cylinders and accessories at EnvMart for your automation requirements.
