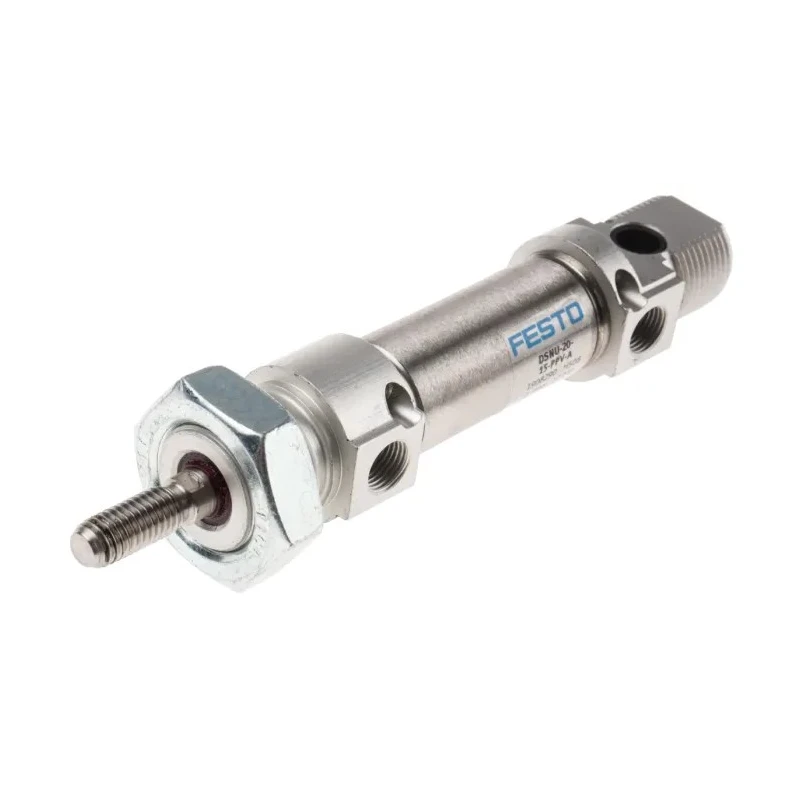

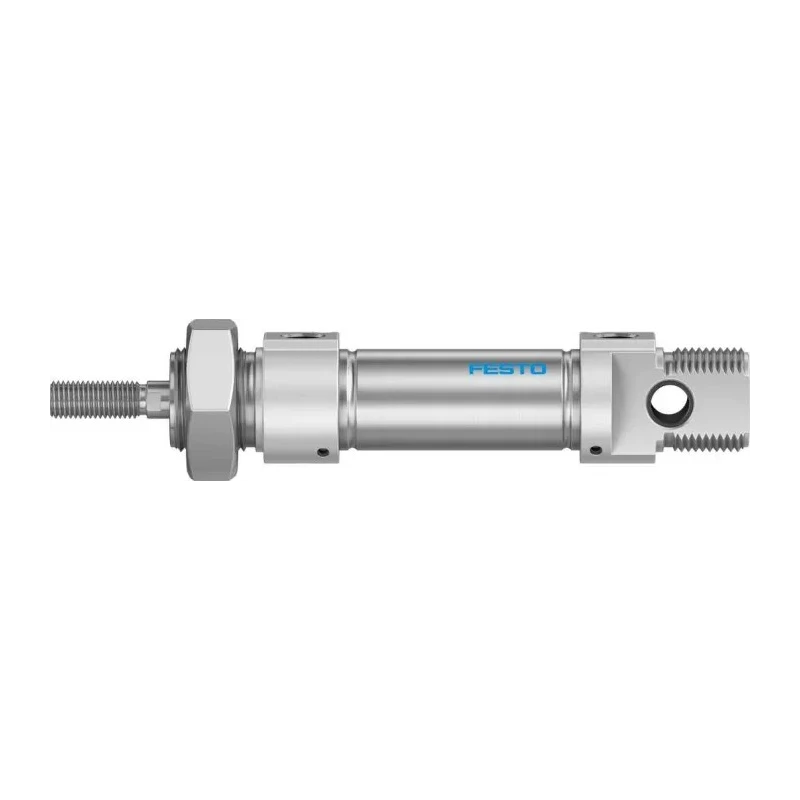

Festo Pneumatic Cylinder DSNU Series 20 mm Bore, 15 mm Stroke, Adjustable Pneumatic Cushioning DSNU-20-15-PPV-A

Festo DSNU-20-15-PPV-A pneumatic cylinder is a precision-engineered actuator featuring a 20 mm bore and 15 mm stroke length. It offers adjustable pneumatic cushioning at both ends to absorb energy efficiently during end positions, enabling smooth and controlled piston movement. This double-acting cylinder operates with compressed air applied to either side, providing reliable linear motion for diverse industrial automation needs.

Manufactured with a stainless steel piston rod and a high alloy steel cylinder barrel, this cylinder is corrosion-resistant, ensuring durability in demanding environments. The design structure consists of a piston, piston rod, and cylinder barrel, constructed to ISO 6432 standards enabling versatile mounting options such as flange, rear, direct, foot, front, and swivel mounts.

Operating at a maximum temperature of 80°C, it includes pneumatic connections compliant with ISO 1179-1 and features an M8 piston rod thread with metric standards. Certifications including CE marking and ATEX approvals verify its compliance with European safety and explosion protection directives, making it suitable for hazardous locations.

The DSNU series pneumatic round cylinders provide long service life with excellent running performance, supported by a 3-component system that ensures smooth operation. Its adjustability in cushioning makes it suitable for applications involving medium to heavy loads and high-speed movements.

Typical industrial applications include manufacturing automation, pneumatic fluid power tools, material handling, laboratory instrumentation, HVAC systems, and other commercial and industrial pneumatic equipment. The cylinder is configured for mounting in any position, enhancing its adaptability across various machinery setups. Optional accessories are available to extend mounting flexibility, including swivel brackets and foot mounts.

This Festo cylinder serves as a reliable and robust solution for pneumatic actuation demands, combining precision mechanical design with versatile mounting and compliance with important international standards.

Equipped with a 20 mm piston diameter and 15 mm stroke length. Double-acting pneumatic cylinder with adjustable cushioning at both ends. Corrosion-resistant stainless steel piston rod and high alloy steel barrel. Multiple mounting options compliant with ISO 6432 for versatile installation.

CE and ATEX certified for industrial safety and explosion protection. Maximum operating temperature of 80°C for robust performance. Ideal for automation, manufacturing, HVAC, and laboratory applications. Long service life with smooth running performance.
