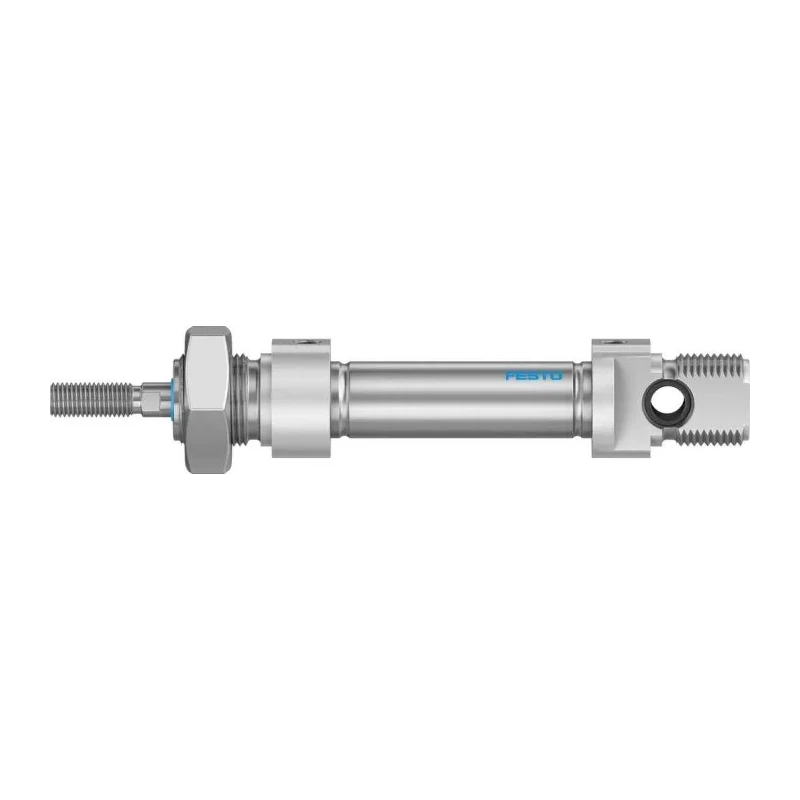

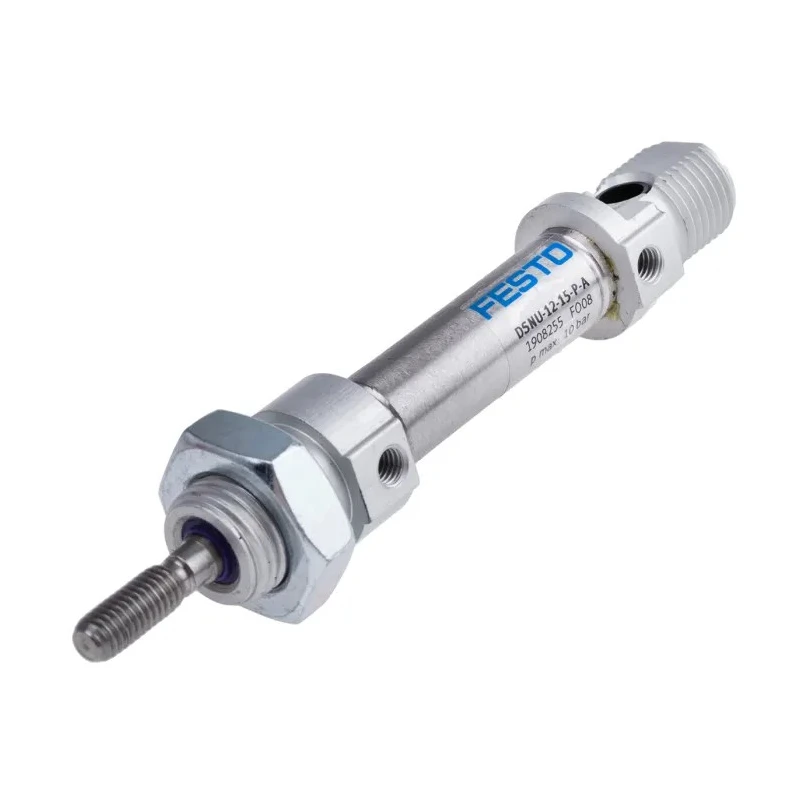

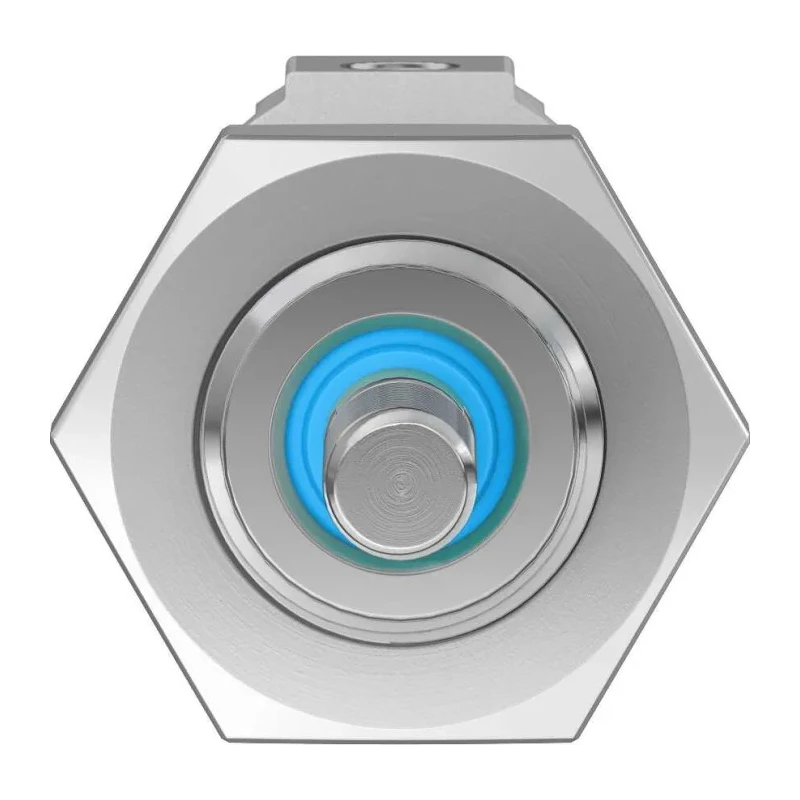

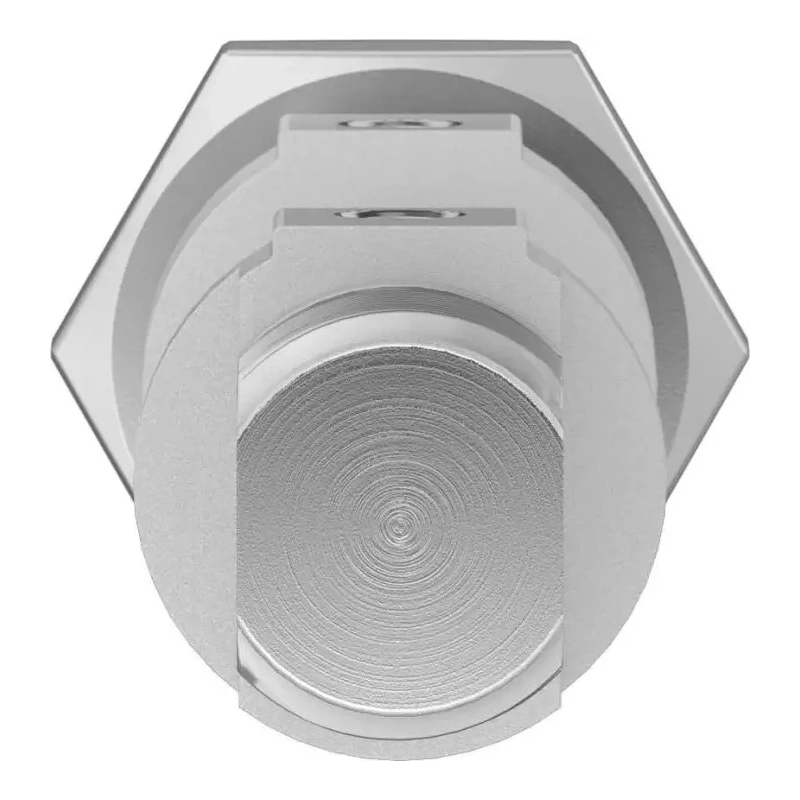

Festo Pneumatic Cylinder 12 mm Bore, 15 mm Stroke, Elastomer Cushioning, Flange and Foot Mount, DSNU-12-15-P-A

Festo DSNU-12-15-P-A pneumatic cylinder is a high-quality double acting actuator designed for industrial, laboratory, HVAC, manufacturing, and automation applications. Featuring a 12 mm piston diameter and 15 mm stroke length, this cylinder provides reliable and precise linear motion within a compact 120 mm overall length.

The cylinder barrel and piston rod are constructed from high alloy steel, offering outstanding resistance to corrosion and wear. The design includes flexible elastomer cushioning rings integrated into the main piston, which efficiently absorb energy at end positions, making it ideal for small loads and low speed applications.

Conforming to ISO 6432 mounting dimensions, the DSNU-12-15-P-A can be mounted in any orientation using flange, swivel, direct, front, foot, or rear mounting types, allowing installation versatility to suit various industrial setups. Its M6 male piston rod thread and metric standard thread ensure compatibility with a wide range of accessories.

The cylinder meets international safety and quality standards including ATEX II 2GD for explosion protection, ISO 1179-1, ISO 6432, ISO 228-1, and Germanischer Lloyd certification. It is rated for a maximum operating temperature of 80°C, making it suitable for demanding environments.

The double acting mechanism uses compressed air to advance and retract the piston rod, providing linear force in both directions. This makes the DSNU series pneumatic roundline cylinders a core product for air-driven automation, fluid power systems, and precision motion control in manufacturing processes.

The cylinder features a high alloy steel piston rod and barrel for corrosion resistance. Designed to ISO 6432 standard with flexible cushioning rings at both ends for smooth operation. Can be mounted in any position with multiple flange and foot mount options.

Suitable for applications requiring precise linear motion and durability at temperatures up to 80°C. Conforms to ATEX II 2GD and several international standards ensuring safety and compatibility. Offers a compact length of 120 mm, ideal for small load and low speed industrial uses.

The elastomer cushioning absorbs energy directly, providing long service life and reliability.

The Festo DSNU-12-15-P-A pneumatic cylinder is a dependable choice for industries requiring efficient pneumatic actuation, including manufacturing, automation, HVAC, water treatment, and laboratory equipment. Its versatile mounting capability and robust design allow for wide industrial adaptability.
