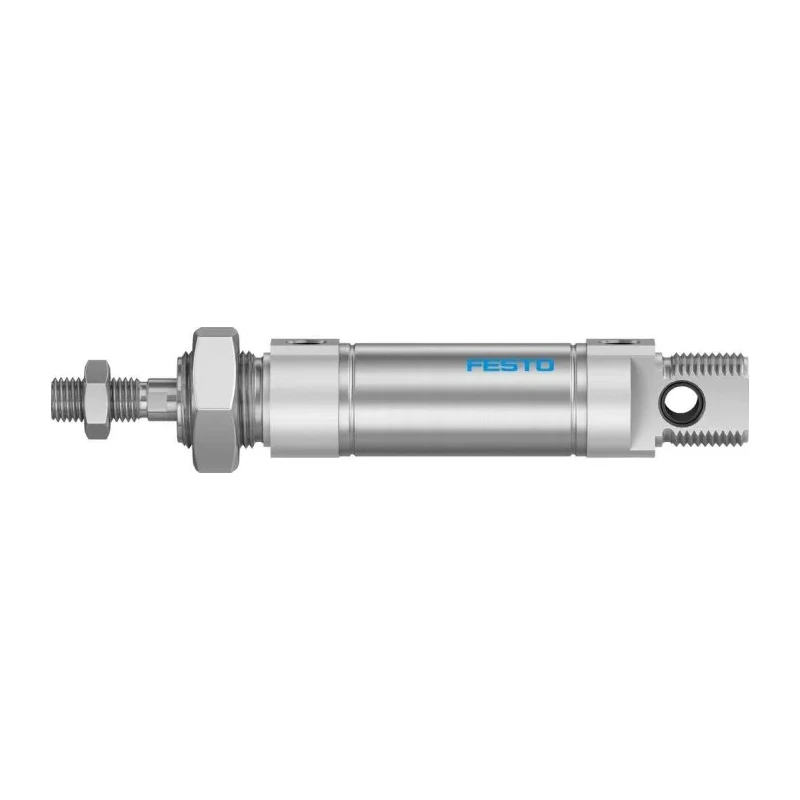

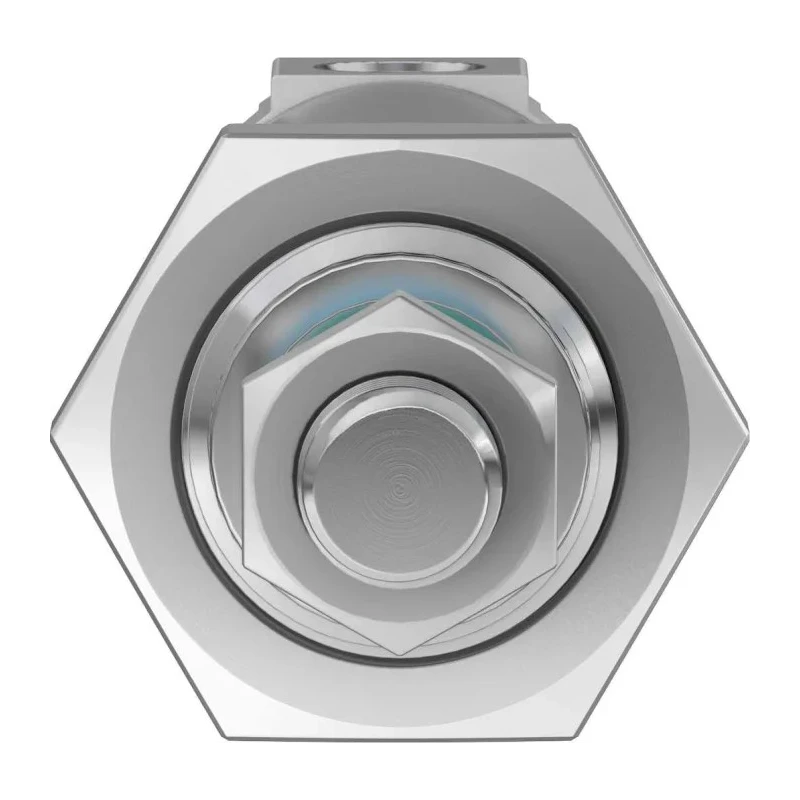

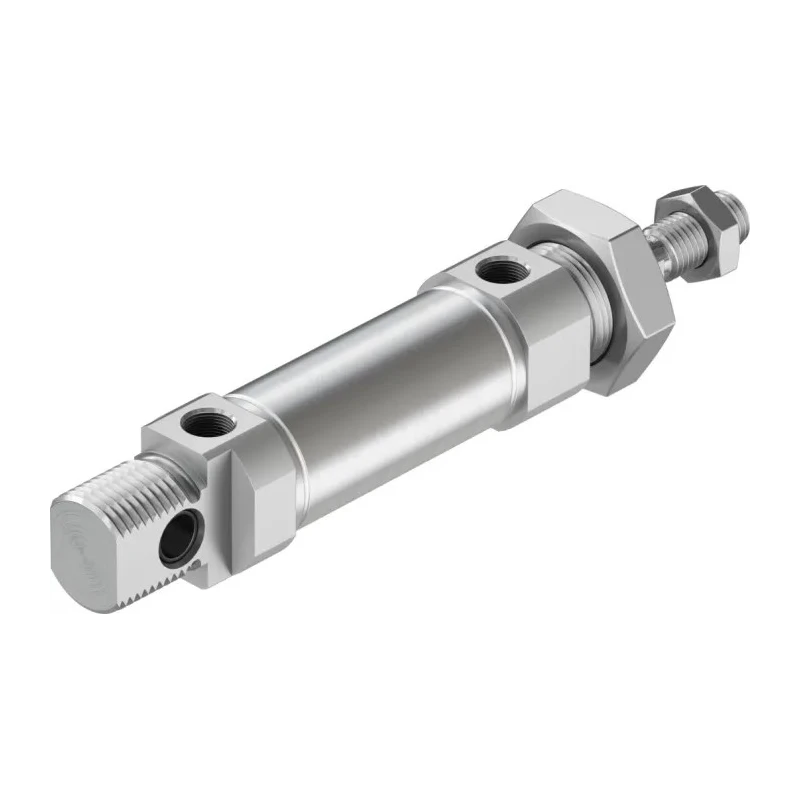

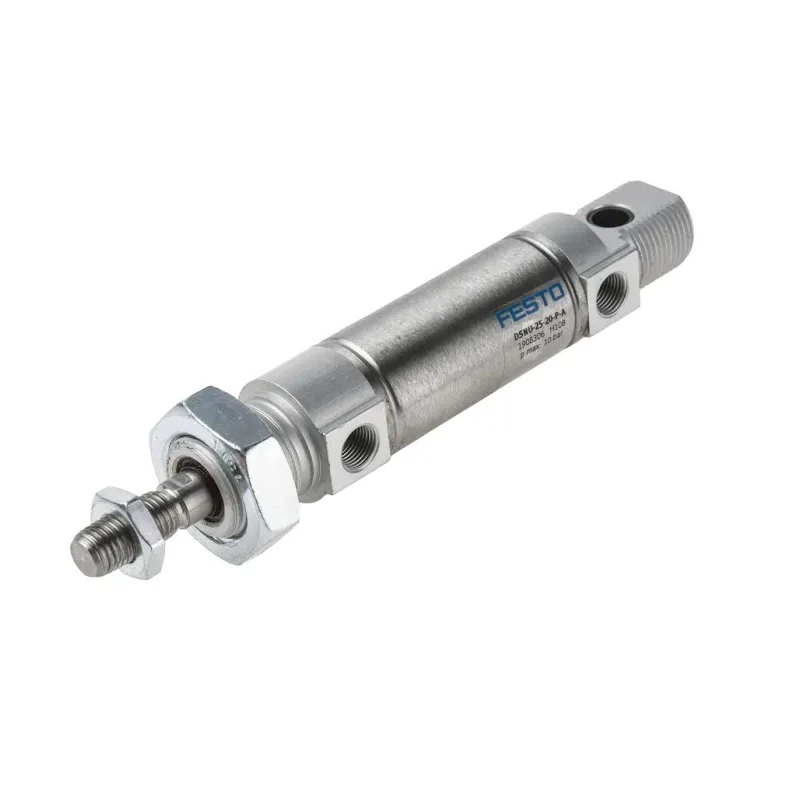

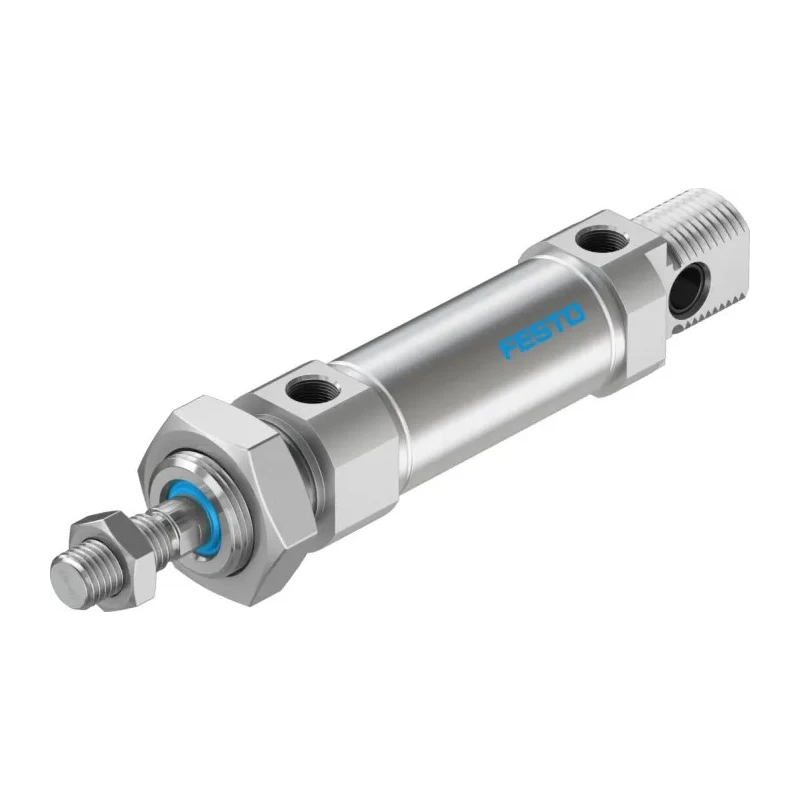

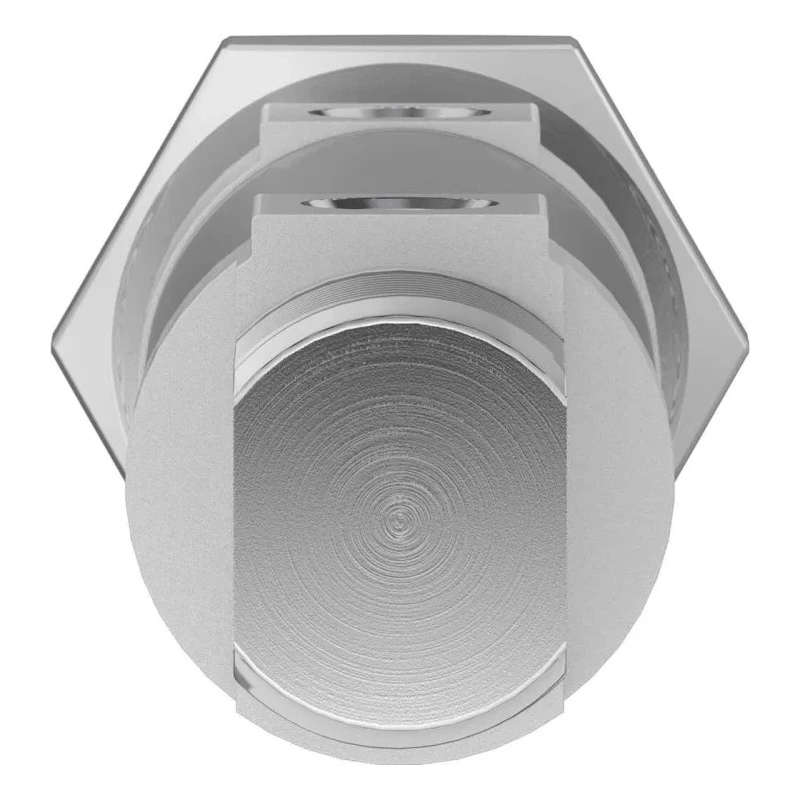

Festo Pneumatic Cylinder Double Acting Aluminium Body 20mm Stroke Length 161.5mm Length 80°C Max Operating DSNU-25-20-P-A

Festo DSNU-25-20-P-A pneumatic cylinder is a double-acting actuator designed to provide controlled and reliable linear motion in automated industrial applications. Featuring a 20mm stroke length and total length of 161.5mm, this cylinder is engineered with an aluminium body that offers a lightweight yet durable structure suitable for diverse manufacturing and pneumatic control systems.

The double-acting design allows force to be exerted in both extension and retraction, making it suitable for push and pull operations in various automation tasks. Elastic cushioning rings and plates incorporated at stroke ends effectively absorb impact energy, reducing shock loads on seals and bearings, which enhances cycle life even under continuous operation.

The piston rod is male-threaded with a 1/8 inch G size to securely mount accessories or tooling. This pneumatic cylinder complies with ISO 6432 bore and mounting dimensions, allowing direct replacement or integration into systems built around this widely accepted standard. Compliance with CETOP RP 52 P guidelines further facilitates integration with hydraulic and pneumatic components adhering to these industrial interface specifications.

Designed for operational temperatures up to 80°C, this cylinder can withstand elevated ambient conditions common in industrial processing environments. Its aluminium construction also offers inherent resistance to corrosion compared to heavier ferrous materials, enhancing longevity.

Typical applications include pick-and-place modules in assembly lines, compact pneumatic actuators in confined spaces, valve actuation requiring ISO 6432 footprint compatibility, and end-stop damping in repetitive motion machinery.

Double-acting operation enables push and pull force control for versatile applications. Aluminium body construction reduces weight while ensuring corrosion resistance. Elastic cushioning rings absorb shock to extend service life and reduce impact forces.

Male piston rod with 1/8 inch G thread provides secure attachments for fittings. Complies with ISO 6432 mounting standards for easy interchangeability. Rated for maximum operating temperatures up to 80°C for elevated-temperature environments.

Meets CETOP RP 52 P and RoHS standards to ensure quality and environmental compliance. Ideal for use in pick-and-place automation, valve actuation, and confined-space pneumatic systems.

Festo Pneumatic Cylinders are widely respected in industrial automation for delivering reliable and precise motion control. Explore the comprehensive range of pneumatic components at EnvMart to find compatible actuators and accessories supporting your manufacturing needs.
