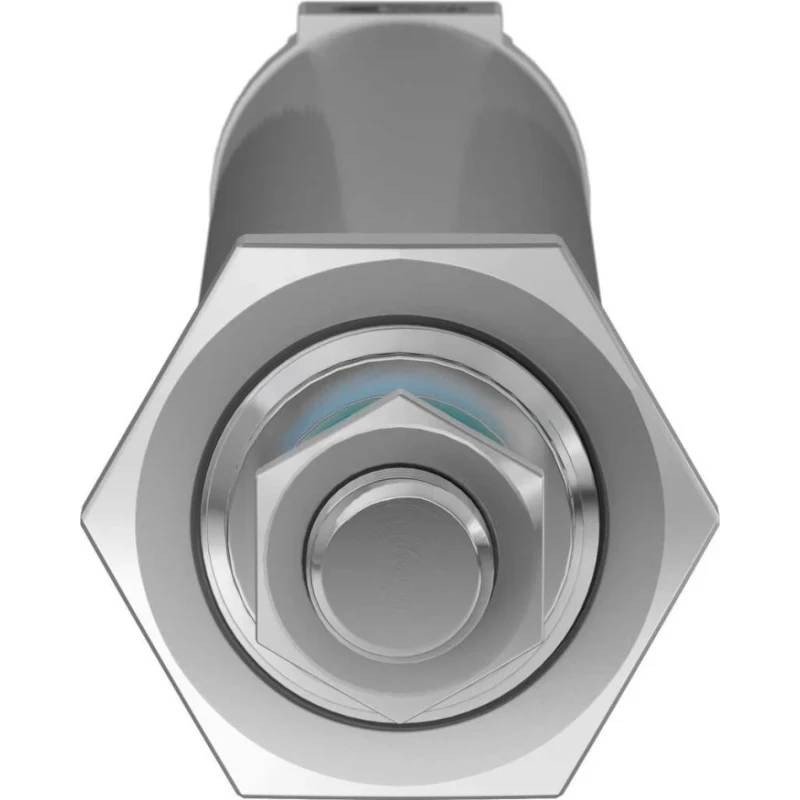

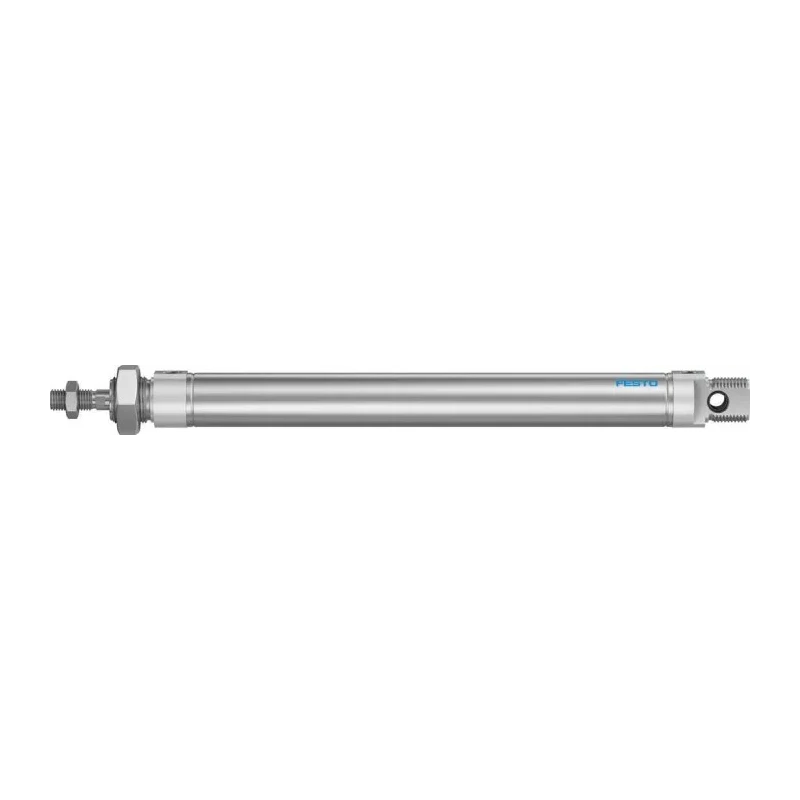

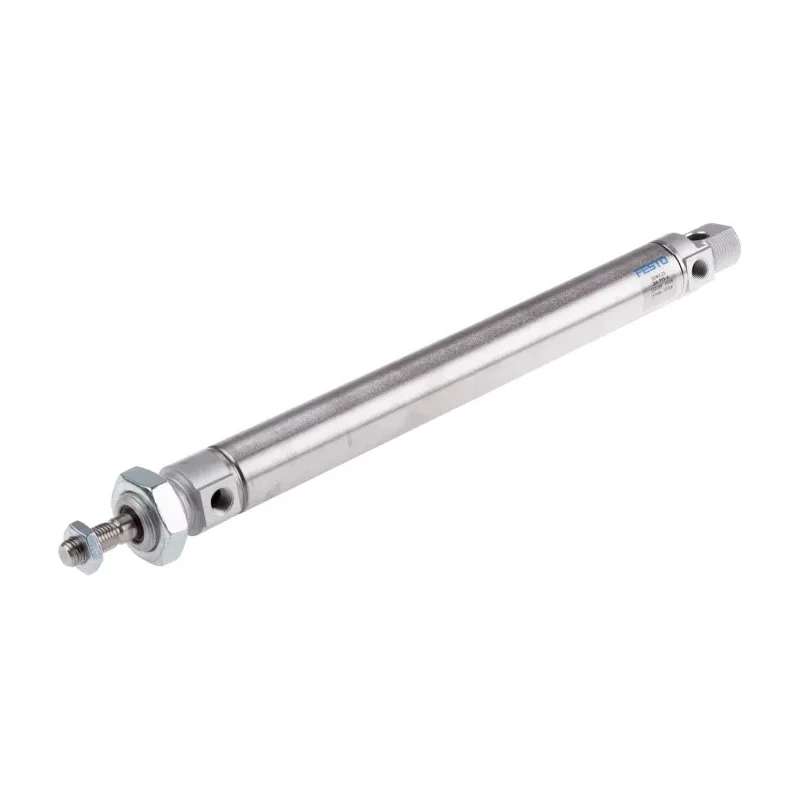

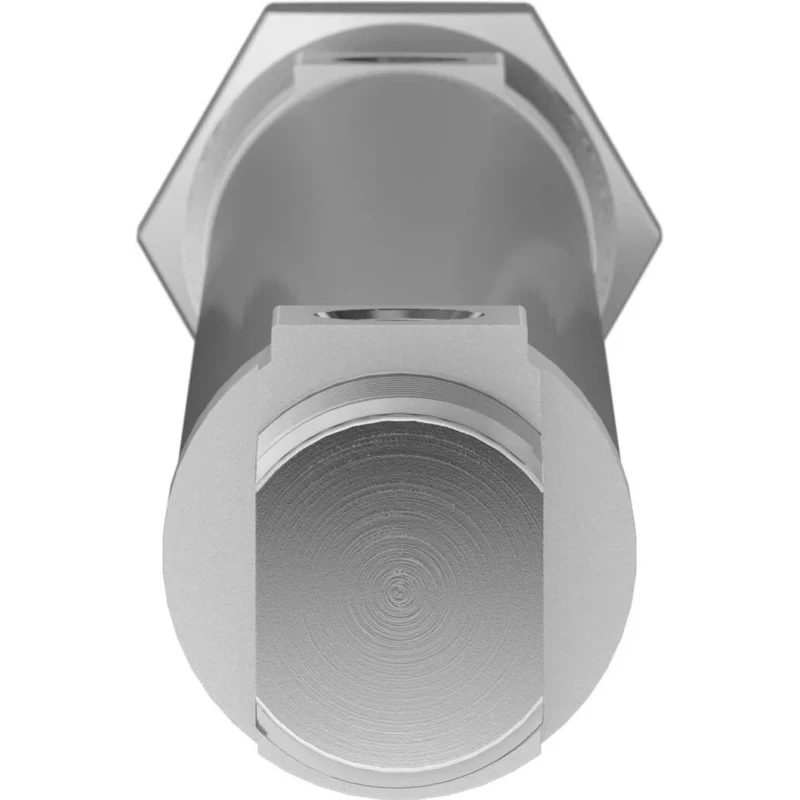

Festo Pneumatic Cylinder 25 mm Bore 200 mm Stroke Self-Adjusting End Cushioning DSNU-25-200-PPS-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Length | 341.5mm |
| Model | DSNU-25-200-PPS-A |
| Mount Type | Front, Swivel, Direct, Foot, Flange, Rear |
| Series | DSNU |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 200mm |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Forms part of Festo's core product range, Festo Part Number | 559289 |
| The design structure of the cylinder is | Piston, piston rod and cylinder barrel |
| PPS | Self-adjusting pneumatic end-position cushioning |
| Festo 200 mm Pneumatic Cylinder - 19251 DSNU SeriesBrand | Festo |
Key Features
- This double-acting pneumatic cylinder has a male metric piston rod thread and a stroke length of 200 mm.
- The cylinder barrel and piston rod are constructed from high alloy steel with corrosion-resistant properties.
- Self-adjusting end-position cushioning eliminates the need for manual adjustments and provides gentle cushioning at both ends.
- The unit conforms to ISO 6432 standards, allowing mounting in any position with various mounting options including front, swivel, foot, flange, and rear.
- Maximum operating temperature is 80°C, suitable for industrial pneumatic applications requiring compliance with ATEX and CE directives.
- The double-acting operation allows advancing and retracting the piston rod via two compressed air connections.
- Extensive accessory compatibility enables flexible installation options.
Product Description
Festo DSNU-25-200-PPS-A pneumatic cylinder boasts a piston diameter of 25 mm and a 200 mm stroke length, equipped with self-adjusting pneumatic end-position cushioning for enhanced performance and extended service life.
This double-acting pneumatic cylinder features a male metric piston rod thread (M10x1.25) and a cylinder length of 341.5 mm, constructed from corrosion-resistant high alloy steel to ensure durability in harsh industrial environments.
The self-adjusting cushioning system provides optimal cushioning performance without manual adjustment, reducing setup time and equipment wear. These cylinders conform to ISO 6432 with standardized metric mounting dimensions and can be mounted in any orientation, including front, swivel, foot, flange, and rear mount types.
Designed for maximum operating temperatures up to 80°C, the cylinder complies with ISO 228-1, ATEX II 2GD, and CE marking/EU Explosion Protection Directive (ATEX), supporting use in explosion-protected zones.
The double-acting operation includes dual connection ports enabling smooth linear motion control for advancing and retracting the piston rod, ideal for automated industrial and manufacturing applications.
This pneumatic cylinder is part of Festo's core product range from the DSNU Series with model number 559289. Comprehensive accessories allow customization for varied pneumatic installations. Suitable for use in industrial, manufacturing, automation, and pneumatic control systems, this cylinder delivers reliable performance, longevity, and flexible mounting options.
Explore EnvMart's Pneumatic Cylinder catalog for additional Festo pneumatic components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic cylinder is 200 mm.
This model has a maximum operating temperature of 80°C.
It can be mounted in various orientations including front, swivel, foot, flange, and rear mount types.
The piston diameter of this model is 25 mm.
It features self-adjusting pneumatic end-position cushioning, which eliminates the need for manual adjustments.
The total length of this pneumatic cylinder is 341.5 mm.
The piston rod has a male metric thread standard of M10x1.25.
The cylinder barrel and piston rod are constructed from high alloy steel with corrosion-resistant properties.
It conforms to ISO 6432 and is compliant with ATEX II 2GD and CE marking/EU Explosion Protection Directive.
This model operates as a double-acting cylinder, allowing for both advancing and retracting of the piston rod using two compressed air connections.
It is suitable for use in industrial, manufacturing, automation, and pneumatic control systems.
This pneumatic cylinder is manufactured in Germany.
