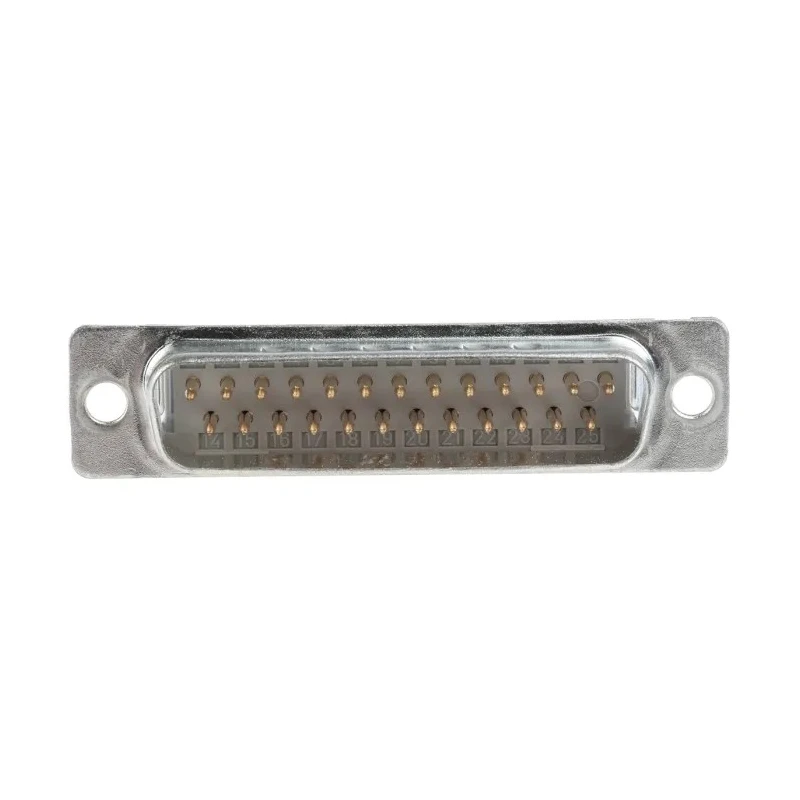

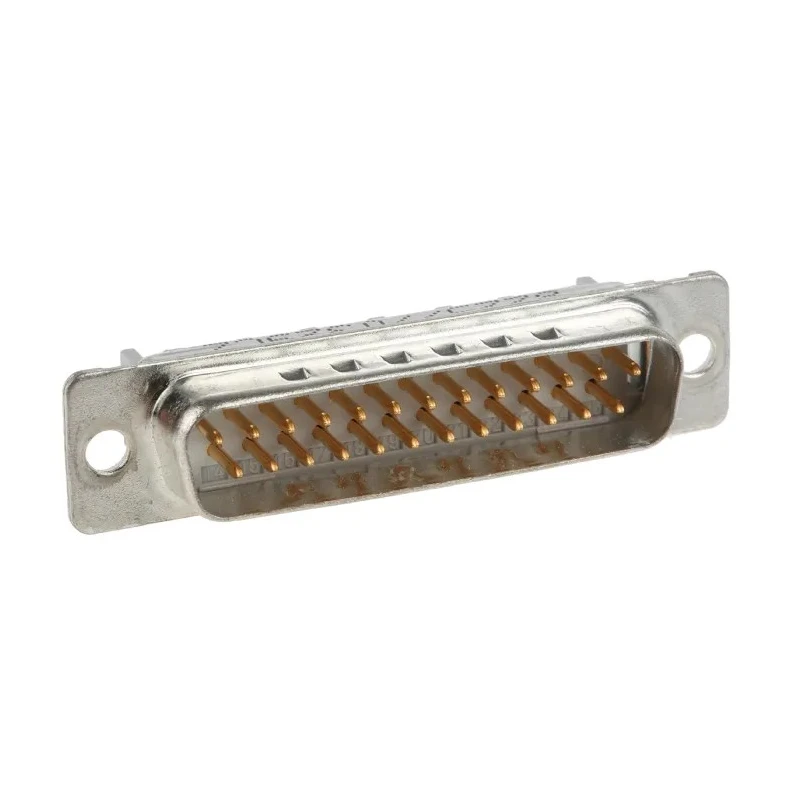

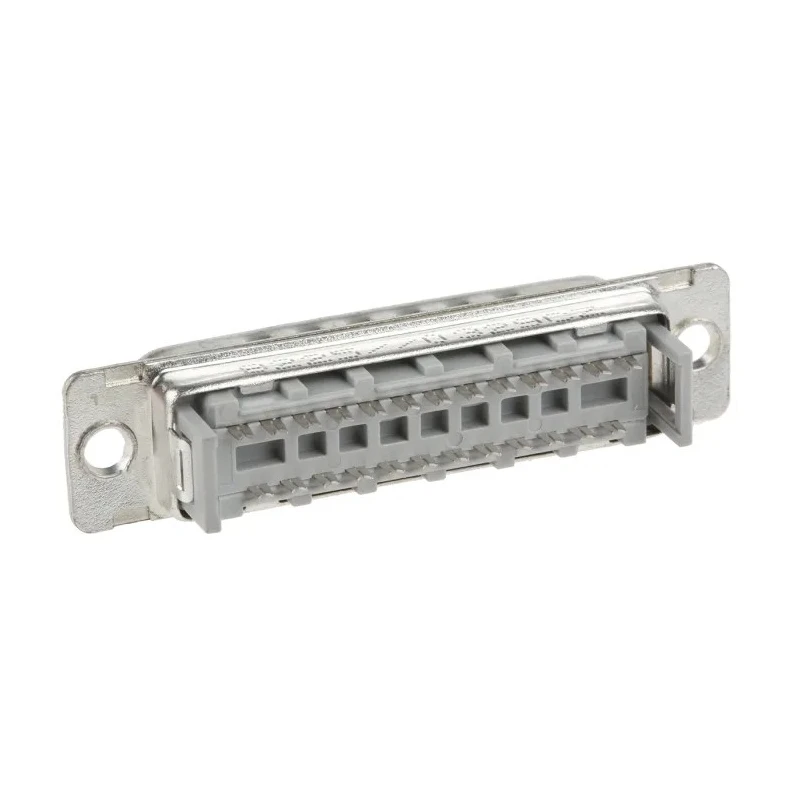

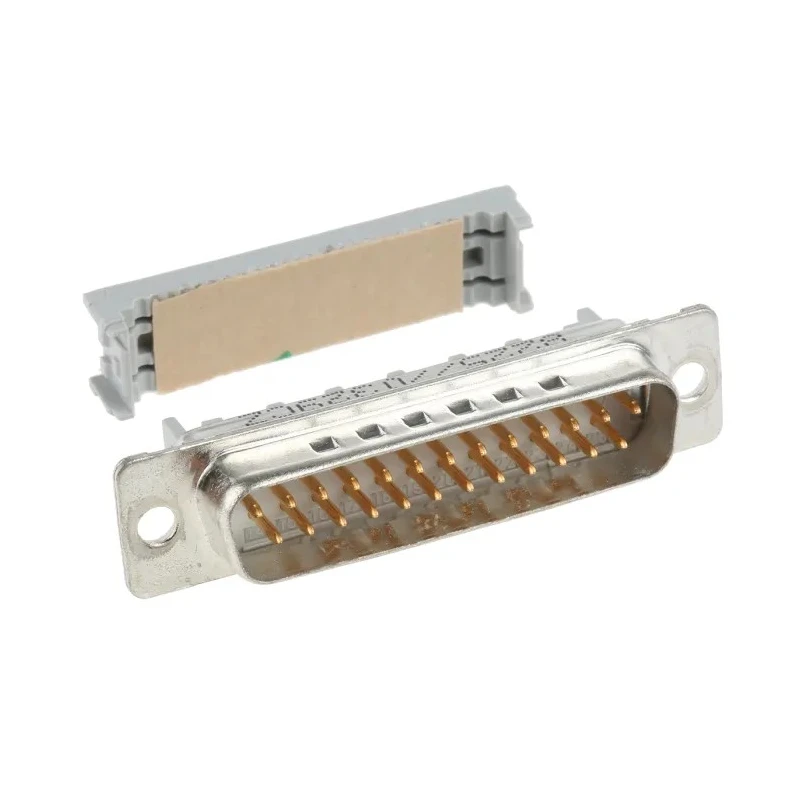

3M 25 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector with Rivet Crimp Male 8225-6009

Free Delivery in India | Lowest Global Shipping Charges

3M 25 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector with Rivet Crimp Male 8225-6009



Category D-Sub Connector Brand 3M Condition New

Specifications

Country of Origin	Czech Republic
Voltage	1kV
Brand	3M
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Steel
Contact Material	Copper Alloy
Series	8200
Mounting Hardware	Rivet Crimp
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.76mm
Standards/Approvals	RoHS, UL 94V-0
Contact Plating	Gold over Nickel
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male

Key Features

Features a sturdy steel housing for mechanical stress and abrasion resistance.
Utilizes rivet crimp mounting hardware for secure cable attachment.
Supports current rating of 1A with copper alloy contacts plated with gold over nickel.
Operates reliably across a temperature range from -55°C to 105°C.
Offers a compact form factor of 53.3 x 16.5 x 12.4 mm suitable for space-constrained applications.
Includes 25 contacts arranged in right angle orientation to suit cable routing requirements.
Termination uses IDC method, enabling strong solderless connections without specialist tools.
Meets rigorous standards including RoHS compliance and UL 94V-0 flame retardancy.

Product Description

3M 8225-6009 is a high-quality 25 Way Right Angle Cable D-Sub Connector featuring a 2.76 mm pitch. This connector employs a durable steel housing that protects against mechanical stresses and abrasion, ensuring a long service life even under demanding conditions.

Designed to handle a current rating of 1A, it is built with copper alloy contacts plated with gold over nickel, providing excellent conductivity and corrosion resistance. Its rivet crimp mounting hardware ensures secure cable attachment and robust mechanical stability.

The connector supports a broad operating temperature range from -55°C to 105°C, making it suitable for harsh industrial environments. Its termination type is IDC (Insulation Displacement Connector), which allows for strong, reliable connections without requiring specialized installation tools.

With compact dimensions of 53.3 mm length, 16.5 mm width, and 12.4 mm depth, this connector is a space-efficient choice. The right angle orientation of its 25 contacts facilitates convenient cable routing and integration in systems with limited space.

3M's 8200 series D-Sub Connectors comply with RoHS and UL 94V-0 standards, ensuring environmental and safety compliance. These connectors find applications in industrial computers, medical equipment, and communications networks where reliable, heavy-duty connections are essential.

Sturdy steel housing resists mechanical stress and abrasion. Rivet crimp mounting hardware ensures secure cable connection. Copper alloy contacts plated with gold over nickel for superior conductivity. Wide operating temperature range from -55°C to 105°C.

Compact 53.3 x 16.5 x 12.4 mm dimensions for efficient space utilization. IDC termination method for reliable, tool-free installation. RoHS and UL 94V-0 compliant for safety and environmental standards. Ideal for industrial computing, medical devices, and communication networks.
