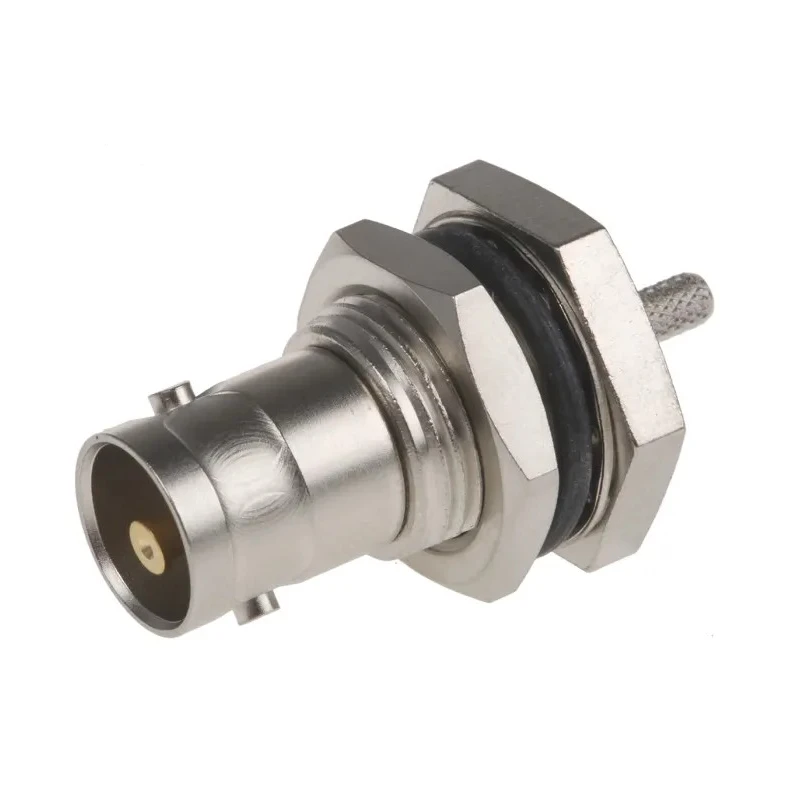

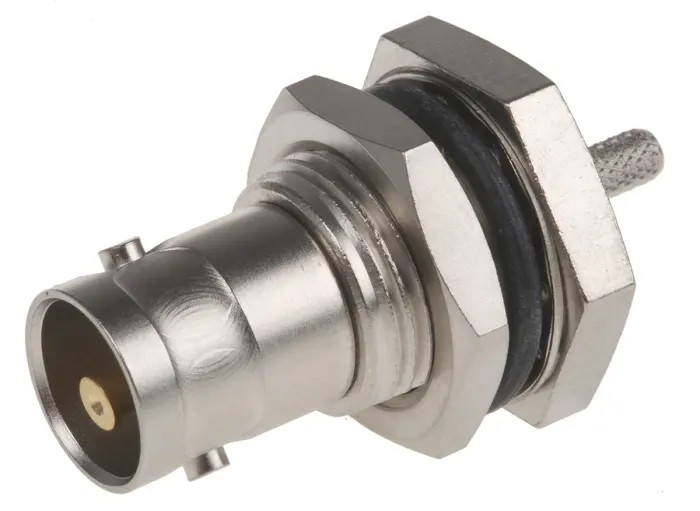

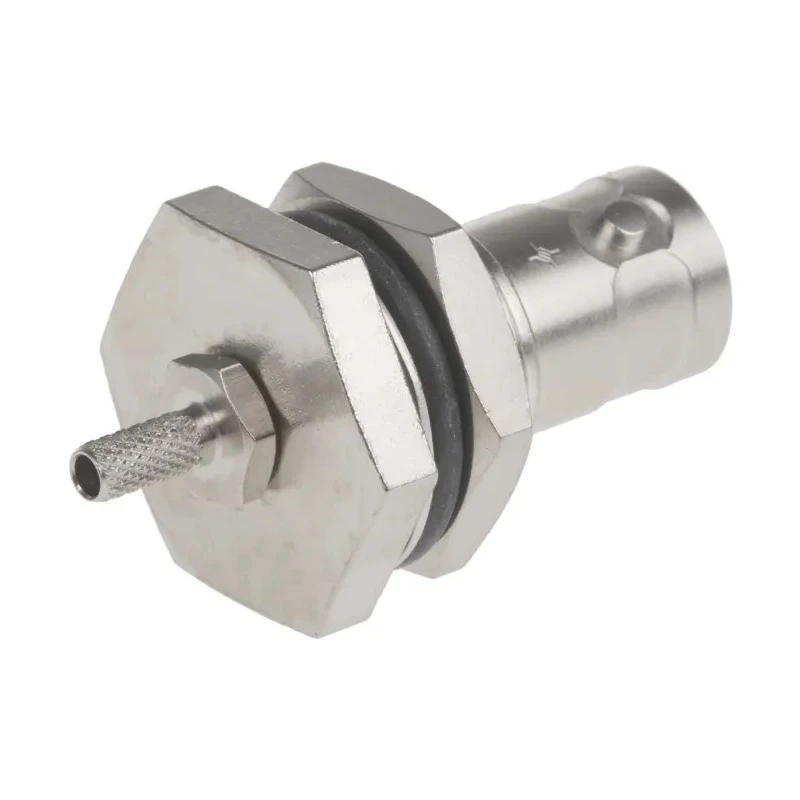

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 75 Ω, Straight Body Crimp J01003B5032

Free Delivery in India | Lowest Global Shipping Charges

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 75 Ω, Straight Body Crimp J01003B5032

Name: Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 75 Ω, Straight Body Crimp J01003B5032
Brand: Telegartner
SKU: 139227
Price: 13.75 USD
Availability: InStock



Category Coaxial Connector Brand Telegartner Condition New

Specifications

Country of Origin	Germany
Size	Standard
Brand	Telegartner
Orientation	Straight
Model	J01003B5032
Mount Type	Panel Mount
Operating Frequency	4GHz
Contact Material	Beryllium Copper
Series	BNC
Termination Type	Crimp
Maximum Operating Temperature	165°C
Cable Type	RG179B/U
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	75Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	BNC
Body Plating	Nickel

Key Features

Features a durable nickel-plated body for enhanced corrosion resistance.
Gold plated beryllium copper contact ensures excellent conductivity and signal integrity.
Supports frequencies up to 4 GHz for high-performance RF applications.
Designed for panel mounting with bulkhead configuration offering secure installation.
Operates reliably in temperatures ranging from -65°C to 165°C.
Employs a bayonet coupling mechanism for quick quarter-turn connection and disconnection.
Compatible with RG179B/U coaxial cable type for versatile use.
Provides an IP54 rating between mated plug and jack ensuring protection against dust and water ingress.

Product Description

Telegartner J01003B5032 BNC Series Coaxial Connector is a high-quality panel mount female BNC Coaxial Connector designed to offer stable and efficient signal transmission in demanding electronic and industrial environments. Featuring a straight body crimp termination, it delivers dependable connectivity for applications requiring 75 Ω impedance.

The connector's nickel-plated body provides robust protection against corrosion, while its gold-plated beryllium copper contacts guarantee excellent electrical conductivity and durability. Suitable for operating frequencies up to 4 GHz, this connector supports a wide range of signal, data, and video transmission needs.

Ideal for industrial, laboratory, and commercial uses, it installs easily into panels via its bulkhead mounting style, ensuring a secure and vibration-resistant connection point. The connector supports cable type RG179B/U and offers a polarity-normal design, making it a versatile choice for many RF coaxial installations.

Designed to operate effectively in extreme temperature ranges from -65°C to 165°C, the connector ensures reliable performance in harsh environmental conditions. Its bayonet coupling mechanism allows quick and secure quarter-turn connections, facilitating ease of maintenance and setup.

Durable nickel-plated body for corrosion resistance. Gold-plated beryllium copper contacts for enhanced conductivity. Supports 4 GHz operating frequency for high-frequency signals. Bulkhead panel mount design for secure attachment.

Wide operating temperature range from -65°C to 165°C. Bayonet coupling mechanism for quick connect/disconnect. Compatible with RG179B/U coaxial cable types. Polarity normal contact design.

Applications for this connector include telecommunications, signal processing, data transmission, and video equipment installations requiring reliable RF connections. Originating from Germany, this product meets stringent manufacturing standards ensuring quality and durability.
