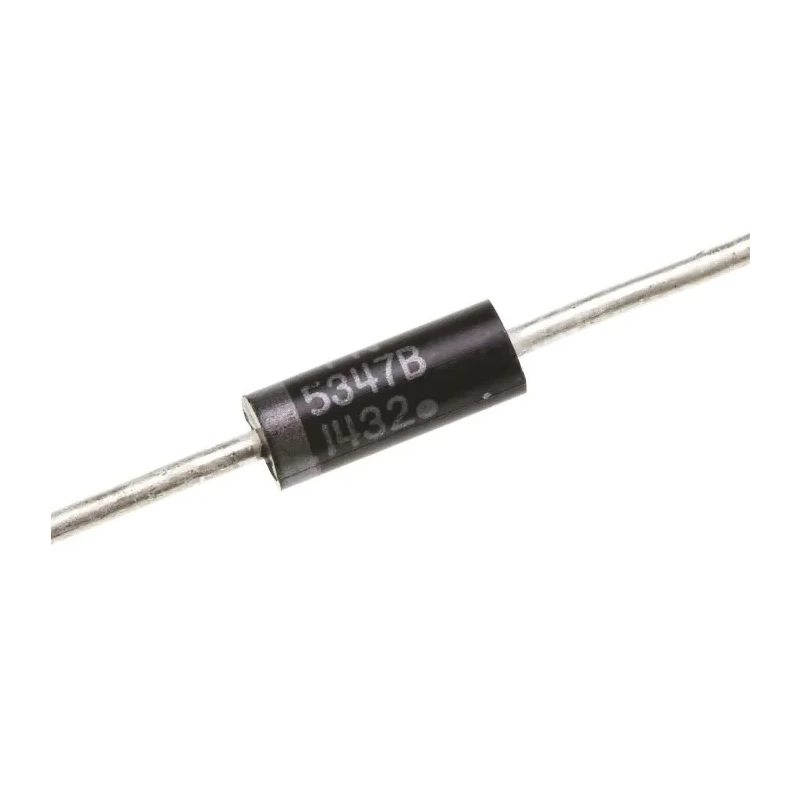

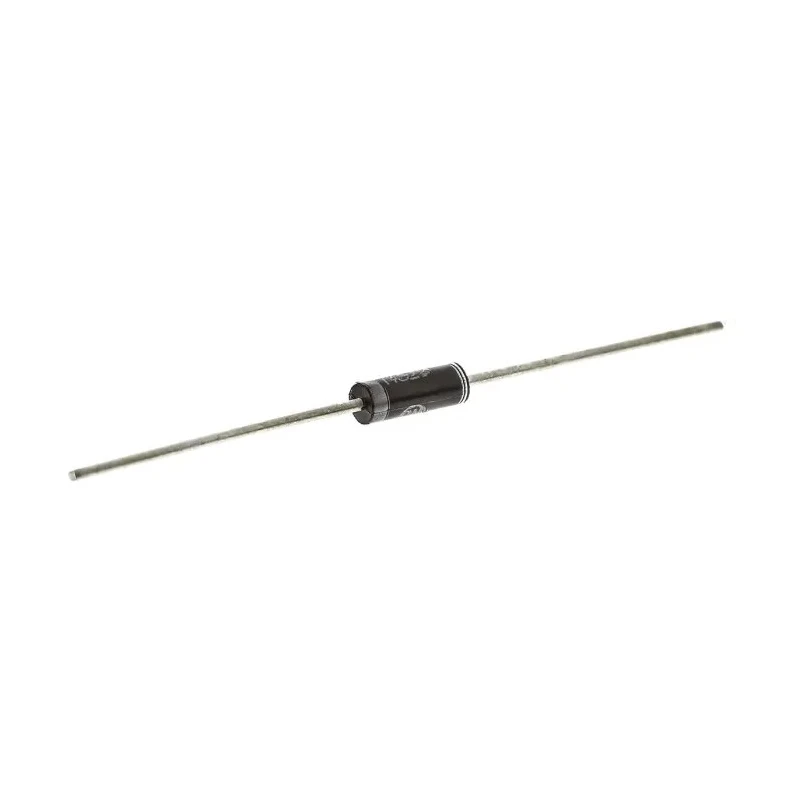

onsemi Zener Diode, Single 10 V Nominal Zener Voltage, 5 W Power Dissipation, Through Hole 2-Pin DO-15 Package 1N5347BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5347BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 125mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2Ω |
Key Features
- Single diode configuration in a 2-pin DO-15 package.
- Nominal Zener voltage of 10 V with ±5% tolerance for precise voltage regulation.
- Maximum power dissipation of 5 Watts for robust performance.
- Through hole mounting suitable for standard PCB assemblies.
- Wide operating temperature range from -65°C to 200°C.
- Low maximum reverse leakage current of 5 microamperes.
- Standard test current of 125 mA for accurate voltage characteristics.
- Molded, void-free transfer-molded thermosetting plastic package ensures corrosion resistance.
Product Description
onsemi 1N5347BG Zener Diode is a robust single diode designed for voltage regulation with a nominal Zener voltage of 10 V and a maximum power dissipation of 5 W. It is housed in a through hole 2-pin DO-15 package ensuring ease of mounting on printed circuit boards. This device operates within a wide temperature range of -65°C to 200°C, supporting industrial applications requiring consistent voltage control.
The 1N5347BG diode offers a voltage regulator type Zener diode with a ±5% voltage tolerance and a maximum zener impedance of 2 Ω, providing stable voltage reference and regulation. It features a low maximum reverse leakage current of 5 μA, which minimizes power loss and improves efficiency.
Constructed with a molded, void-free transfer-molded thermosetting plastic package, it offers corrosion resistance and reliable environmental protection. The axial leads are designed for ease of soldering and durability under industrial conditions.
Typical applications include industrial voltage regulation, waveform clipping, voltage reference, and voltage stabilization in power supplies and other electronic circuits. This capacitor supports a test current of 125 mA ensuring consistent Zener voltage rating.
Pin count is 2 for simple integration in electronic designs. Length and height dimensions are approximately 8.89 mm and 3.68 mm respectively, suitable for compact installations. The device follows the 1N53 series standard from ON Semiconductor known for stability and reliability.
This diode has no automotive certification and is intended for non-automotive industrial uses. Explore a wide range of Zener Diodes and discrete semiconductors at EnvMart for your electronic component requirements.
