Artesyn / Advanced Energy DC/DC Converter Through Hole 12V DC Input, 0.59V / 5.1V Output, 10A, 50W, Open Frame, 85°C LDO10C

Artesyn / Advanced Energy LDO10C is a high-density, single output regulated non-isolated DC/DC converter suitable for power supply applications requiring 12V DC input voltages. The unit supports a wide input range from 3 volts up to 12 volts DC, providing output voltages of 0.59 volts or 5.1 volts DC at a maximum output current of 10 amps.

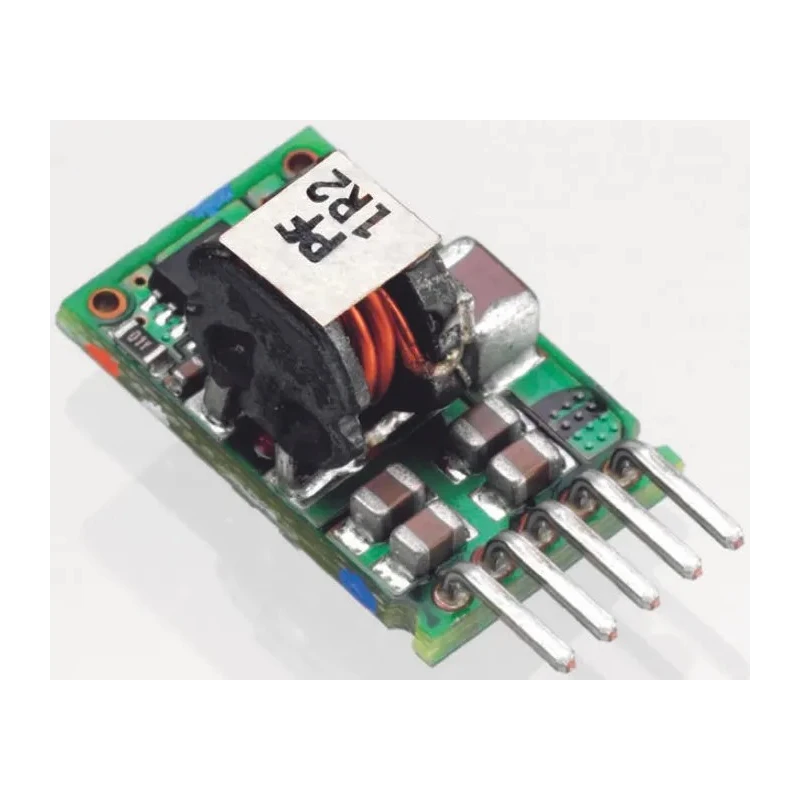

This converter is packaged in an open frame design with a vertical through-hole mount configuration, optimized for compact circuit board applications. It offers exceptional efficiency of 91%, minimizing power loss and heat generation in demanding industrial and electronic systems.

The device comes with integrated safety features including over-voltage protection and short current protection, ensuring stable and secure operation under variable load conditions. It is designed to operate reliably across a broad temperature range, from -40 degrees Celsius to a maximum of 85 degrees Celsius, making it suitable for diverse industrial, laboratory, and electronic manufacturing environments.

The LDO10C series features adjustable output voltages via external resistors, facilitating customized voltage regulation to meet specific application requirements. Its mean time between failures (MTBF) rating surpasses eight million hours, demonstrating excellent durability and reliability for long-term use.

The converter complies with globally recognized standards including RoHS for hazardous substance restrictions and safety approvals including UL 60950, IEC 60950, and CSA certifications.

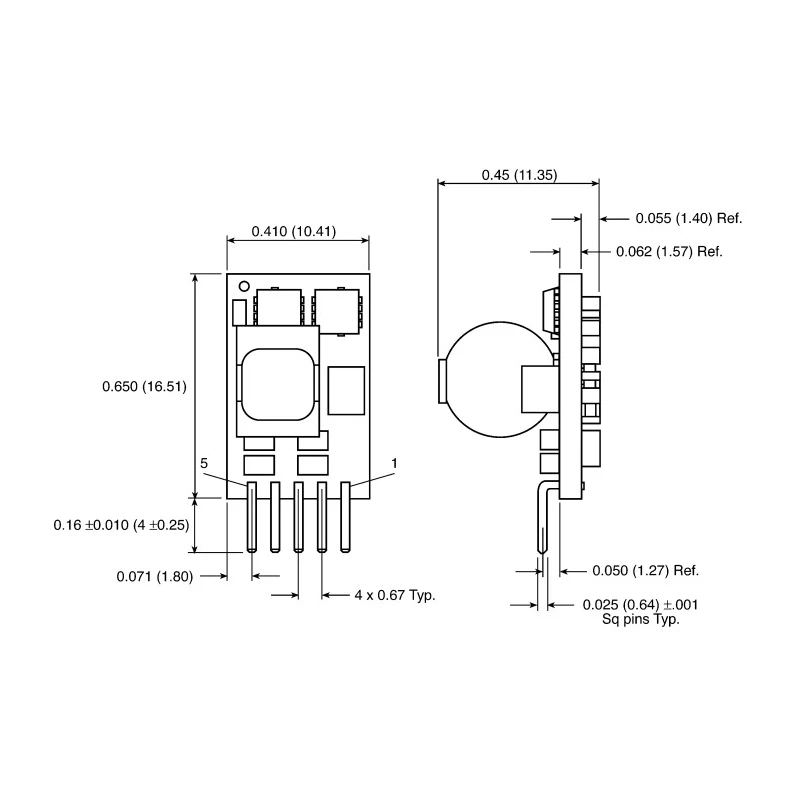

Dimensions of this device are compact, measuring approximately 10.41 mm in length, 16.51 mm in width, and 11.35 mm in depth, with a lightweight of 1.9 grams. It is ideal for use in power supply modules, electronic instrumentation, communication devices, and general industrial applications requiring efficient DC voltage conversions.

The package includes the DC/DC converter in an open frame form suitable for installation on printed circuit boards through vertical through-hole mounting.
