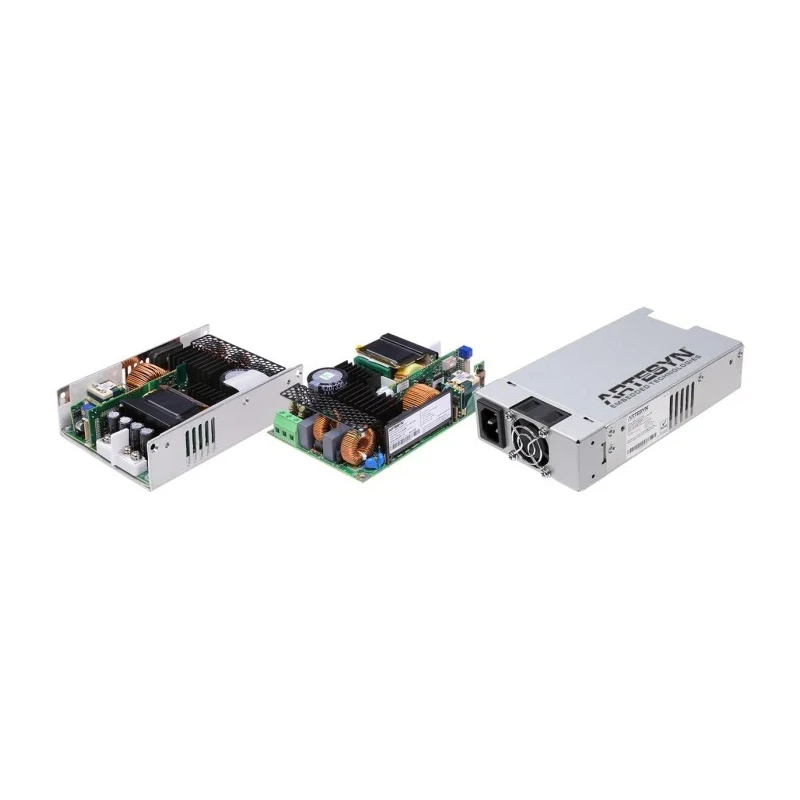

Artesyn / Advanced Energy CNS653-MU Switching Power Supply 12V DC 400W 90-264V AC Chassis Mount CNS653-MU

Free Delivery in India | Lowest Global Shipping Charges

Artesyn / Advanced Energy CNS653-MU Switching Power Supply 12V DC 400W 90-264V AC Chassis Mount CNS653-MU

Name: Artesyn / Advanced Energy CNS653-MU Switching Power Supply 12V DC 400W 90-264V AC Chassis Mount CNS653-MU
Brand: Artesyn / Advanced Energy
SKU: 201826



Category Switching Power Supplies Brand Artesyn / Advanced Energy Condition New

Specifications

Country of Origin	Philippines
Brand	Artesyn / Advanced Energy
Power	400W
Efficiency	93%
Length	154.3mm
Model	CNS653-MU
Depth	39.2mm
Gross Weight	800g
Width	101.6mm
Mount Type	Chassis
Series	CNS653-MU
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	EN, CE, CCC, UL/CSA 62368-1 / 60601-1
Maximum Output Voltage	12V dc
SMPS Output Current	54.2A
Minimum Input Voltage	90V ac

Key Features

Universal input voltage range of 90V AC to 264V AC supports global usage.
Compact chassis mount design with dimensions 154.3mm x 101.6mm x 39.2mm.
High efficiency of 93% minimizes energy loss during operation.
Operates in a wide temperature range from -20°C to 80°C for reliable performance.
Includes 12V fan output and 5V standby for auxiliary power requirements.
Complies with EN, CE, CCC, UL/CSA 62368-1 and 60601-1 standards.
Features active power factor correction and built-in Class B EMI filter for cleaner power.
Medical Type BF ready for medical safety applications.

Product Description

Artesyn / Advanced Energy CNS653-MU switching power supply is a high-density AC-DC power supply delivering up to 400W output power with a regulated 12V DC voltage and output current of 54.2A. It is engineered for industrial systems and medical applications where reliability, efficiency, and safety are critical. The unit accepts a wide input voltage range of 90V to 264V AC allowing universal worldwide application.

The chassis mount design features compact dimensions of 154.3mm length, 101.6mm width, and 39.2mm depth, with an efficient and compact "U-Channel" open-frame structure to enable effective convection cooling. Operating temperature ranges from -20°C up to 80°C ensure performance under harsh environmental conditions. The power supply includes a 12V fan output and a 5V standby voltage to support auxiliary devices.

With a high efficiency rating of 93% and active power factor correction, the CNS653-MU ensures minimal power loss and reduced harmonic distortion. Built-in Class B EMI filter improves electromagnetic compatibility, and the dual input fuse design enhances protection during forced air or natural convection cooling modes. Certification to EN, CE, CCC, UL/CSA 62368-1 and medical 60601-1 standards make this power supply suitable for stringent industrial and medical device requirements.

Typical applications include industrial automation systems, medical equipment requiring Type BF safety compliance, and other critical systems demanding consistent and robust power delivery. The lightweight 800g unit provides easy integration into existing systems while maintaining safety and performance standards.

Key features include universal input voltage, high efficiency, medical safety approvals, and a compact chassis mount form factor optimized for heat dissipation and reliability. Explore the Artesyn / Advanced Energy Switching Power Supplies category at EnvMart for more industrial-grade power solutions.

Universal input voltage range of 90V to 264V AC enhances global compatibility. High output power of 400W at 12V DC ensures robust device operation. Compact chassis mount design facilitates system integration in limited spaces.

Complies with industrial and medical safety standards including UL/CSA 60601-1. Includes active power factor correction and EMI filtering for stable power output.
