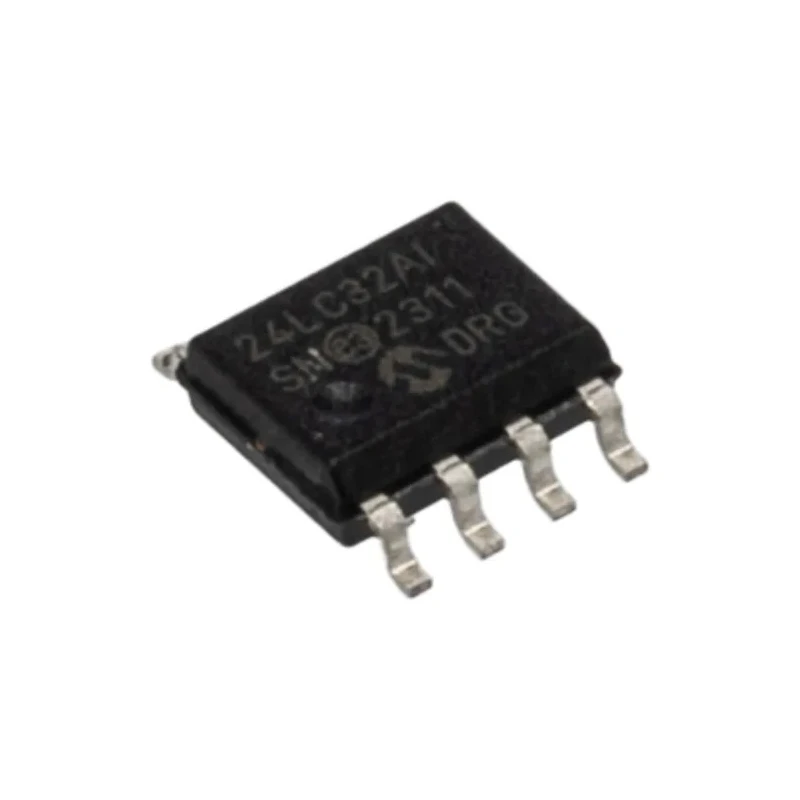

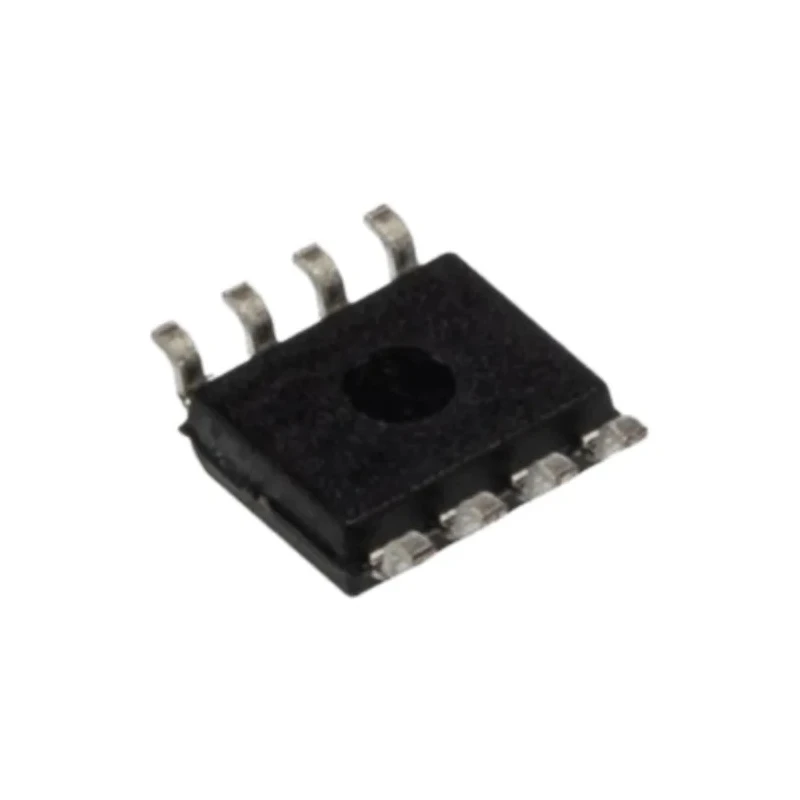

Microchip 32 kB Serial EEPROM 8-Pin SOIC Serial-I2C, 2.5-5.5V, 900 ns Access Time 24LC32A-I/SN

Microchip 24LC32A-I/SN is a 32 kB serial EEPROM designed for data storage applications requiring reliable non-volatile memory with Serial-I2C interface. Operating within a supply voltage of 2.5 to 5.5 V, it supports a maximum clock frequency of 400 kHz and delivers a rapid maximum random access time of 900 ns.

This EEPROM features organization of 4k x 8 bits and accommodates 8 bits per word, packaged in an 8-Pin SOIC surface mount form factor with compact dimensions of 4.9 mm length by 6 mm width, facilitating integration in space-constrained electronic devices.

The device benefits from low power CMOS technology with a supply current of 3 mA, and maintains data reliability with a retention period exceeding 200 years. It complies with automotive standard AEC-Q100, ensuring functionality under demanding environmental conditions with operating temperature ranging from -40°C to 85°C.

Additional features include Schmitt trigger inputs for enhanced noise immunity and output slope control technology to eliminate ground bounce effects, making it suitable for high integrity industrial, automotive, communication, and embedded system applications.

The Microchip 24LC32A-I/SN is ideal for use in industrial control systems, telecommunications equipment, automotive electronics, and consumer devices requiring robust serial EEPROM memory.

Supports maximum clock frequency of 400 kHz for fast data transfer. Operates on a supply voltage range of 2.5 to 5.5 volts. Maximum random access time of 900 ns for quick read/write cycles. Data retention period exceeding 200 years for long-term reliability.

Complies with automotive standard AEC-Q100 for robust performance. Low power consumption at 3 mA supply current. Compact 8-Pin SOIC surface mount package with dimensions 4.9 mm × 6 mm. Wide operating temperature range from -40°C to 85°C.

Schmitt trigger inputs for noise suppression and output slope control to prevent ground bounce. Ideal for industrial, automotive, telecommunications, and embedded electronics applications. Explore more components from Microchip and other reliable brands within the EEPROM category at EnvMart.
