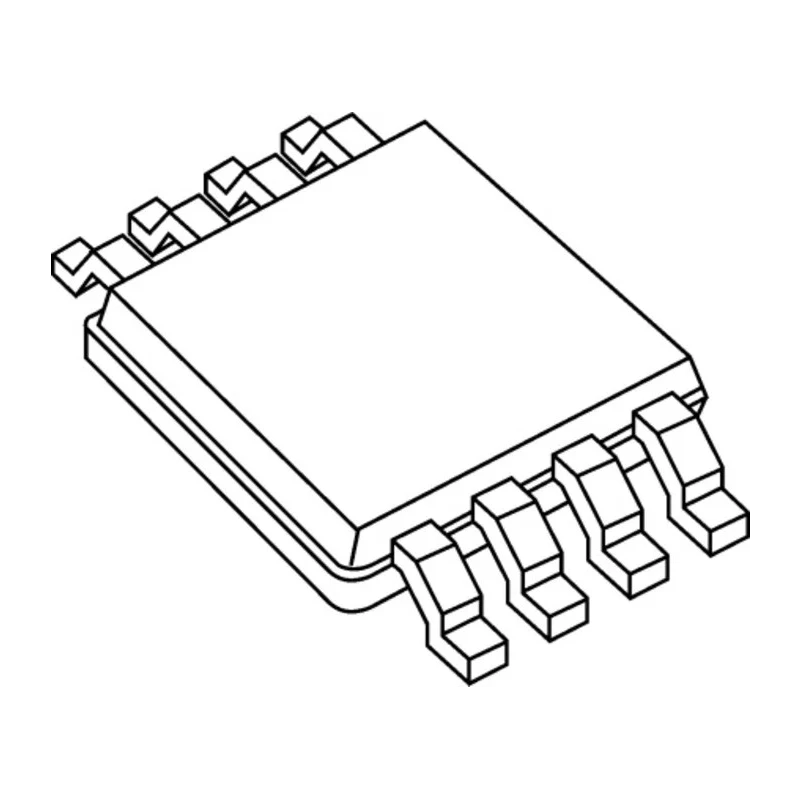

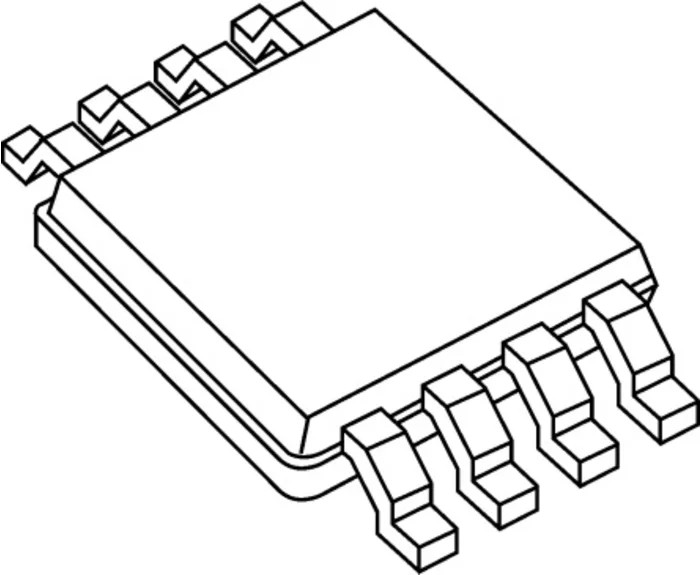

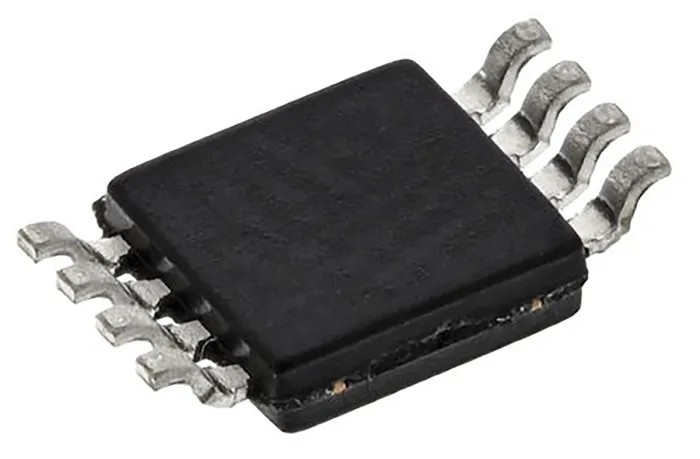

Renesas Electronics Line Transceiver, Inverting, 8-Pin MSOP, CMOS Bus Transceiver, 3-3.6V Supply, ISL3178EIUZ

Renesas Electronics ISL3178EIUZ is an advanced line transceiver IC with an inverting output, packaged in an 8-pin MSOP form factor, and built using CMOS logic family technology. It supports bus transceiver logic function, making it suitable for industrial communication systems including RS-485 half-duplex and full-duplex line drivers and receivers. The device operates efficiently over a voltage supply range from 3 V minimum to 3.6 V maximum, while consuming a low supply current of 800μA, optimizing power usage in embedded systems.

The transceiver features differential input and inverting output types, providing effective noise rejection and signal integrity over long twisted pair cables. It is surface mount compatible, simplifying PCB integration in electronic and industrial automation applications. The compact package dimensions (length 3.05 mm, width 4.9 mm, height 1.75 mm) allow usage in space-constrained designs.

With an extended temperature range from -40°C to 85°C, the ISL3178EIUZ supports harsh environmental conditions common in industrial and manufacturing settings. This enhances reliability for applications such as industrial control systems, factory automation, and communication interface units.

The product is manufactured in Malaysia, meeting quality standards expected from Renesas Electronics. While it is not automotive-certified, its specification suits a wide range of electrical and electronic interfaces.

Operates on 3 V to 3.6 V supply voltage range providing stable performance. Low 800μA operating current optimizes energy consumption. Supports inverting output for improved signal conditioning. Compact 8-pin MSOP surface mount package fits small circuit boards.

Wide operating temperature operation from -40°C to 85°C ensures industrial robustness. Differential input for reliable data transmission over long wiring. Bus transceiver logic family CMOS technology for compatibility and efficiency.

Ideal for RS-485 line driver and receiver applications in industrial automation.

This IC is an ideal solution for manufacturers and engineers designing data communication interfaces in industrial, manufacturing, commercial, and electronic device applications. Explore more Line Interface ICs and Renesas Electronics products on EnvMart for high-quality semiconductor solutions.
