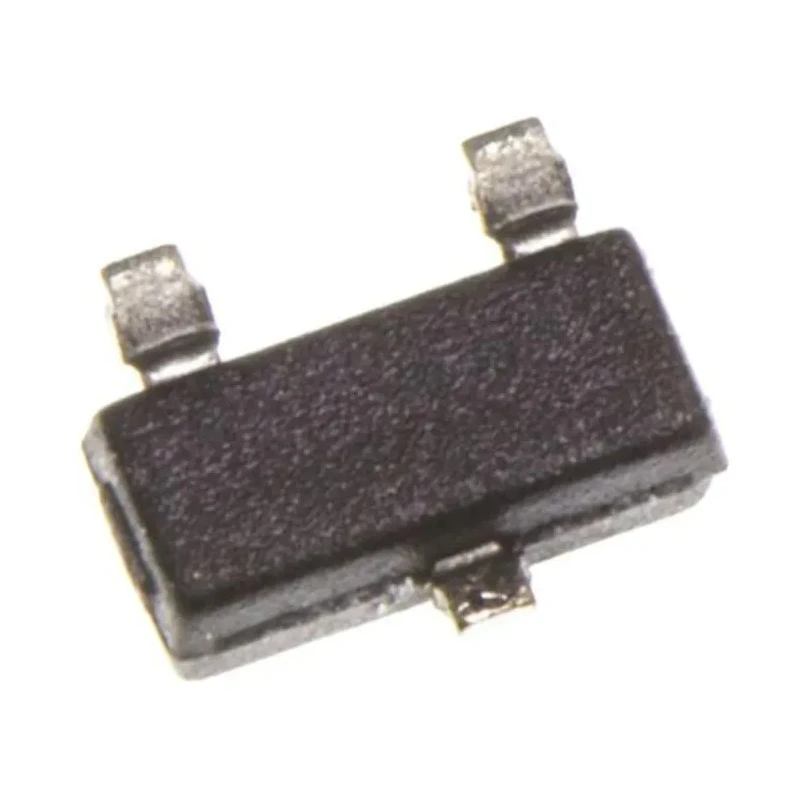

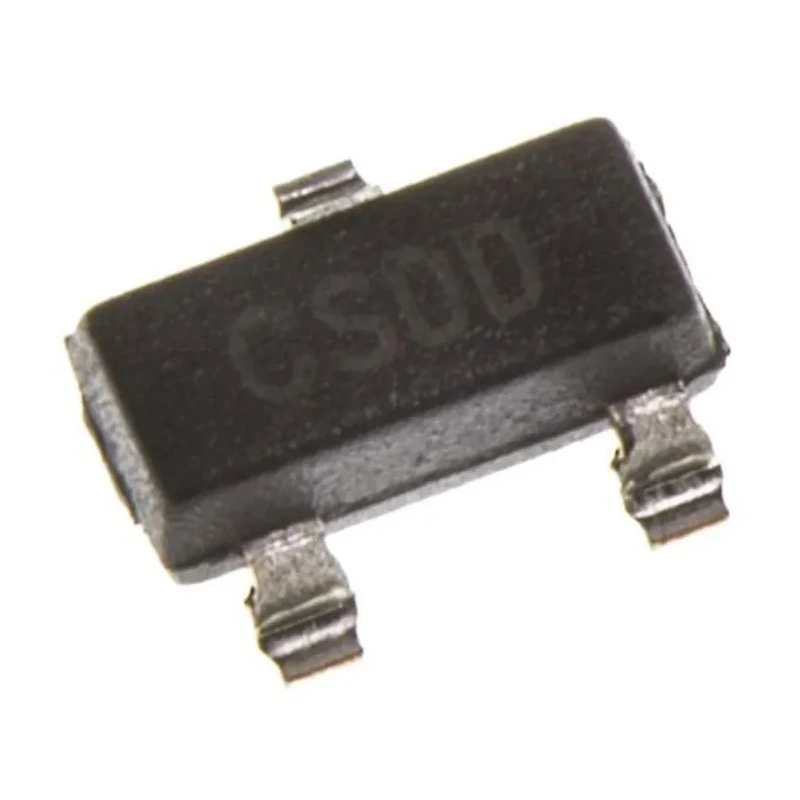

Renesas Electronics Fixed Series Voltage Reference 5V ±0.2% Accuracy 3-Pin SOT-23 ISL21080CIH315Z-T7A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Renesas Electronics |
| Height | 950μm |
| Length | 2.92mm |
| Model | ISL21080CIH315Z-T7A |
| Mount Type | Surface |
| Output type | Fixed |
| Series | ISL21080 |
| Temperature Coefficient | 50 ppm/°C |
| Output Current | 7mA |
| Topology | Series |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Load Regulation | 350 μV/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 5.5V |
| Line Regulation | 350 μV/V |
| Minimum Input Voltage | 2V |
| Pin Count | 3 |
| Reference Voltage | 5V |
| Initial Accuracy | ±0.2 % |
Key Features
- Provides a stable fixed 5V reference voltage with high accuracy.
- Surface-mount SOT-23 package suitable for compact PCB designs.
- Wide operating temperature range from -40°C to 85°C.
- Low line and load regulation for consistent performance.
- Maximum output current of 7mA suitable for precision applications.
- Minimal temperature coefficient of 50 ppm/°C ensures voltage stability.
- Maximum input voltage of 5.5V with a minimum input voltage of 2V.
- Compact dimensions with height 950μm and length 2.92mm.
Product Description
Renesas Electronics ISL21080CIH315Z-T7A is a high-precision fixed series voltage reference designed for industrial and electronic circuit applications requiring a reliable 5V reference voltage. Featuring a compact 3-pin SOT-23 surface-mount package, it balances size and performance effectively.
This voltage reference provides an initial accuracy of ±0.2%, with a low temperature coefficient of 50 ppm/°C, ensuring voltage stability over a broad temperature range from -40°C to 85°C. It supports an output current up to 7mA, making it suitable for power management and precision signal conditioning circuits.
The device exhibits excellent line regulation and load regulation, both rated at 350 μV/V and 350 μV/mA respectively, which maintain consistent output voltage despite changes in input voltage or load conditions. It operates with a minimum input voltage of 2V and can handle a maximum input of 5.5V, supporting various power supply scenarios.
With dimensions of 2.92mm in length and 950μm in height, the ISL21080CIH315Z-T7A is tailored for compact electronic assemblies. Its robust design excludes any specific automotive certification but is perfectly suited for industrial, laboratory, instrumentation, and manufacturing electronics environments requiring precision voltage references.
Fixed 5V reference voltage output ensures precise voltage regulation. Compact 3-pin SOT-23 surface mount package enables efficient PCB usage. Wide ambient temperature range for industrial and commercial applications. Low output noise and high accuracy contribute to reliable circuit operation.
Suitable for power management and calibration in precision electronic devices. Stable operation due to low line and load regulation values. This product is sourced from Thailand and provides a dependable solution for electronic designers and engineers prioritizing voltage reference accuracy and package size.
Explore more precision Voltage Reference components and industrial electronics at EnvMart for your project needs.
