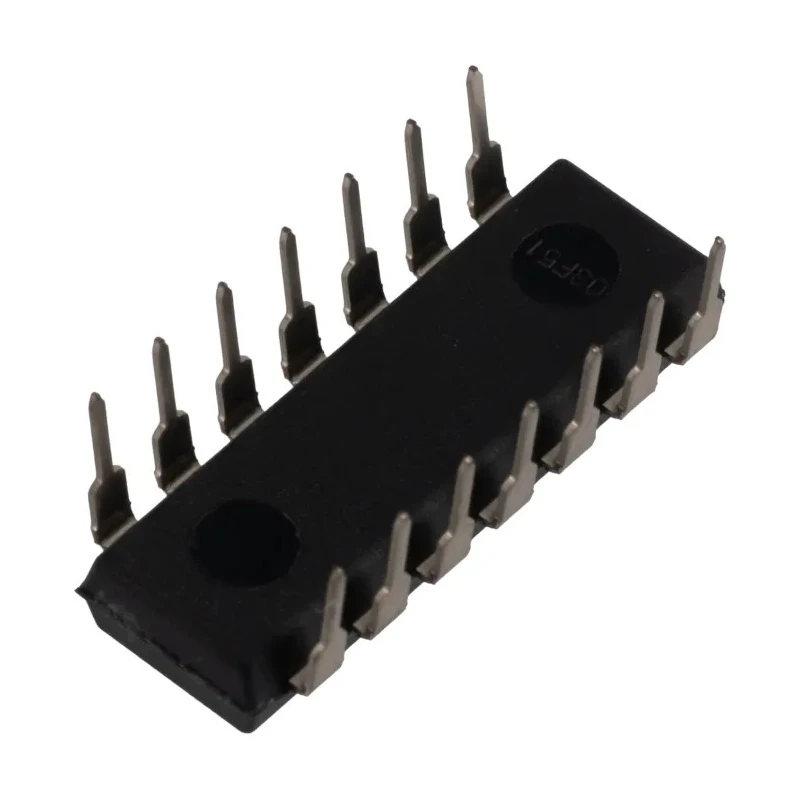

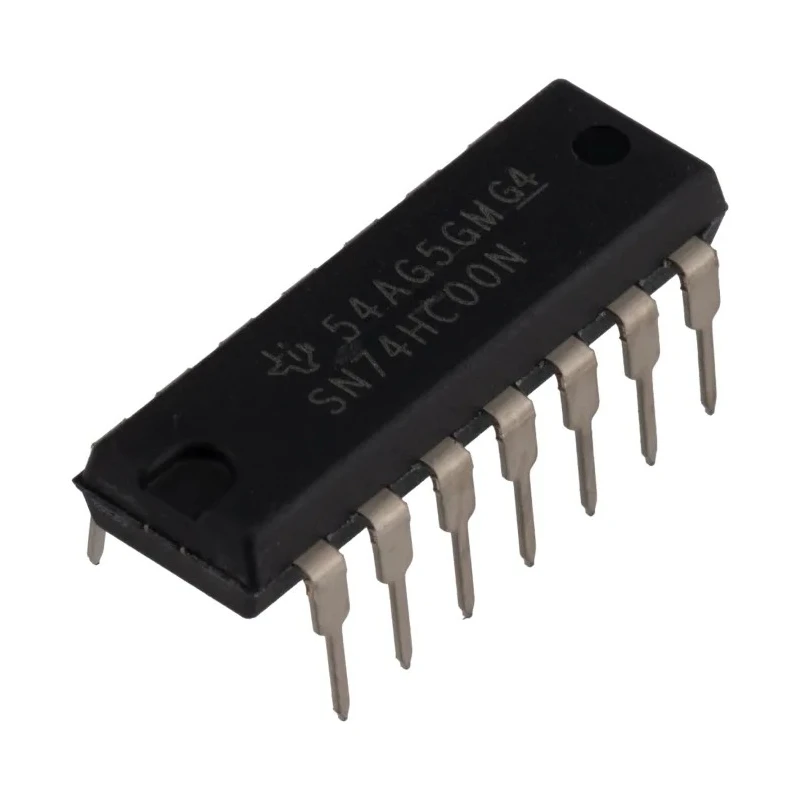

Texas Instruments 4 2-Input NAND Logic Gate, 14-Pin PDIP, CMOS HC Family, Operating Voltage 2 to 6 V SN74HC00N

Texas Instruments SN74HC00N is a 4 2-input NAND logic gate integrated circuit housed in a 14-pin PDIP package. It belongs to the high-speed CMOS (HC) logic family, designed using silicon gate CMOS technology to deliver fast switching speeds comparable to LSTTL while maintaining low power consumption characteristic of CMOS components. The operating voltage for this device ranges from 2 V to 6 V, making it suitable for a variety of electronic circuits including low-voltage and battery-powered applications.

The IC consists of four independent NAND gates, each with two inputs. This device supports a temperature range from -40°C up to 85°C, ensuring reliable performance in industrial and commercial environments. It features a maximum propagation delay time of 20 nanoseconds at typical load capacitance, facilitating high-speed logic operations.

With a 14-pin Dual In-Line Package (PDIP), the SN74HC00N is designed for through-hole mounting, ideal for prototyping and industrial PCB assembly. The logic gates have CMOS-compatible inputs and outputs, with a maximum high-level output current of -5.2mA and low-level output current of 5.2mA, giving adequate load-driving capabilities for interfacing with other logic families and devices.

This IC is widely utilized in digital logic design for industrial automation, embedded control systems, instrumentation, and educational electronics. Its combination of high switching speed, low power consumption, and broad voltage supply compatibility make it a versatile component for implementing NAND logic functions in various applications.

Package contents: 1 Pc Texas Instruments SN74HC00N 4 2-Input NAND Logic Gate IC, 14-Pin PDIP. The device contains four two-input NAND gates suitable for digital logic applications. Built with high-speed CMOS technology ensuring low power consumption and high noise immunity.

Operating temperature ranges from -40°C to 85°C for versatile industrial use. Logic family is HC (High-speed CMOS) compatible with TTL and CMOS inputs/outputs. Through-hole mounting with a 14-pin dual in-line package design for prototyping or PCB assembly.

Maximum propagation delay time is 20ns ensuring fast switching for timing-critical circuits. Low voltage supply range of 2 V minimum up to 6 V maximum for battery powered or low-voltage systems. Maximum high-level output current of -5.2mA and low-level output current of 5.2mA enabling robust output driving capability.

Commonly used in digital electronics, industrial automation, embedded systems, and control logic circuits. Designed for reliability and consistent performance meeting standard semiconductor requirements.
