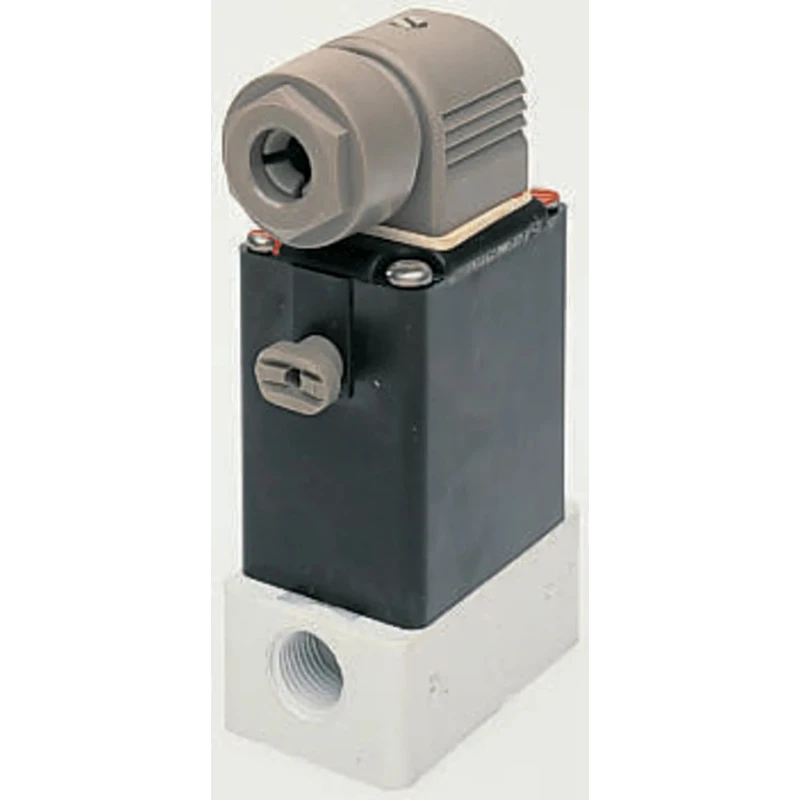

Burkert Solenoid Valve 3 Port NO/NC, 110V AC, 6.35 mm Inlet and Outlet, Polypropylene Body 078557

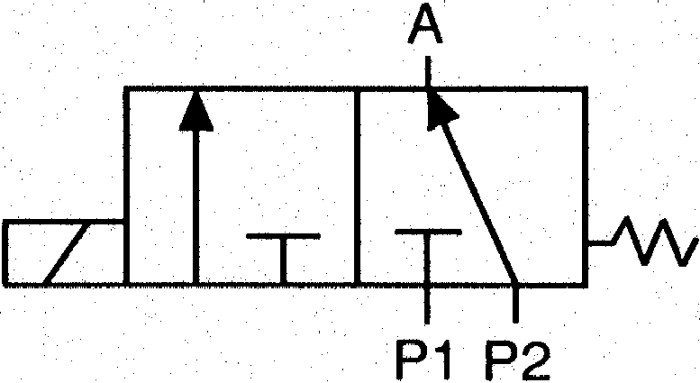

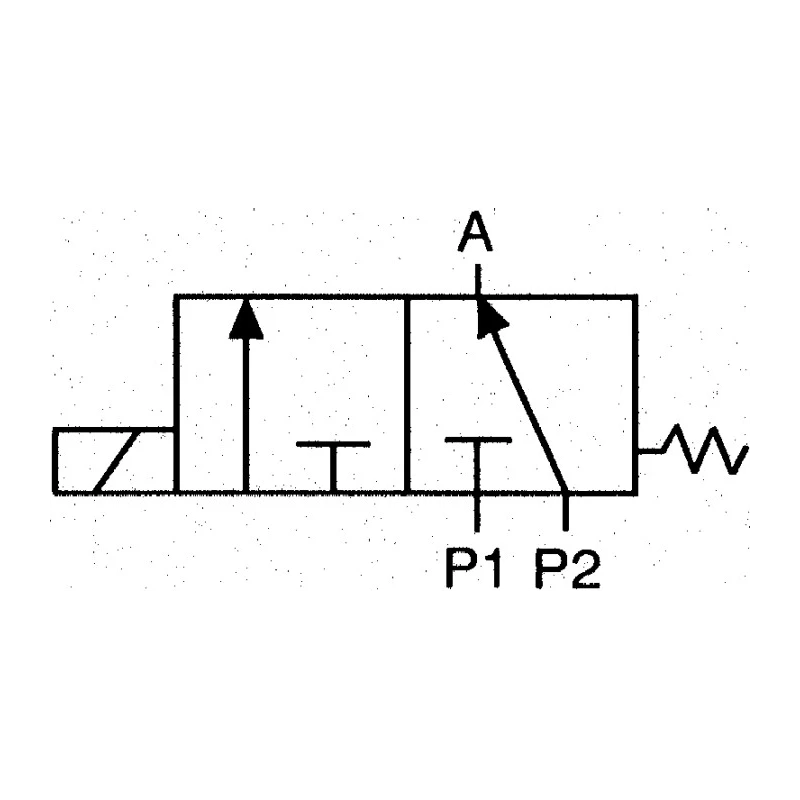

Burkert 078557 solenoid valve is a 3 port device designed to control gas flow effectively with a 110V AC supply voltage and a sturdy polypropylene body. It features 6.35 mm inlet and outlet port sizes suitable for various industrial and laboratory pneumatic applications.

The valve supports normally open and normally closed positions, allowing flexibility in system configurations. It holds a maximum operating pressure of 4 bar and a flow factor Kv of 0.23 m³/h, enabling precise flow control and system reliability.

Equipped with a lockable manual override and a 3-pin DIN connector rated to IP65, this solenoid valve offers convenient installation and protection against ingress. The duty cycle supports intermittent operation with 40% usage over 30 minutes to maintain coil integrity.

The device is designed to operate within fluid temperature ranges from -30°C to +80°C with EPDM seals and 0°C to +80°C with FKM seals, accommodating a variety of gases including alkalis, acids, and bleaching agents.

BSP parallel ports are female gender, compatible with RS stainless steel compression fittings for secure and leak-free connections. This valve is suitable for industrial, laboratory, HVAC, and water treatment applications requiring controlled gas flow.

Durable polypropylene body ensures chemical resistance and longevity. 3 port configuration provides versatile flow control options. 110V AC supply voltage appropriate for standard industrial use. Lockable manual override facilitates maintenance and manual operation.

IP65 rated connector ensures electrical safety and dust protection. Operating fluid temperature range supports a wide variety of applications. Low power consumption prolongs operational efficiency and reduces energy costs.

Manufactured in Germany, guaranteeing stringent quality controls. BSP female ports convenient for standard industrial fittings.

This Burkert solenoid valve 078557 is a reliable choice for precise gas control in industrial settings. EnvMart offers extensive category selections in Solenoid Valves and related automation components.
