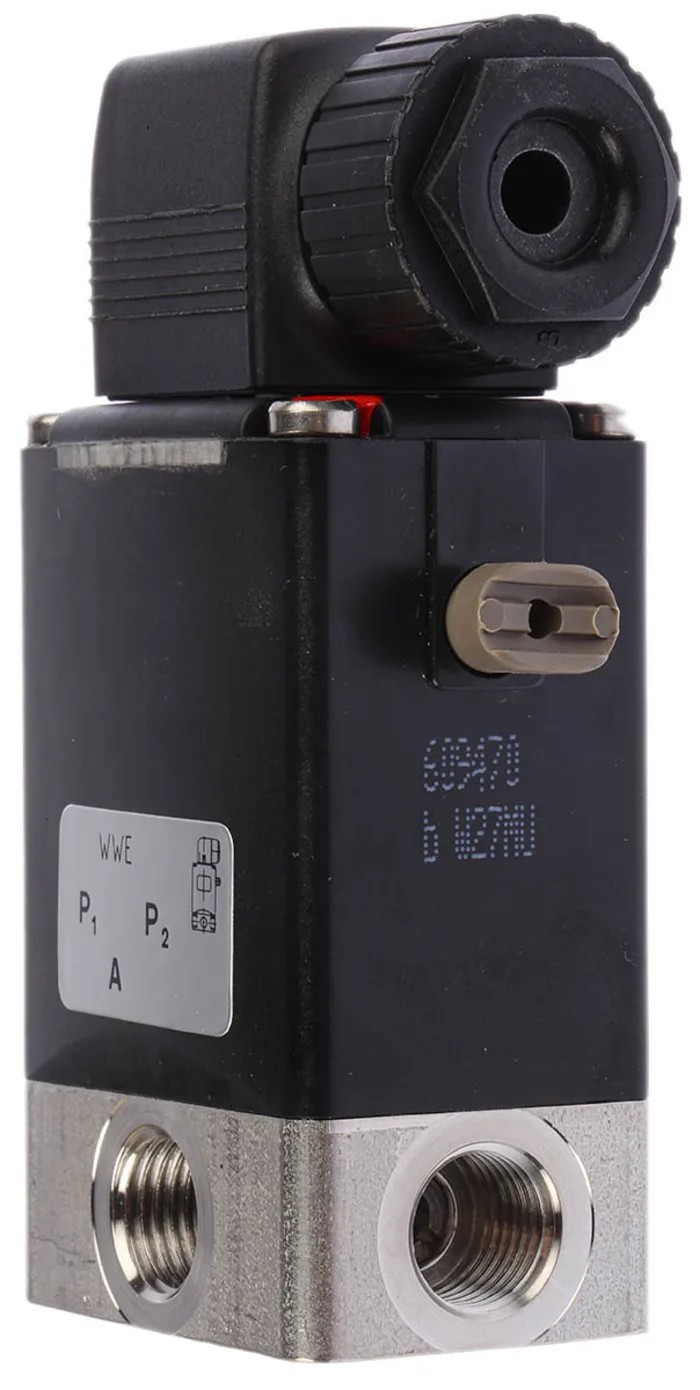

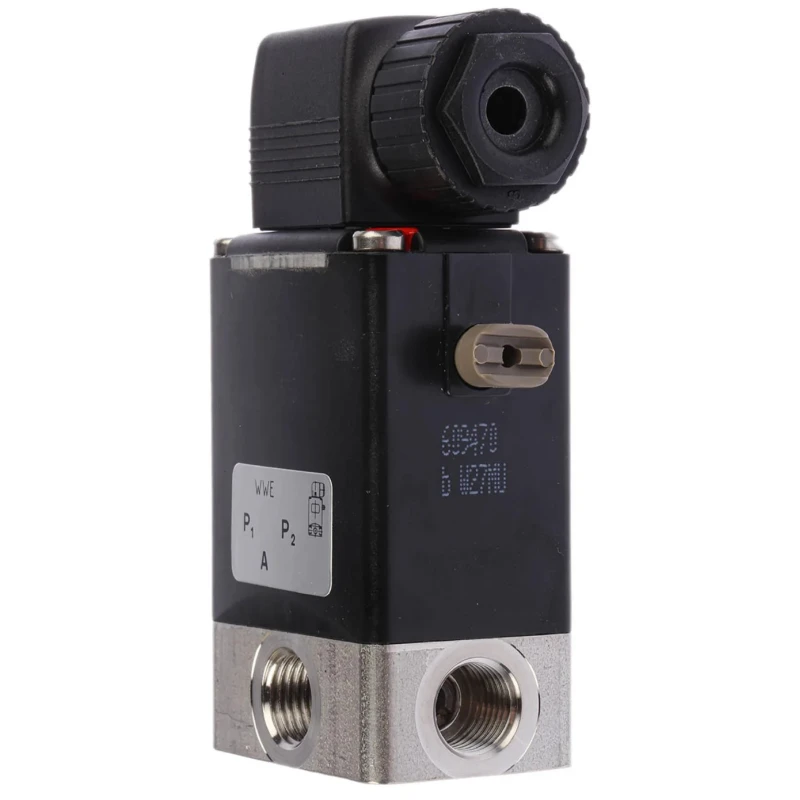

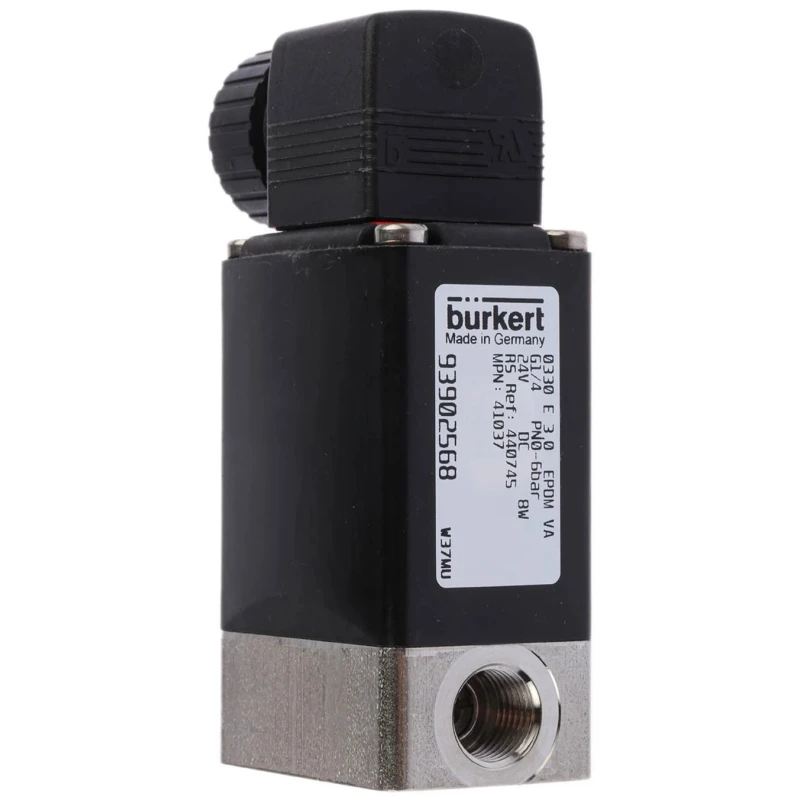

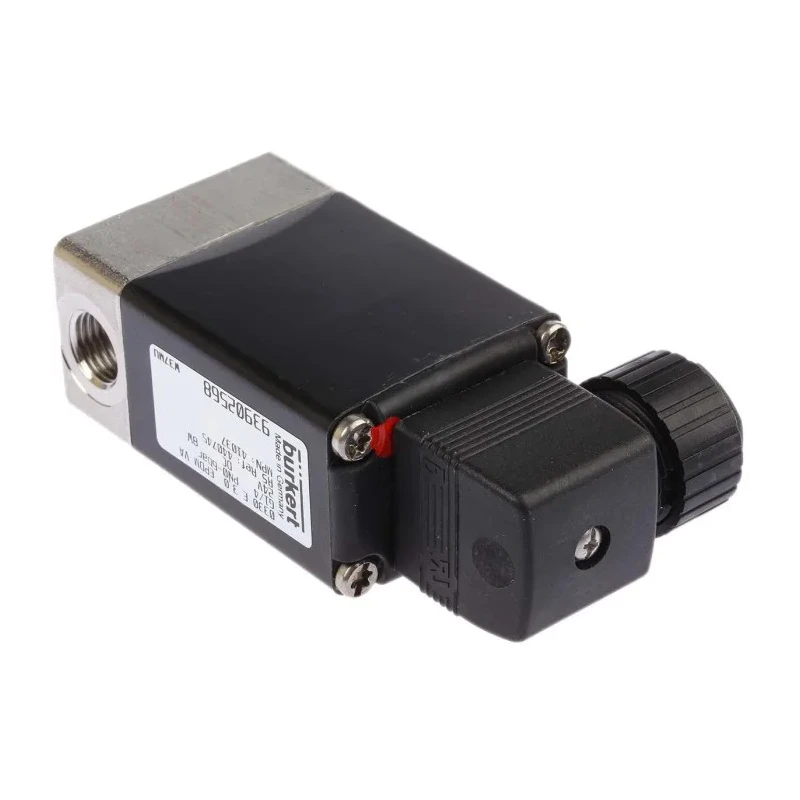

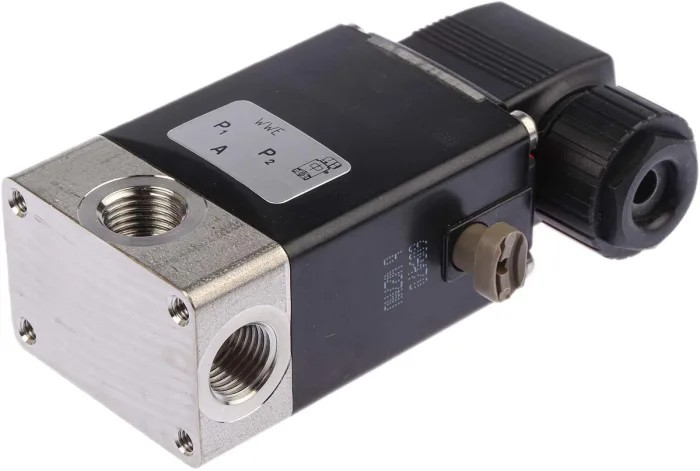

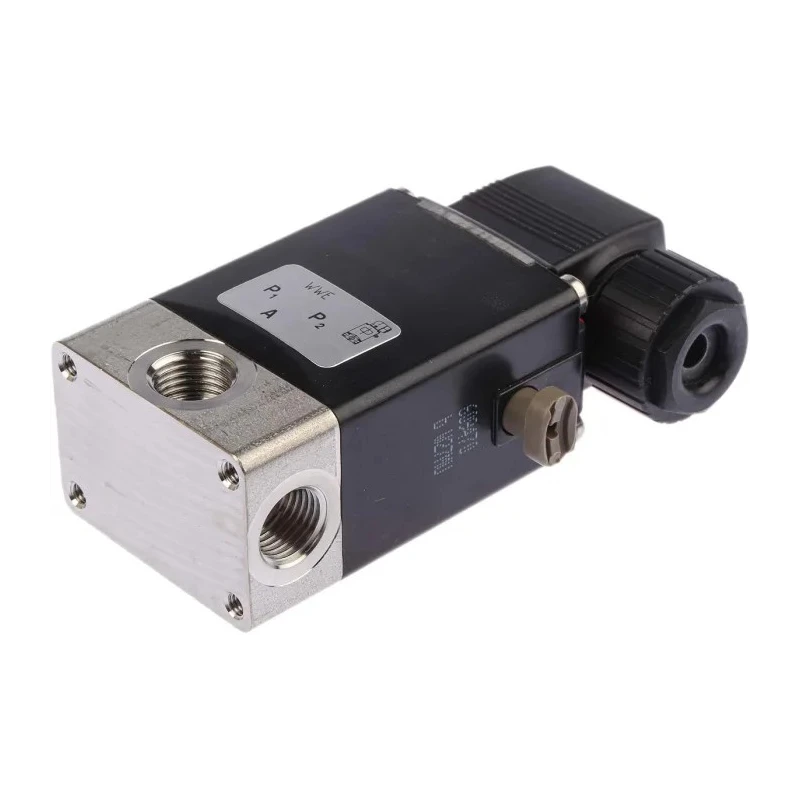

Burkert Stainless Steel 3-Port Solenoid Valve 24V DC, Threaded 1/4 in G Inlet, 6.35 mm Outlet, Model 041037

Burkert 041037 is a stainless steel bodied 3-port solenoid valve designed for industrial fluid control applications. It operates at 24V DC voltage and provides reliable switching of aggressive media including gases and liquids. The valve features female threaded BSP parallel inlet and outlet ports sized at 1/4 inch G thread and 6.35 mm outlet respectively, compatible with stainless compression fittings.

This normally open/closed valve (NO/NC) is rated for a maximum operating pressure of 6 bar, with a fluid temperature range from -30°C to 55°C, making it suitable for harsh environments. The valve’s compact 3 mm orifice enables precise flow control, with a flow factor Kv of 0.14 m³/h. It delivers fast actuation with maximum opening and closing times of 20 milliseconds.

Constructed from robust stainless steel, the valve is made to withstand aggressive media and operate efficiently under demanding conditions. It comes with an IP65 rated 3-pin DIN connector that can be positioned through 360 degrees in 90-degree increments, facilitating flexible installation orientations.

Power consumption for this valve is 5VA/8W during constant operation with an AC inrush power of 30VA. It does not include servo assist and has no hazardous area certification. Its lockable manual override and zero head pressure capability further enhance usability. The product is manufactured in Germany, ensuring high-quality standards.

This solenoid valve is ideal for industrial, manufacturing, mechanical, and fluid power systems requiring compact, high-speed, and reliable valve operation with aggressive media compatibility.

Constructed with stainless steel body for durability and resistance to aggressive media. Features 3 ports with female threaded inlet and outlet connections. Designed for maximum operating pressure up to 6 bar and temperature range from -30°C to 55°C.

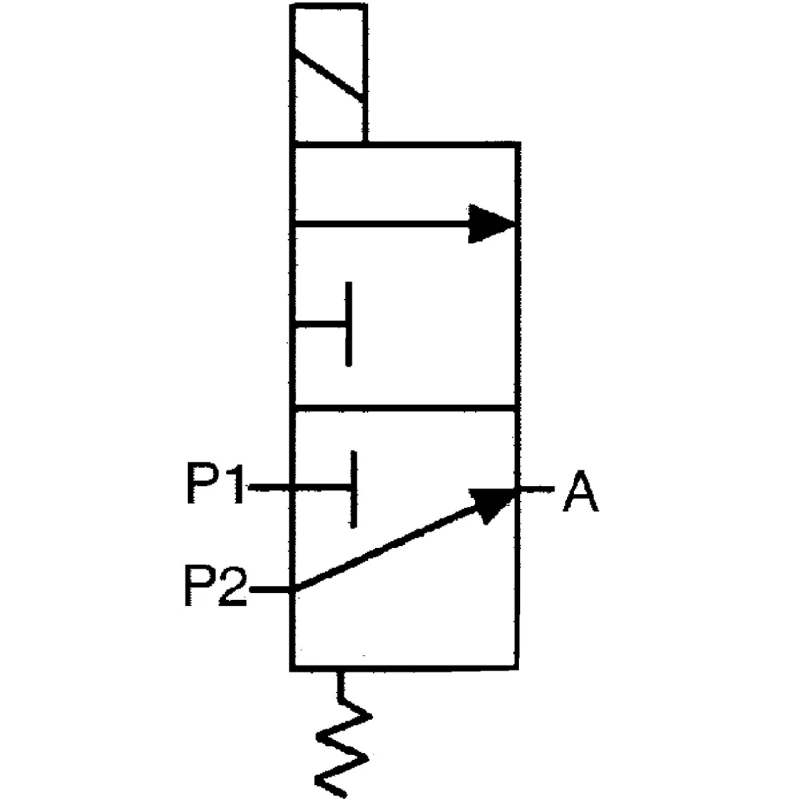

Valve has normally open/closed (NO/NC) default position for versatile control. Includes BSP parallel ports compatible with stainless compression fittings. Compact orifice diameter of 3 mm allows precise fluid control. Maximum opening and closing times are 20 milliseconds ensuring fast response.

Power consumption is 5VA/8W constant with a 30VA AC inrush. Rated IP65 with 3-pin DIN connector positionable in 90-degree increments. Suitable for aggressive gases and fluids, usable in industrial and mechanical fluid power applications.
