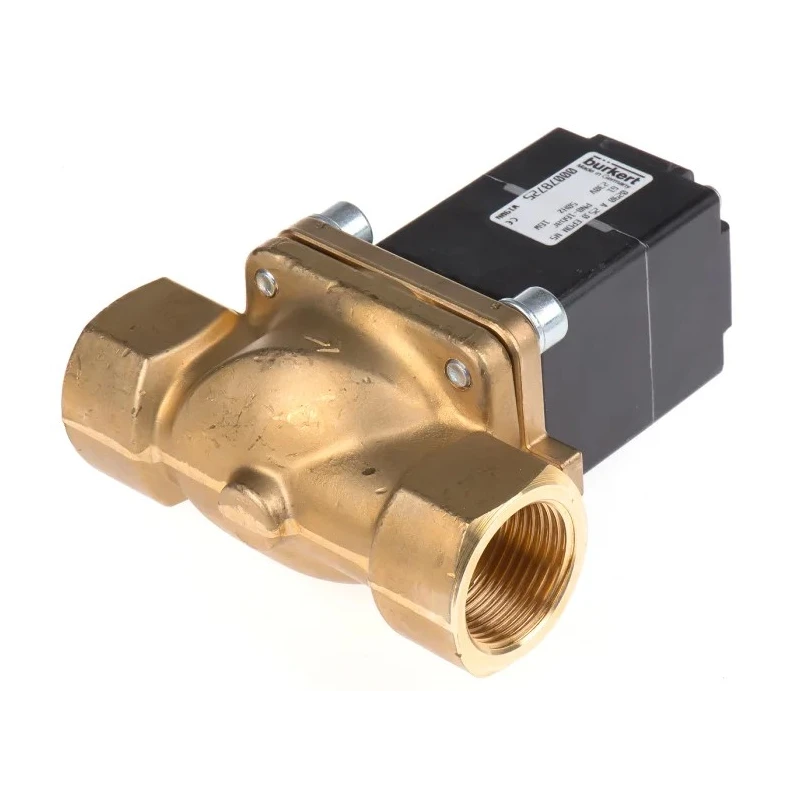

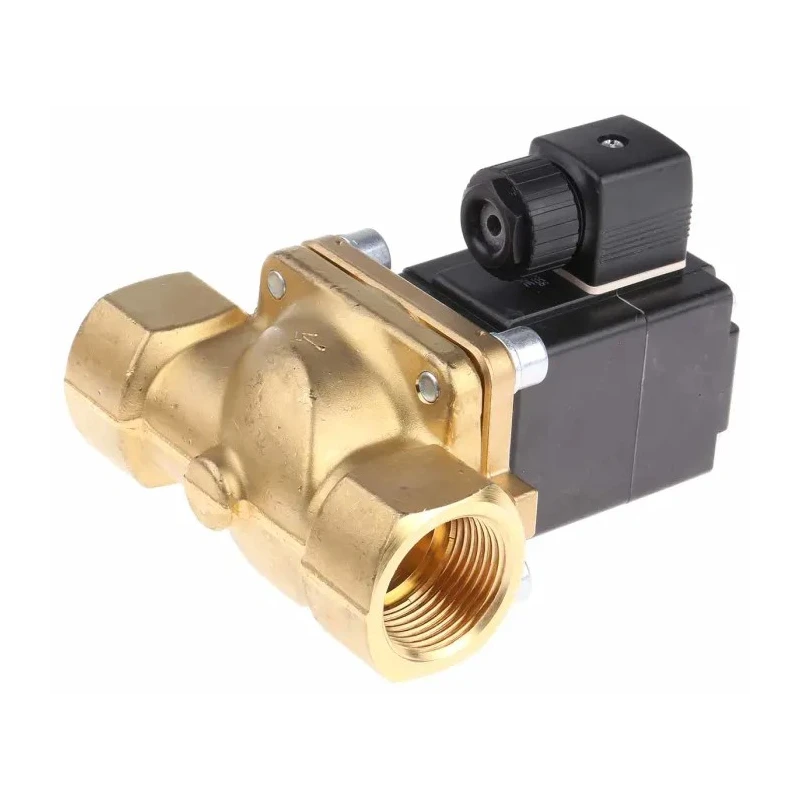

Burkert Solenoid Valve 2 Port NC Brass Body 25 mm Orifice 230V AC 16 bar Max Pressure 078725
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 16 bar |
| Model | 078725 |
| Series | 0290 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Orifice Diameter | 25mm |
| Supply Voltage | 230V ac |
| Default Valve Position | NC |
| Maximum Opening Time | 250ms |
| Flow Factor Kv | 10m³/h |
| Maximum Closing Time | 2000ms |
| RS PRO Solenoid Valve, 2 Port, NC, 220V 1 in, 1 inRS Stock No. | 255-4172Brand: RS PRO |
| 1"WRC SOL VALVE 240 VACBrand | Burkert |
| Burkert Solenoid Valve 141246, 2 Port, NC, 230V acBrand | Burkert |
Key Features
- Maximum operating pressure of 16 bar ensures robust performance under high pressure.
- Compact brass body suited for fluid power and plumbing pipelines.
- Valve features a servo-assisted diaphragm with quiet soft-kick opening.
- Operating temperature range from 0°C to 55°C suitable for normal industrial environments.
- Maximum opening time of 250 ms and maximum closing time of 2000 ms for efficient operation.
- Flow factor Kv is 10 cubic meters per hour, enabling high flow rates.
- Equipped with a 3-pin DIN connector adjustable through 360 degrees in 90-degree increments.
- Zero differential pressure operation allows valve opening without pressure differences.
Product Description
Burkert 078725 solenoid valve is a 2-port normally closed valve designed with a durable brass body and a 25 mm orifice. It operates at 230V AC supply voltage and is suitable for gas and liquid fluid handling applications. The valve is part of the 0290 series featuring servo-assisted diaphragm technology optimized for quiet, efficient operation.
This valve is uniquely constructed with a universal coupled diaphragm system and a damped design for noise reduction during closing. The integrated soft-kick function ensures gentle material handling during the opening process. It can open without differential pressure, supported by fixed coupling of the diaphragm to the plunger.
The Burkert 078725 valve supports a maximum operating pressure of 16 bar and handles fluids safely within an operating temperature range from 0°C to 55°C. The maximum opening and closing times are 250 milliseconds and 2000 milliseconds respectively, allowing for responsive flow control.

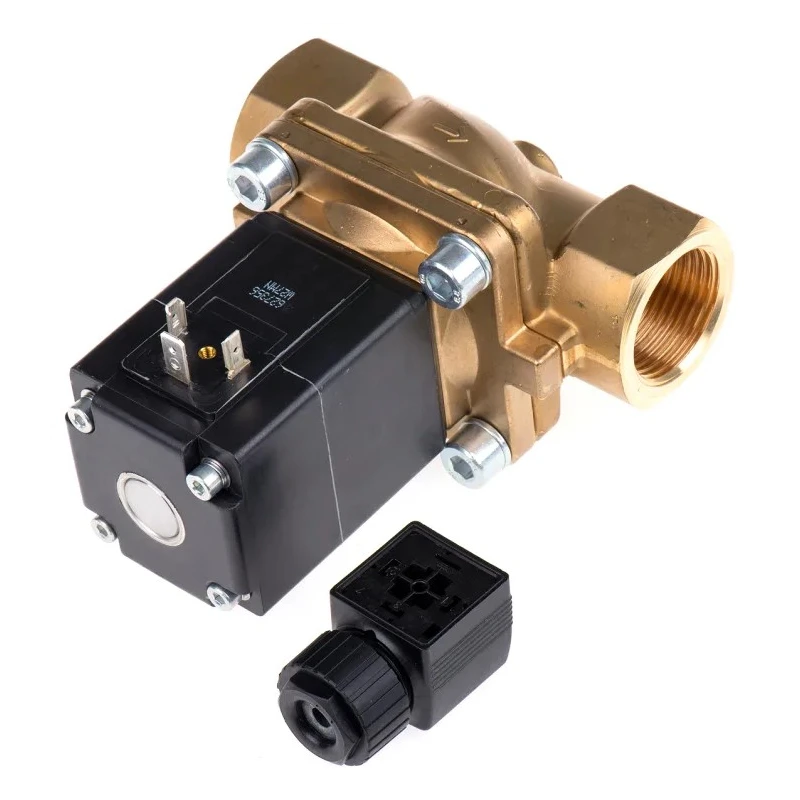

The flow factor Kv of 10 m³/h indicates efficient flow capacity through the valve. The 3-pin DIN connector is rotatable through 360 degrees in 90° increments, allowing flexible installation arrangements. The solenoid coils are moulded with chemical-resistant epoxy to ensure electrical safety and durability.
This solenoid valve is commonly used in industrial, laboratory, water treatment, HVAC, and general fluid control applications where reliable on/off valve function is required. The valve is suitable for domestic water supplies and neutral oil-free fluids and gases.
Maximum operating pressure: 16 bar. Supply voltage: 230V AC. Number of ports: 2 (normally closed). Orifice diameter: 25 mm. Valve body material: Brass. Flow factor Kv: 10 m³/h. Operating temperature range: 0°C to 55°C. Opening time: 250 ms, Closing time: 2000 ms.
3-pin DIN connector with 360° adjustability. Made in Germany. Explore more Solenoid Valves and related industrial valve fittings on EnvMart for advanced fluid power solutions.
