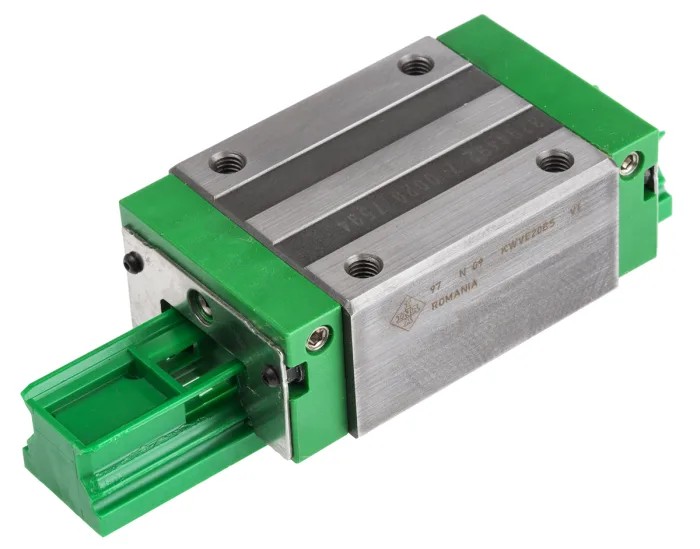

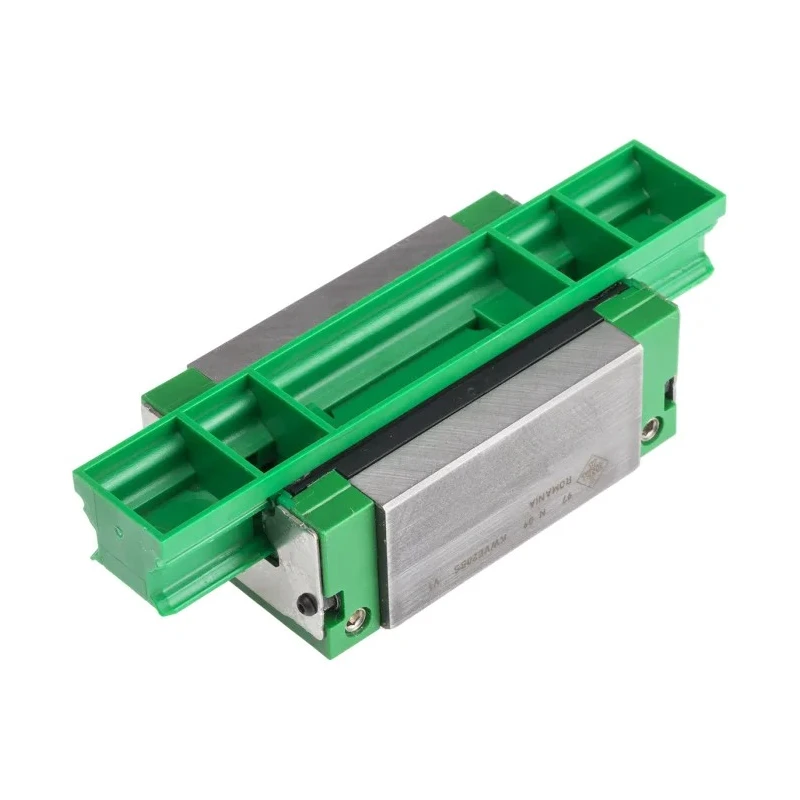

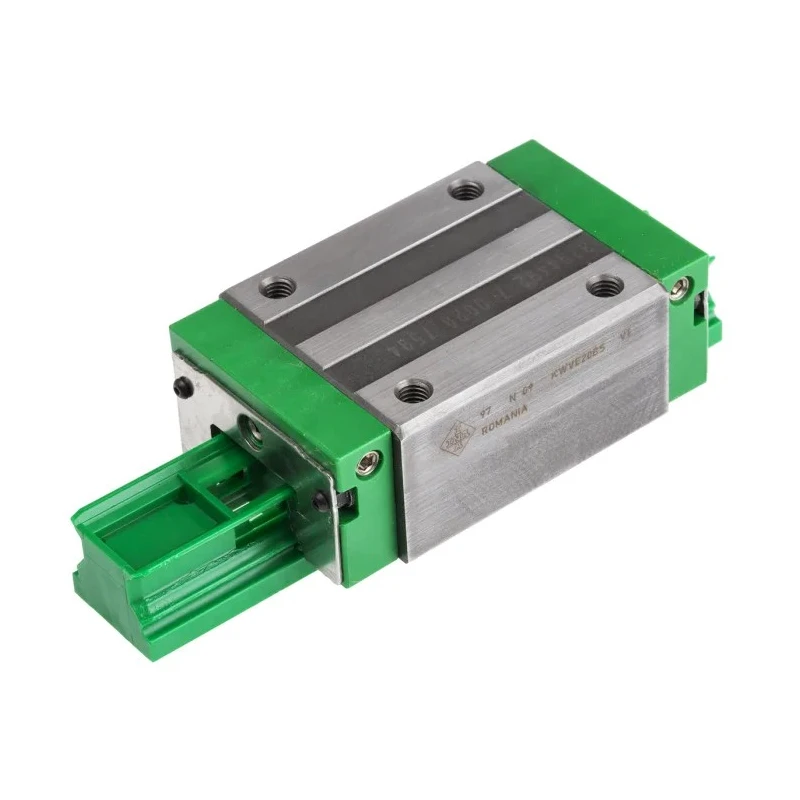

INA Linear Guide Carriage KWVE20-W-UG-V1-G3 KWVE20 Series, 13100 N Dynamic Load KWVE20-W-UG-V1-G3
Specifications
| Country of Origin | India |
|---|---|
| Brand | INA |
| Model | KWVE20-W-UG-V1-G3 |
| Series | KWVE20 |
| Static Load Rating | 27000N |
| Dynamic Load Rating | 13100N |
| Carriage Length | 71.4mm |
| Carriage Width | 63mm |
Key Features
- Four-row linear recirculating ball bearing design ensures precise linear motion.
- Preloaded guidance system suitable for long, unlimited stroke lengths.
- Dynamic load rating of 13100 N and static load rating of 27000 N.
- Carriage length is 71.4 mm and width is 63 mm for compact fitment.
- Capable of handling accelerations up to 150 m/s² and speeds up to 360 m/min.
- Designed for high running and positional accuracy with low friction.
- No specific standards or approvals applied to this product.
- Includes full complement with quad-spacers for enhanced load carrying capacity.
Product Description
INA KWVE20-W-UG-V1-G3 linear guide carriage from the KWVE20 series offers a robust four-row linear recirculating ball bearing and guideway assembly optimized for applications requiring high load carrying capacity and precision linear guidance. With a dynamic load rating of 13100 N and static load rating of 27000 N, this carriage ensures reliable and accurate linear movement.
The carriage features a compact size with a length of 71.4 mm and width of 63 mm, providing a rigid and precise mounting solution. The preload design supports long, unlimited stroke lengths and enables accelerations up to 150 m/s² and speeds reaching 360 m/min, making it suitable for demanding industrial environments.
Constructed to minimize friction and maximize positional accuracy, this linear guide carriage is ideal for use in industrial automation systems, CNC machine tools, manufacturing equipment, and material handling machinery. The full complement design includes quad-spacers to enhance load distribution and rigidity.
This component does not carry any specific standards or approvals, reflecting its straightforward application focus. Standard accessories typically include plastic dummy guideways, plastic closing plugs, and lubrication connectors for ease of use and maintenance.
Four-row linear recirculating ball bearing design for accurate motion. Preloaded system for high load capacity and rigidity. Dynamic load rating of 13100 N and static load rating of 27000 N. Compact carriage dimensions: 71.4 mm length and 63 mm width.
Supports accelerations up to 150 m/s² and speeds up to 360 m/min. Suitable for heavy-duty industrial linear guidance applications. Includes full complement with quad-spacers for enhanced performance. Low friction and high positional accuracy design.
Ideal for machine tools, automation, and material handling industries. Explore more INA linear motion products and accessories in EnvMart’s Mechanical Machinery & Spares category for tailored solutions to your industrial requirements.
Explore more products in our Linear Guide Block category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this model is 13100 N.
The carriage has a length of 71.4 mm and a width of 63 mm.
The static load rating is 27000 N.
It can achieve speeds up to 360 m/min.
This unit supports accelerations up to 150 m/s².
It features a four-row linear recirculating ball bearing design.
It is suitable for industrial automation systems, CNC machine tools, manufacturing equipment, and material handling machinery.
Standard accessories typically include plastic dummy guideways, plastic closing plugs, and lubrication connectors.
The preload design supports long, unlimited stroke lengths and enhances load capacity and rigidity.
It is manufactured in India.
The quad-spacers enhance load distribution and rigidity, improving overall performance.
This product does not carry any specific standards or approvals.
