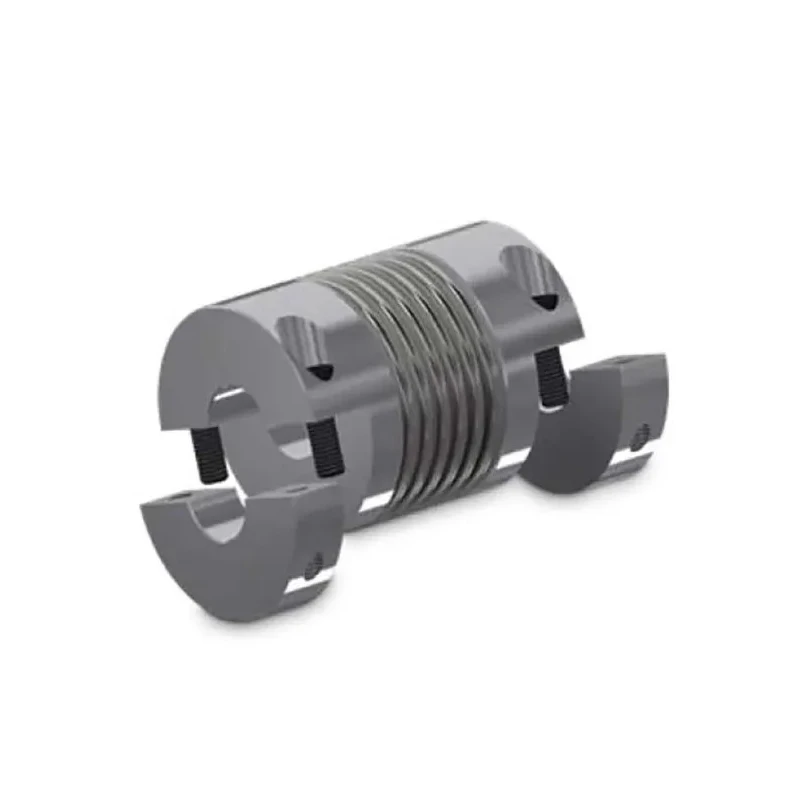

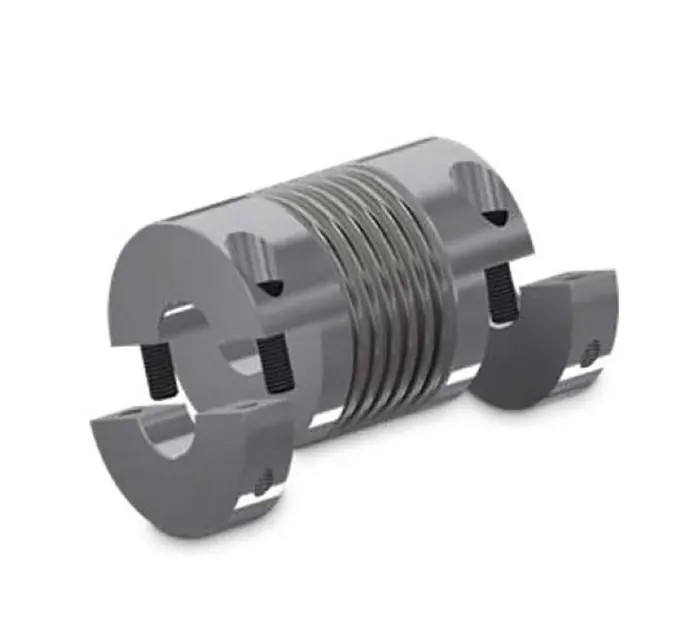

Huco Precision Bellows Flexible Coupler Clamp Style 82 mm OD, 91 mm Length, Aluminium Hub, Stainless Steel 592.82.5858

Huco 592.82.5858 Precision Bellows Flexible Coupler Clamp Style is engineered for precision mechanical power transmission with superior kinematic performance. Featuring an aluminium alloy hub combined with stainless steel bellows, this coupling is designed to accommodate misalignments while maintaining torque integrity up to 150 Nm and operating speeds as high as 6900 rpm.

The coupling’s torsional stiffness of 128000 Nm/rad offers excellent resistance to twist under load, making it ideal for applications requiring precise motion control and stability. Its clamp style hub connection ensures secure mounting and ease of assembly.

Operating temperature ranges from -30°C to 120°C, allowing the coupling to perform reliably in various industrial environments. Misalignment capabilities include angular misalignment up to 1.5°, parallel misalignment up to 0.2 mm, and axial misalignment up to 0.5 mm, enabling it to accommodate shaft deviations effectively.

As part of the Flex K series, this model offers flexibility in stiffness, radial compensation, and axial motion through different convolution options available across the series. The M10 screw size facilitates robust clamping for enhanced operational security.

This flexible coupling is highly suitable for use in industrial machinery, fluid power systems, HVAC equipment, manufacturing lines, and other mechanical power transmission applications demanding precision and durability.

Clamp style design provides secure shaft connection. Suitable for speeds up to 6900 rpm with torque rating of 150 Nm. Torsional stiffness of 128000 Nm/rad ensures excellent kinematic properties. Accommodates angular misalignment of 1.5 degrees and parallel displacement up to 0.2 mm.

Axial misalignment capability of 0.5 mm allows flexible operation. Hub material is lightweight aluminium alloy for durability and corrosion resistance. Bellows are made from stainless steel suitable for temperature range from -30°C to 120°C.

Uses M10 screw size for secure clamping. Part of the Flex K series offering multiple convolution options for stiffness and compensation. Designed for industrial machinery, mechanical power transmission applications, and fluid power systems.
