NSK-RHP Bearing Insert 35 mm ID 72 mm OD Steel Screw Lock Round Bore 0.67 mm Width 1035-35G R

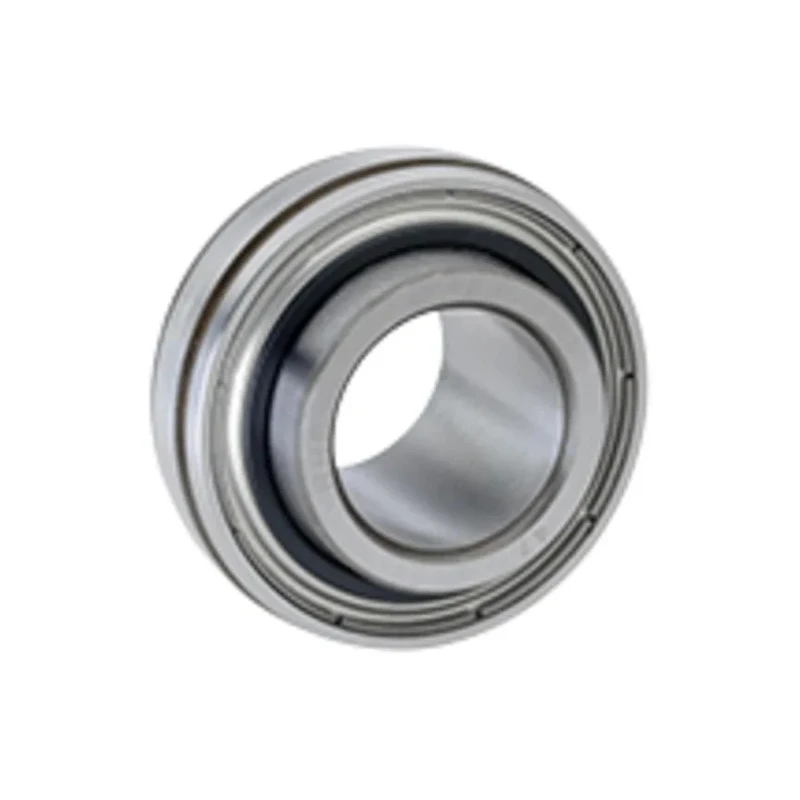

The NSK-RHP 1035-35G R bearing insert is engineered with precision steel construction, featuring a 35 mm inside diameter and a 72 mm outside diameter. This bearing insert is designed for robust mechanical applications requiring reliable load support and secure fastening.

This bearing insert utilizes a screw locking mechanism that secures it firmly onto the shaft, ensuring stability during operation. The round bore and overall width of 0.67 mm provide compatibility with standard housing units and shafts.

It possesses a static load rating of 15.3 kN and a dynamic load rating of 25.7 kN, making it suitable for moderate load capacities. The bearing can handle rotational speeds up to 4500 rpm, supporting various industrial uses such as manufacturing machinery, HVAC systems, and mechanical power transmission.

For axial loads exceeding the screw lock capacity, a shoulder on the shaft should be implemented to prevent axial forces from being transmitted through the set screws, thus protecting the bearing and shaft integrity.

No specific industry standards or approvals are provided for this model, but NSK-RHP bearings are widely recognized for quality in industrial equipment. High-quality steel construction ensures durability. Screw lock mechanism guarantees secure fitting on shafts.

Round bore design allows versatile applications. Static and dynamic load ratings cater to demanding mechanical environments. Supports limiting speeds up to 4500 rpm. Recommended shaft shoulder use to handle axial loads safely.

This bearing insert is suitable for industrial, manufacturing, and mechanical equipment maintenance, providing a reliable rotary bearing solution. Browse more Bearing Inserts and rotary bearing units on EnvMart for complementary mechanical components and spares.
