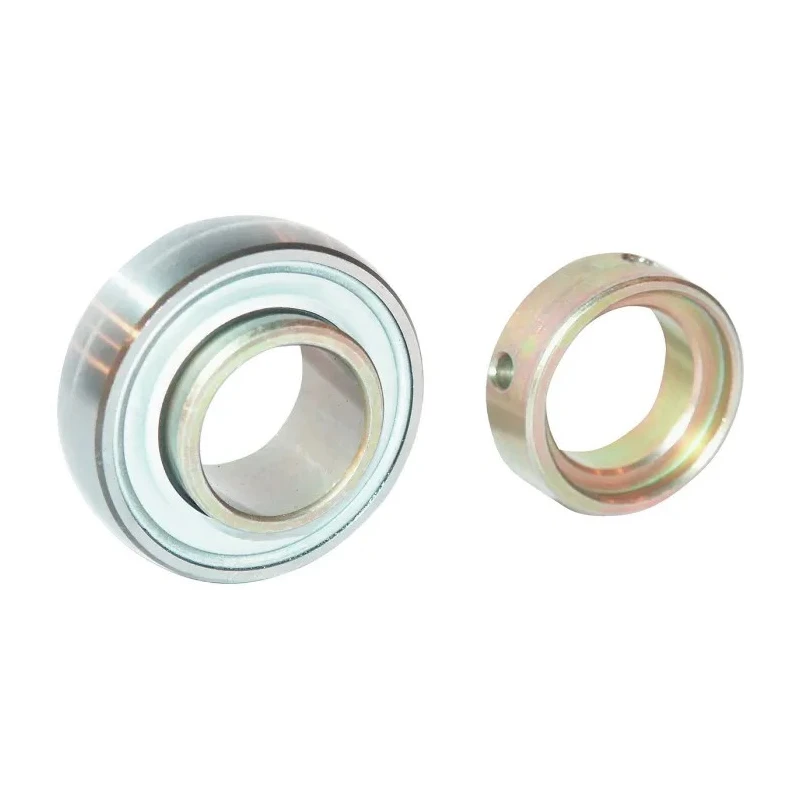

INA Bearing Insert 17 mm ID 40 mm OD Radial Ball Bearing GE Series GRAE17-XL-NPP-B

Free Delivery in India | Lowest Global Shipping Charges

INA Bearing Insert 17 mm ID 40 mm OD Radial Ball Bearing GE Series GRAE17-XL-NPP-B



Category Bearing Insert Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Model	GRAE17-XL-NPP-B
Series	GE
Overall Width	28.6mm
Outside diameter	40mm
Inside Diameter	17mm
Bore Type	Round
Static Load Rating	10.1kN
Better World Claim	Extended Product Life, Saves Energy
Dynamic Load Rating	4.75kN
Radial insert ball bearings with a profiled bore are highly suitable where	shafts must transmit very high torques
Radial insert ball bearings with a rubber interliner are highly suitable where	Vibrations and shocks must be supported

Key Features

Radial insert ball bearing with extended inner ring for smoother running and less tilting.
Equipped with rubber interliner to support vibrations and shocks.
Spherical outer ring suitable for compensating static angular misalignments.
High static load rating of 10.1 kN ensures durability under heavy loads.
Dynamic load rating of 4.75 kN supports continuous operation at variable speeds.
Overall width of 28.6 mm allows for compact bearing arrangements.
Bore type is round, suited for drawn shafts and economical bearing designs.
Part of the GE series, emphasizing extended product life and energy savings.

Product Description

INA GRAE17-XL-NPP-B bearing insert features a 17 mm inside diameter and 40 mm outside diameter, designed to provide reliable radial load support in demanding industrial environments. This radial insert ball bearing incorporates an extended inner ring that reduces tilting, ensuring smoother operation and increased service life.

Equipped with a spherical outer ring, this bearing insert effectively compensates for static angular misalignments caused by shaft mounting inaccuracies and construction tolerances. The excellent sealing design makes it resistant to harsh conditions such as dust, contamination, moisture, stone impacts, and shocks.

The bearing incorporates a rubber interliner which provides effective vibration and shock absorption while also damping running noise, ideal for environments with variable dynamic loads.

The GRAE17-XL-NPP-B belongs to the GE series, known for extended product life and energy efficiency benefits, making it a sustainable choice in mechanical and fluid power systems. The round bore is optimized for use with drawn shafts, promoting easy fitting and economical bearing arrangements.

Key use cases include applications in industrial machinery, manufacturing equipment, HVAC systems, agricultural machinery, and general mechanical assembly where durable, high-performance bearing inserts are critical.

Radial insert ball bearing with an extended inner ring reduces tilting for smooth rotation. Rubber interliner supports vibrations and shocks while damping noise. Spherical outer ring compensates for static angular misalignments effectively.

Robust sealing protects against dust, moisture, and mechanical shocks. High static load rating of 10.1 kN and dynamic load rating of 4.75 kN. Compact overall width of 28.6 mm suitable for tight installation spaces. GE series product emphasizes extended life and energy savings.

Designed for drawn shafts with a round bore type.

This INA bearing insert is engineered to meet the demands of modern industrial and mechanical systems, offering durability, ease of installation, and reliable performance aligned to rigorous quality standards. Browse more INA Bearing Inserts and related rotary bearing components on EnvMart.
