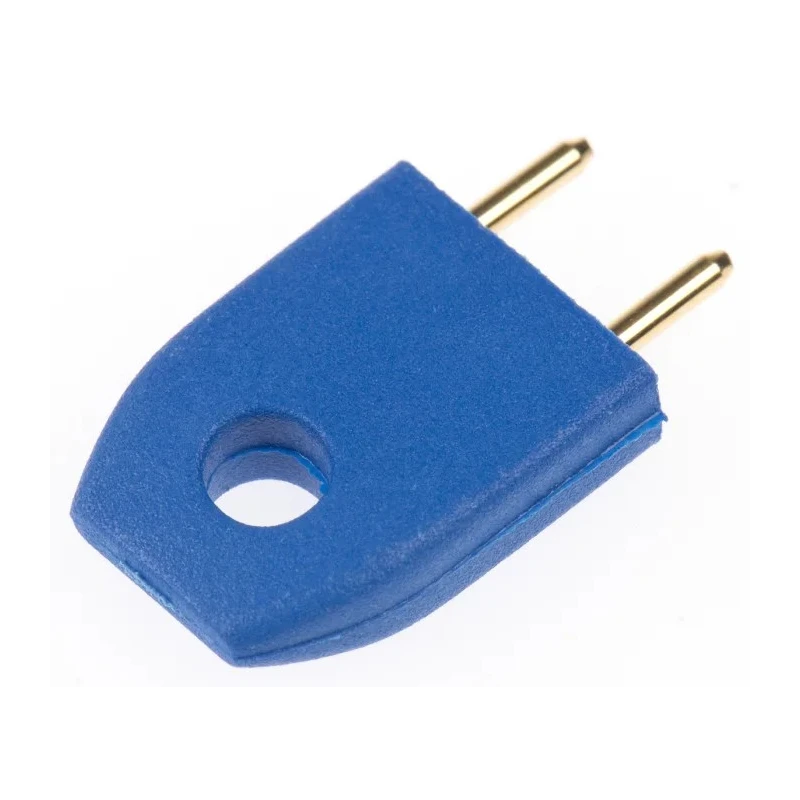

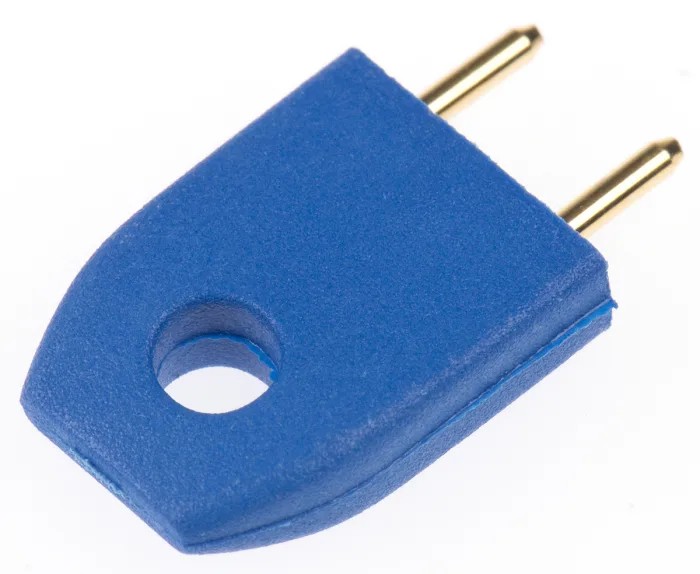

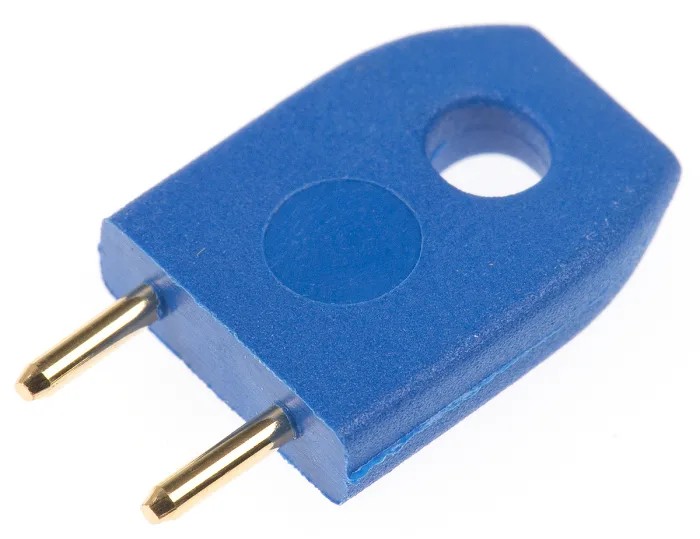

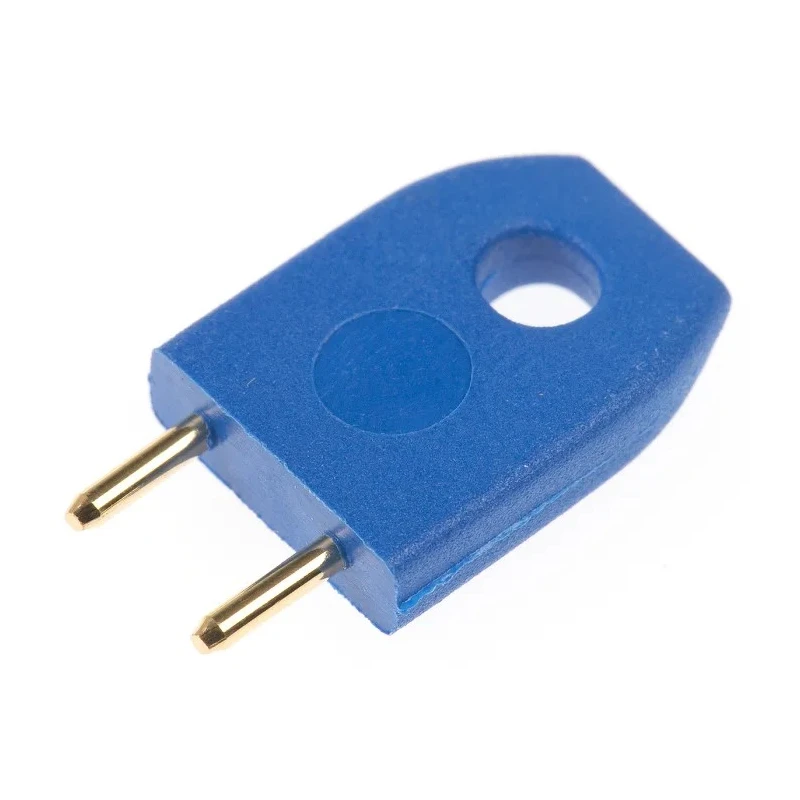

HARWIN Shorting Link Straight Male Blue Closed Top 2 Way 1 Row 5.08 mm Pitch D3086-97
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Colour | Blue |
| Orientation | Straight |
| Current | 10A |
| Length | 9.5mm |
| Model | D3086-97 |
| Depth | 3.2mm |
| Width | 12.7mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | D308 |
| Sub Type | Closed Top |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- The connector features a blue polybutylene terephthalate housing for insulation and durability.
- It supports a current rating of 10 amperes, suitable for moderate power circuits.
- The contact pins are made of brass with gold plating to ensure reliable conductivity and corrosion resistance.
- This shorting link has 1 row with a length of 9.5 mm and width of 12.7 mm, ideal for compact PCB layouts.
- Its straight orientation facilitates easy insertion into PCB sockets, commonly used for hardware programming connections.
- The product conforms to the D308 series standard with no additional certifications required.
Product Description
HARWIN D3086-97 shorting link is a high-quality connector designed as a straight male closed top jumper with 2 contacts and a 5.08 mm pitch. The blue housing is made from polybutylene terephthalate (PBT), a robust material providing excellent insulation and mechanical stability.
The brass contacts feature gold plating that guarantees superior electrical conductivity and long-term corrosion resistance, making it ideal for reliable PCB connections in industrial and laboratory electronics.

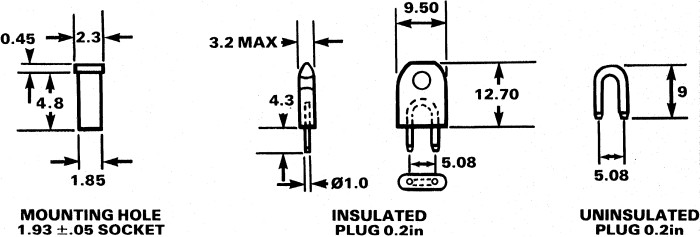

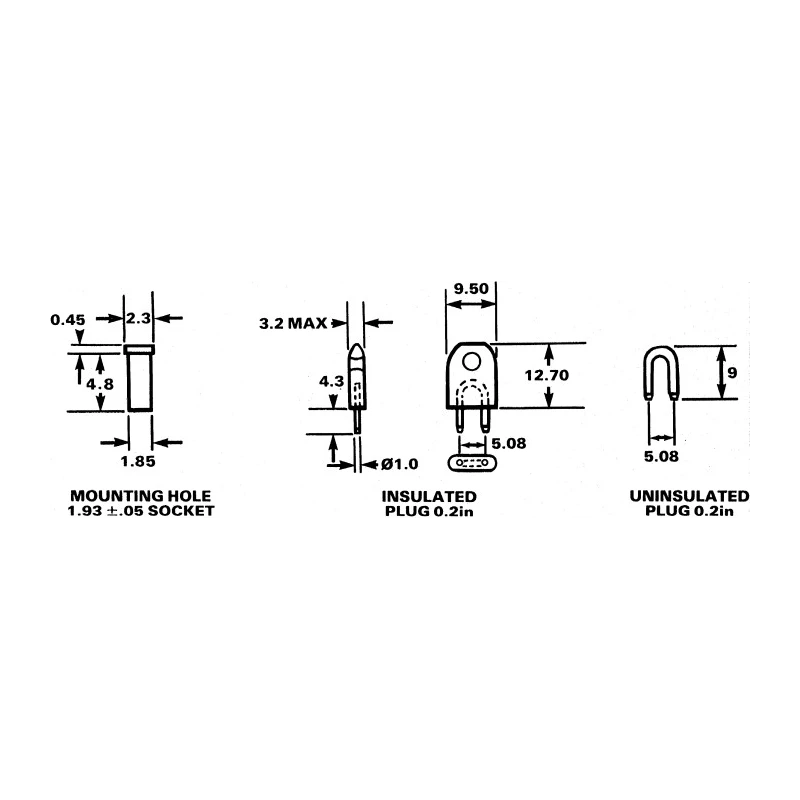

This shorting link plug is part of the D308 series, featuring a compact footprint with dimensions of 9.5 mm length, 12.7 mm width, and 3.2 mm depth, arranged in a single row. Its straight orientation allows straightforward insertion into PCB sockets, widely utilized for temporary shorting or configuration during hardware programming and testing.
Rated for 10A current, this component fits various electronic designs requiring dependable bridging solutions. It is designed with a closed top for enhanced safety and protection of the contact points.
Common use cases include industrial electronics assemblies, test and measurement equipment, control panels, and communication device prototypes. The shorting link facilitates modular PCB configurations and ensures efficient circuit connectivity without permanent soldering.
The connector features a blue polybutylene terephthalate housing for insulation and durability. It supports a current rating of 10 amperes, suitable for moderate power circuits. The contact pins are made of brass with gold plating to ensure reliable conductivity and corrosion resistance.
This shorting link has 1 row with a length of 9.5 mm and width of 12.7 mm, ideal for compact PCB layouts. Its straight orientation facilitates easy insertion into PCB sockets, commonly used for hardware programming connections.
The product conforms to the D308 series standard with no additional certifications required. Explore more electronic connectors at EnvMart to meet your PCB and wiring harness needs with precision and reliability.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 10 amperes, making it suitable for moderate power circuits.
The shorting link has a length of 9.5 mm, a width of 12.7 mm, and a depth of 3.2 mm.
The housing is made from polybutylene terephthalate (PBT), which provides excellent insulation and mechanical stability.
This model features 2 contacts arranged in a single row.
The pitch of the HARWIN D3086-97 shorting link is 5.08 mm.
The contact pins are made of brass with gold plating to ensure reliable conductivity and corrosion resistance.
It has a straight orientation, which facilitates easy insertion into PCB sockets.
It conforms to the D308 series standard.
Common applications include industrial electronics assemblies, test and measurement equipment, control panels, and communication device prototypes.
No additional certifications are required for this shorting link.
The connector features a blue color.
The country of origin for this product is India.
