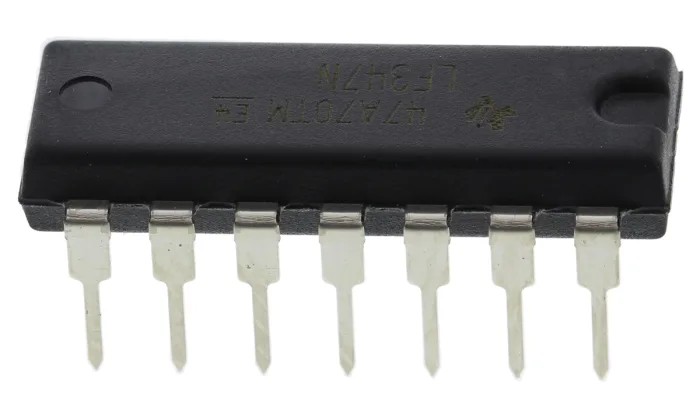

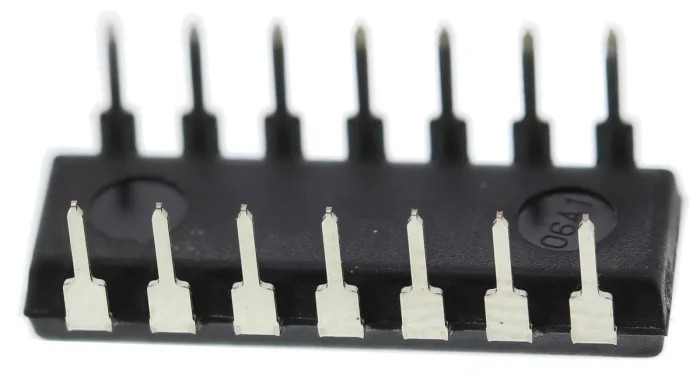

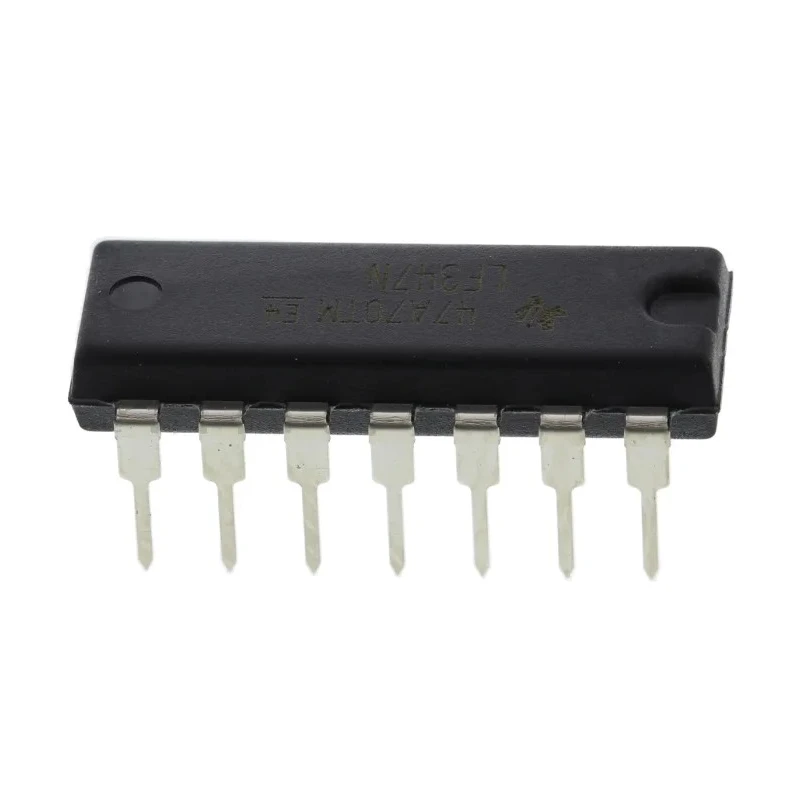

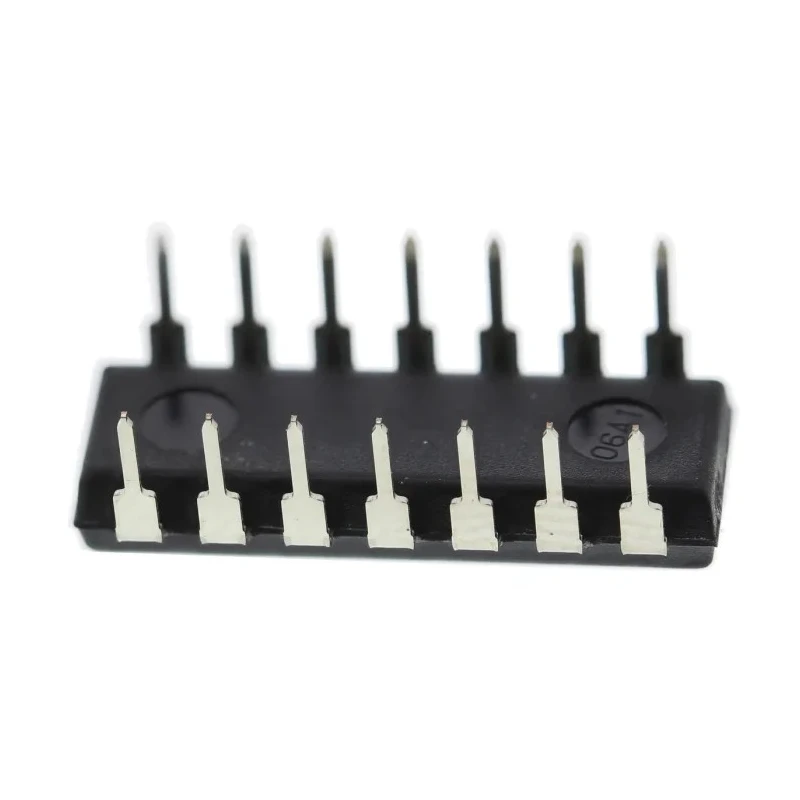

Texas Instruments Operational Amplifier 4-Channel 3 MHz 14-Pin PDIP LF347N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LF347N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LF347 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 8 nA |
| Vos - Input Offset Voltage | 13 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 4 nA |
Key Features
- The device operates with a supply voltage range from -18V to 18V.
- It provides a gain bandwidth product of 3 MHz and a slew rate of 13 V/μs.
- Input offset voltage is specified at 13 mV with an input bias current of 8 nA.
- The operational amplifier has a pin count of 14 pins in a PDIP package format.
- Operating temperature range spans from 0°C to 70°C ensuring reliable performance in various environments.
- The amplifier series is LF347 with JFET input type for high input impedance.
- This device is intended for applications in electronics, electrical circuits, and semiconductor amplification.
Product Description
Texas Instruments LF347N Operational Amplifier is a high-performance JFET input operational amplifier featuring four independent channels with a gain bandwidth of 3 MHz. The device is packaged in a 14-pin Plastic Dual In-Line Package (PDIP) suitable for through-hole mounting, making it easy to integrate into electronic circuit boards.
Operating with a supply voltage range from -18 V to 18 V, the LF347N supports diverse analog signal processing applications requiring reliable amplification. With an input offset voltage of 13 mV and input bias currents of 8 nA, it offers precision performance for sensitive analog inputs.
The slewing capability of 13 V/μs allows the amplifier to handle relatively fast signal changes, beneficial for audio, instrumentation, and control systems. The operating temperature range from 0°C to 70°C enables usage in typical industrial and commercial environments.
The component's dimensions are compact, measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, fitting standard electronic assemblies seamlessly.
This device is well-suited for applications including laboratory instrumentation, industrial control, and electronic signal amplification where stable and low-noise operation is essential.
The device operates with a supply voltage range from -18V to 18V. It provides a gain bandwidth product of 3 MHz and a slew rate of 13 V/μs. Input offset voltage is specified at 13 mV with an input bias current of 8 nA. The operational amplifier has a pin count of 14 pins in a PDIP package format.
Operating temperature range spans from 0°C to 70°C ensuring reliable performance in various environments. The amplifier series is LF347 with JFET input type for high input impedance. Dimensions of the component are 19.3 mm length, 6.35 mm width, and 4.57 mm height.
This device is intended for applications in electronics, electrical circuits, and semiconductor amplification. Browse our extensive range of Operational Amplifiers at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LF347N operational amplifier is 3 MHz.
It operates with a supply voltage range from -18V to 18V.
The input offset voltage is specified at 13 mV.
This model features four independent channels.
The maximum operating temperature is 70°C.
It is packaged in a 14-pin Plastic Dual In-Line Package (PDIP).
The slew rate is 13 V/μs.
The dimensions are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input bias current is specified at 8 nA.
The minimum operating temperature is 0°C.
This operational amplifier has a JFET input type for high input impedance.
It uses a through-hole mounting type.
