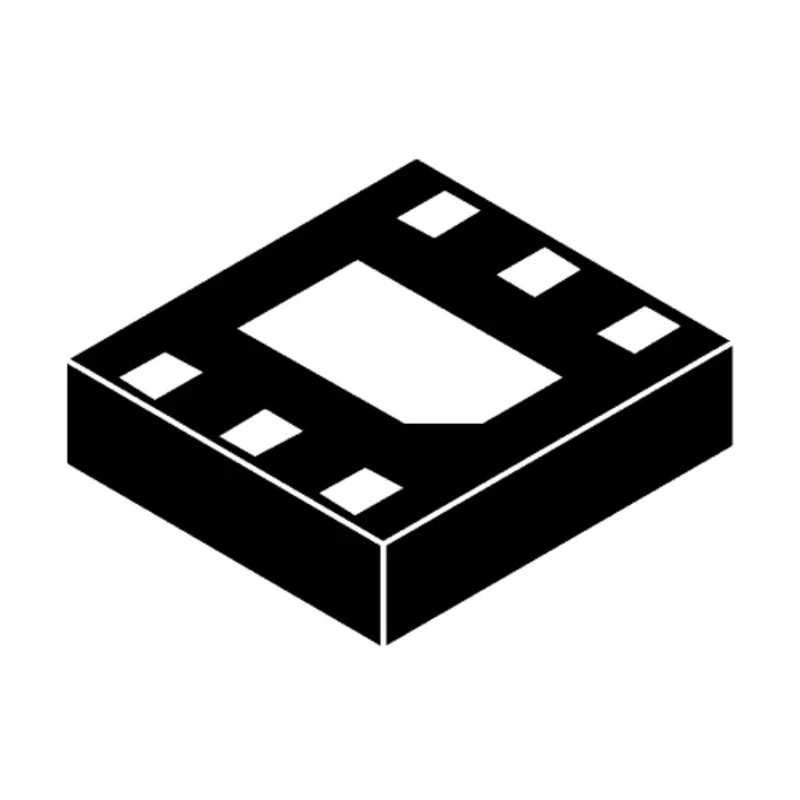

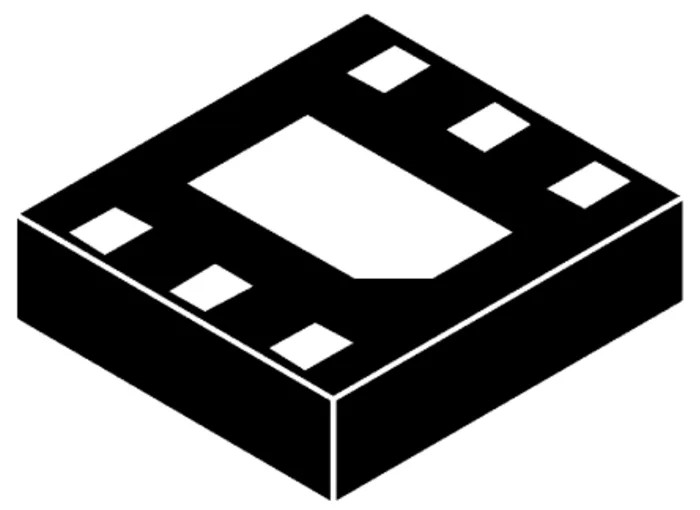

Semtech 9-Element Uni-Directional TVS Diode 150 W 6-Pin SLP1616P6 RCLAMP0504PATCT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Semtech |
| Height | 0.6mm |
| Length | 1.7mm |
| Model | RCLAMP0504PATCT |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | RCLAMP0504P |
| Maximum Operating Temperature | 125°C |
| Package Type | SLP1616P6 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Number of Elements per Chip | 9 |
| Clamping Voltage VC | 25V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 150W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6A |
| Maximum Reverse Leakage Current | 3μA |
Key Features
- This diode offers uni-directional transient voltage suppression for sensitive electronics.
- It features a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5 V.
- The device supports peak pulse current up to 6 A with a clamping voltage of 25 V.
- Constructed with 9 elements per chip, it ensures comprehensive ESD protection during operation.
- Designed for surface mounting with compact dimensions of 1.7 mm length, 1.7 mm width, and 0.6 mm height.
- Operates reliably within a temperature range of -55°C to 125°C, suitable for harsh environments.
- The diode has a maximum reverse leakage current of 3 μA and uses the RClamp series packaging for low capacitance.
- This component is ideal for protecting electronics in applications like mobile phones, USB interfaces, LCDs, and Gigabit Ethernet.
Product Description
Semtech RCLAMP0504PATCT is a 9-element uni-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic devices from damaging voltage spikes. With a peak pulse power dissipation rating of 150 W and a surface mount SLP1616P6 package, this diode is engineered for integration into compact electronic assemblies.
This device features a minimum breakdown voltage (Vbr) of 6 V and a maximum reverse stand-off voltage (Vwm) of 5 V, providing robust resistance against transient surges up to 6 A of peak pulse current. The clamping voltage is rated at 25 V, ensuring effective voltage limitation to safeguard components.
Designed with 9 elements per chip, the diode offers exceptional ESD protection, making it highly reliable in industrial and consumer electronics applications. Its compact size, with dimensions measuring 1.7 mm in length, 1.7 mm in width, and 0.6 mm in height, supports space-constrained PCB layouts and surface mount technology.
Operating temperature range from -55°C to 125°C allows the diode to function effectively in demanding environments, including industrial, automotive, and telecommunications sectors.
Uni-directional diode configuration for focused voltage suppression. Low capacitance RailClamp® series package for signal integrity in high-speed applications. Peak pulse power dissipation of 150 W ensures high energy absorption capability.
Compact 6-pin SLP1616P6 surface mount package suitable for automated PCB assembly. Exceptional ESD protection capacity, minimizing damage risks from electrostatic discharges. Reliable performance at extreme temperatures, extending component lifespan.
Typical applications include mobile phones, USB 2.0/OTG, MMC, and Gigabit Ethernet interfaces.
The Semtech RCLAMP0504PATCT TVS diode is manufactured in China and adheres to rigorous quality standards, making it a dependable choice for engineers designing circuits requiring transient voltage protection. Discover more products in the TVS Diode category at EnvMart for comprehensive solutions in semiconductor protection technology.
Explore more products in our TVS Diode Array category.
