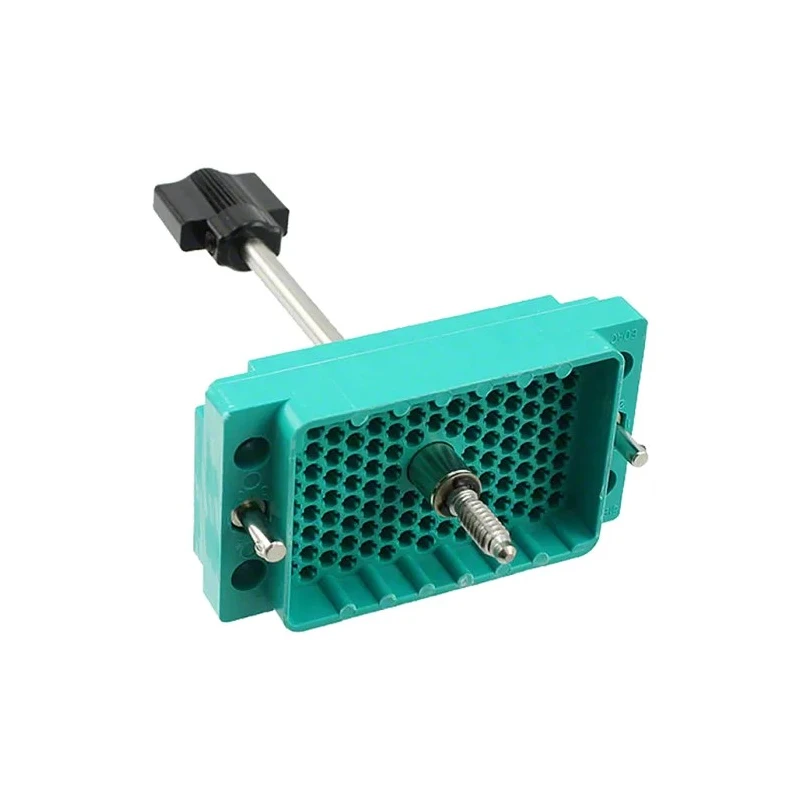

EDAC 3.81 mm Pitch Rectangular Connector Straight Male 120 Contacts 8.5A 2kV AC DAP Housing 516-120-000-101

The EDAC 516-120-000-101 is a 3.81 mm pitch rectangular connector featuring a straight male configuration with 120 contacts. This rack and panel plug connector housing incorporates an actuating screw mechanism to facilitate connection with matching receptacles for secure and reliable engagement.

The housing is made from durable DAP material, providing robust protection in harsh industrial conditions. Contacts are phosphor bronze plated with gold over nickel to guarantee low contact resistance and long service life.

Designed for high-reliability applications, this connector supports currents up to 8.5A and withstands voltages up to 2kV AC, with operational temperature ranging from -65°C to 125°C.

This product is panel mount type with crimp termination, allowing for flexible installation in rack or panel configurations commonly found in broadcast, rail signaling, oil and gas, and industrial control systems.

The 516 series employs hermaphroditic metal-to-metal contact design and polarized mouldings with metal locators to ensure secure connectivity and correct keying, minimizing connection errors.

Suitable for cable-to-panel or cable-to-cable high-density connections, it offers excellent choice for audio broadcast systems, railway signaling equipment, oil and gas industry control systems, and general industrial and automotive control and test applications.

This connector features a straight orientation male design with 120 contacts rated at 8.5A current. Housing material is durable DAP with gold over nickel plated phosphor bronze contacts to ensure excellent conductivity and corrosion resistance.

Rated for 2 kV AC voltage with a wide operating temperature range from -65°C to 125°C. Panel mount type with crimp termination allows secure and stable connection in industrial environments. Suitable for applications requiring safety and high reliability including audio broadcast, railway signaling, oil and gas control systems, and general industrial automation.

The 516 series ensures secure metal-to-metal contact with polarized mouldings and guide pin for correct mating.
