HARTING D-Sub 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Flange Female 09672094715

Free Delivery in India | Lowest Global Shipping Charges

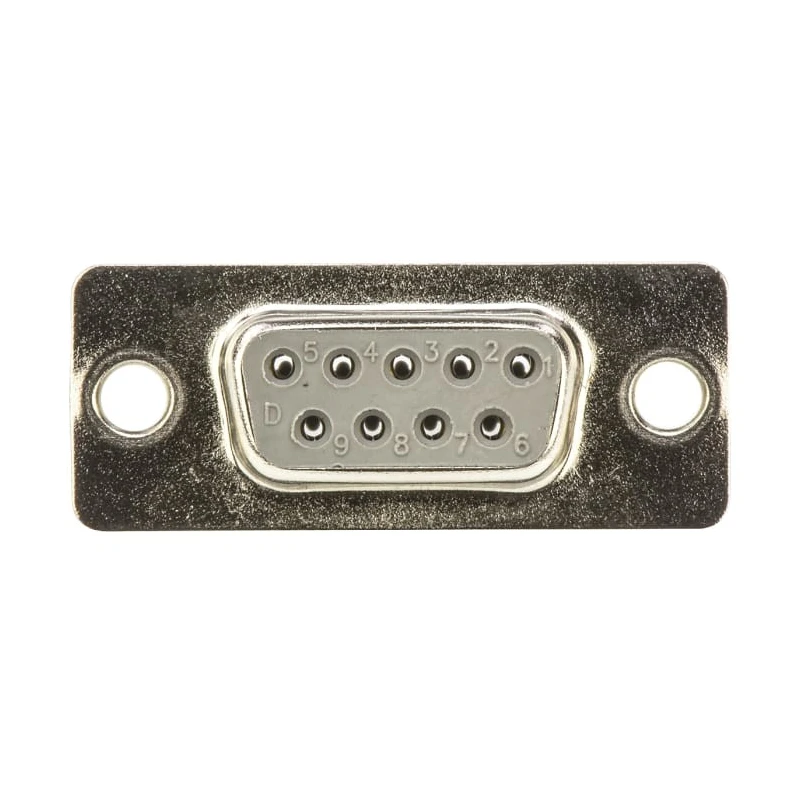

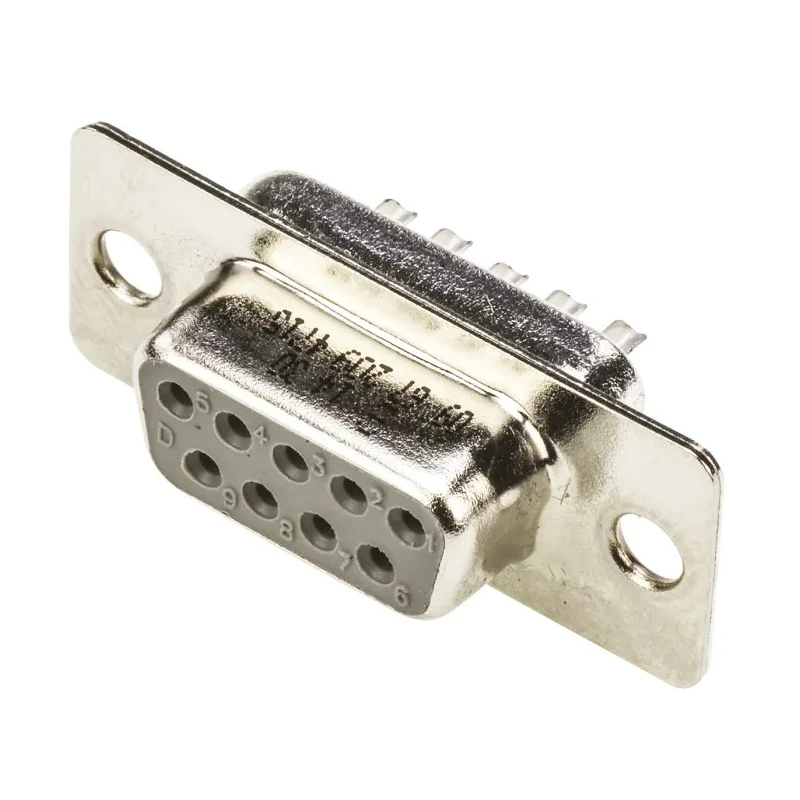

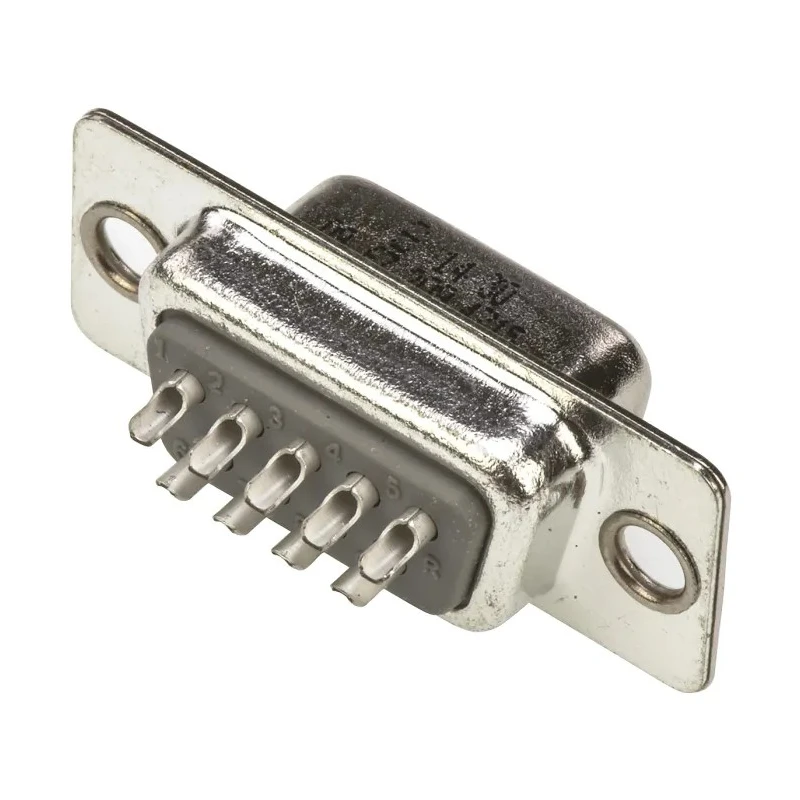

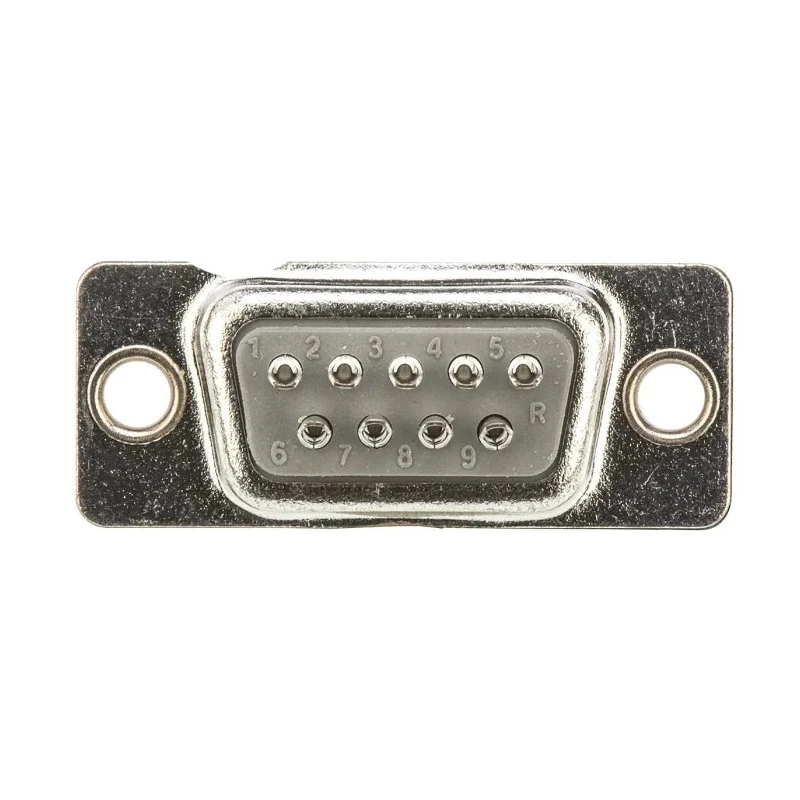

HARTING D-Sub 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Flange Female 09672094715

Name: HARTING D-Sub 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Flange Female 09672094715
Brand: HARTING
SKU: 212979
Price: 4.72 USD
Availability: InStock



Category Connectors Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	1000V
Brand	HARTING
Orientation	Straight
Current	6.5A
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Copper Alloy
Series	D-Sub
Mounting Hardware	Flange
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Standards/Approvals	UL Recognised, UL 94-V0, RoHS
Contact Plating	Steel
Number of Contacts	9
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	E

Key Features

The connector features 9 female contacts suitable for reliable soldering.
It has a 2.77 mm pitch and a robust steel housing for durability.
Designed for panel mount installation with flange mounting hardware.
Supports a maximum current of 6.5A and voltage rating of 1000V.
Operates reliably within a temperature range of -55°C to 125°C.
Contacts are made of copper alloy with steel plating for corrosion resistance.
Meets UL Recognised, UL 94-V0, and RoHS standards for safety and environmental compliance.
Ideal for industrial, electrical, and electronic applications requiring robust connector solutions.

Product Description

HARTING 09672094715 is a 9 way straight D-Sub connector designed for panel mount applications. Featuring a flange mount and female connector gender, this connector provides reliable electrical connections with solder bucket termination suitable for both stranded and single core wires.

The connector pitch measures 2.77 mm and the housing is constructed from sturdy steel to withstand demanding environments. Operating voltages can reach up to 1000V with a current capacity of 6.5A, making it suitable for a range of industrial and electronic uses.

Temperature tolerances range from -55°C to 125°C, ensuring stable operation under varying thermal conditions. Contacts are manufactured from copper alloy and plated with steel to resist corrosion and enhance longevity.

This product complies with UL recognised standards, UL 94-V0 flame rating, and RoHS environmental directives, ensuring safety and eco-friendly use.

Typically used in industrial electronics, power connectors, and automation equipment, it facilitates secure and precise panel mounting with flange hardware and 3.1 mm mounting holes. The female contact gender and solder termination make it effective for PCB and cable assembly.

The connector features 9 female solder bucket contacts. Mounting is via panel mount flange hardware for secure attachment. Constructed with high-quality steel housing for durability. Supports voltages up to 1000V and currents of 6.5A.

Operating temperature range from -55°C to 125°C. Meets UL Recognised, UL 94-V0, and RoHS standards. Contact plating and material provide corrosion resistance. Pitch is 2.77 mm for accurate connection alignment. Explore the Electronics & Electricals Connectors category for more reliable power connector solutions from HARTING and other leading brands.
