onsemi ECL Logic Family 2 D Flip-Flop IC, 20-Pin TSSOP Package MC10EP29DTG

Free Delivery in India | Lowest Global Shipping Charges

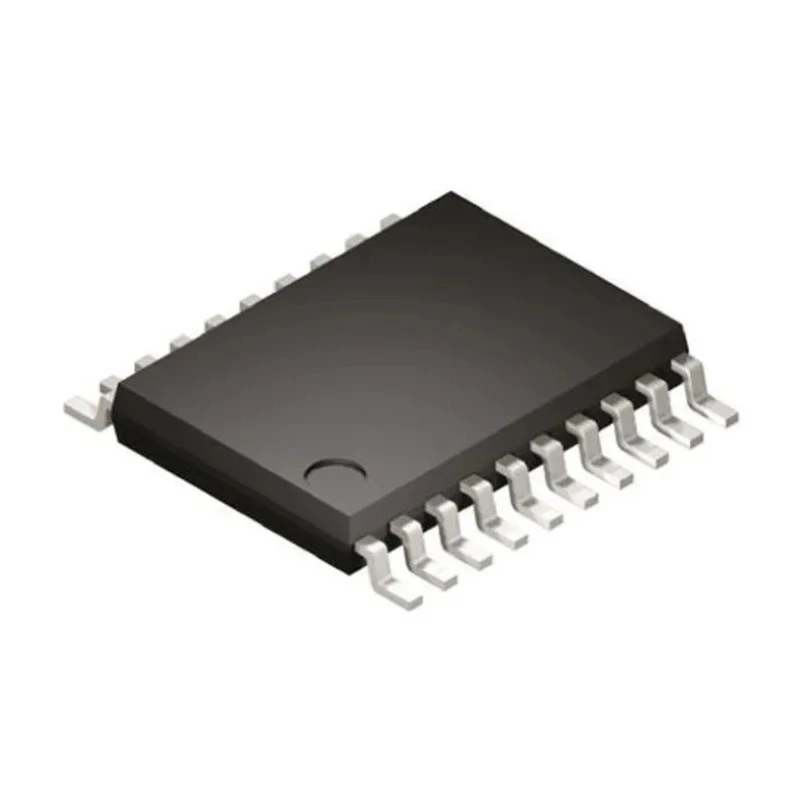

onsemi ECL Logic Family 2 D Flip-Flop IC, 20-Pin TSSOP Package MC10EP29DTG

Name: onsemi ECL Logic Family 2 D Flip-Flop IC, 20-Pin TSSOP Package MC10EP29DTG
Brand: onsemi
SKU: 136190
Price: 25.61 USD
Availability: InStock



Category Flip Flop ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.05mm
Length	6.6mm
Model	MC10EP29DTG
Mount Type	Surface
Output type	ECL
Series	MC10EP29DTG
Input Type	ECL
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Inverting, Non-Inverting
Pin Count	20
Number of Elements per Chip	2
Maximum Supply Voltage	5.5V
Logic Family	ECL
Minimum Supply Voltage	3V
Maximum Propagation Delay Time @ CL	575ps
Clock frequency	3GHz
Flip-Flop Type	D Flip-Flop

Key Features

Logic family is Emitter Coupled Logic (ECL) for fast switching.
Contains 2 D-type flip-flops per chip.
Inverting and non-inverting polarity supported.
Surface mount with 20-pin TSSOP package.
Operating voltage range from 3V minimum to 5.5V maximum.
Maximum propagation delay time of 575 picoseconds at specified load capacitance.
Wide operating temperature range from -40°C to 85°C.
Compact dimensions with height of 1.05 mm and length of 6.6 mm.

Product Description

onsemi MC10EP29DTG is a high-speed 2 D Flip-Flop Integrated Circuit in Emitter Coupled Logic (ECL) family, housed in a 20-pin Thin Shrink Small Outline Package (TSSOP). Operating at clock frequencies up to 3GHz, this IC is ideal for demanding electronic and semiconductor logic circuit applications requiring fast switching and reliable performance.

The device utilizes ECL input and output logic levels, providing inverting and non-inverting output polarity options. It supports surface mount assembly, making it suitable for automated PCB manufacturing processes.

Operating voltage ranges from 3V minimum to a maximum of 5.5V, ensuring compatibility with varying power supply designs. The maximum propagation delay time is 575 picoseconds at specified load capacitance, confirming rapid signal processing capability.

Designed to operate over a wide temperature range from -40°C to 85°C, this IC is robust for industrial and commercial electronics environments but does not conform to automotive standards.

Its compact physical dimensions, 1.05 mm height and 6.6 mm length, provide flexibility for space-constrained electronic assemblies. The MC10EP29DTG series offers two integrated flip-flop elements per chip, optimizing board real estate and simplifying design complexity.

Logic family is Emitter Coupled Logic (ECL) for fast switching. Contains 2 D-type flip-flops per chip. Inverting and non-inverting output polarity supported. Surface mount 20-pin TSSOP package for compact installation. Operating voltage range between 3V and 5.5V.

Maximum propagation delay time of 575 ps at rated load. Operating temperature from -40°C to 85°C suited for industrial use. Compact size: height 1.05 mm, length 6.6 mm.

This IC is widely used in industrial electronics, high-speed communication systems, digital logic design, and other semiconductor applications requiring precise and fast flip-flop logic functions. It is suitable for integration in laboratory test setups, manufacturing equipment, and electronic controls.
