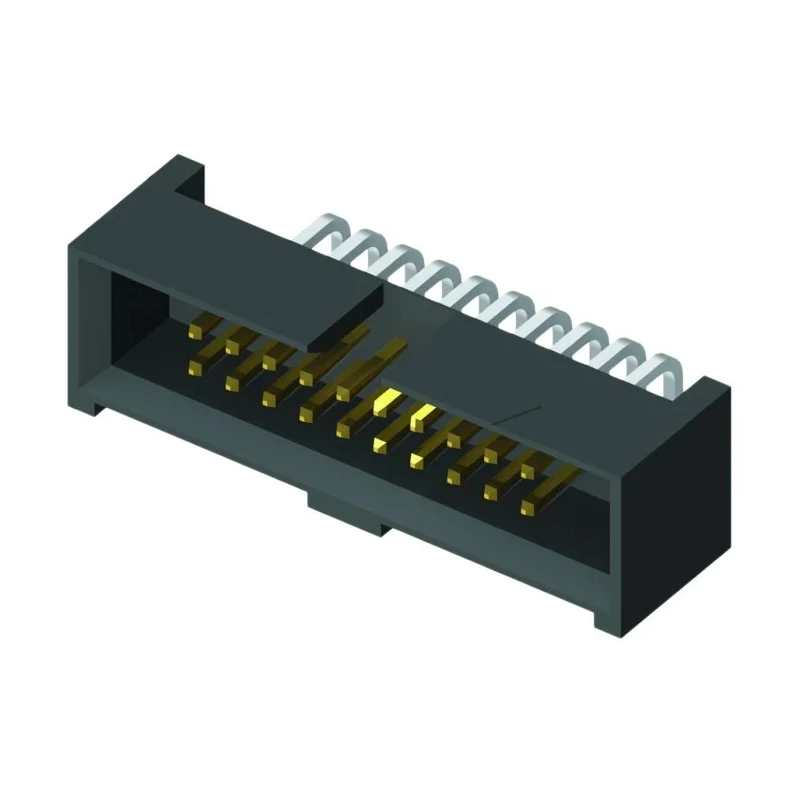

Samtec SHF Series Right Angle Through Hole PCB Header 34 Contacts 1.27 mm Pitch 2 Row Shrouded SHF-117-01-L-D-RA

Samtec SHF-117-01-L-D-RA is a right angle, shrouded through hole PCB header from the SHF series designed for high-density electronics applications. It features 34 gold-plated phosphor bronze contacts arranged over 2 rows with a precise 1.27 mm pitch, ensuring reliable electrical performance with a current carrying capacity of 3A.

This PCB header's housing is manufactured using liquid crystal polymer material, which offers excellent durability and thermal stability across a wide operating temperature range from -55°C to 125°C, making it suitable for diverse industrial, manufacturing, and electronic assembly environments.

The header includes a polarizing notch to guarantee accurate mating with corresponding connectors, preventing improper connections and enhancing overall system reliability. The solder termination type provides secure mechanical and electrical bonding to PCBs via through-hole mounting.

With a tail pin length of 2.16 mm and mating pin length of 3.05 mm, this header ensures solid engagement with mating components. Its male contact gender and wire-to-board connector system enable versatile integration in complex PCB assemblies.

Through hole mounting PCB header with right angle orientation for space-efficient board layout. Liquid crystal polymer housing ensures strong mechanical properties and heat resistance. Gold-plated phosphor bronze contacts provide superior conductivity and corrosion resistance.

Polarizing notch design enhances connector alignment and assembly accuracy. Operating temperature from -55°C to 125°C supports demanding electronic environments. Suitable for industrial, manufacturing, electronic assembly, and other technical applications.

Mount type and shrouded design improve durability and mating integrity. Designed for wire-to-board connections in high-density electronic systems.

The package contains this exact PCB header model SHF-117-01-L-D-RA by Samtec, providing reliable interconnection solutions for professional electronics developers. For related connectors, consider matching IDC socket cable assemblies in the FFSD and FFTP series.
