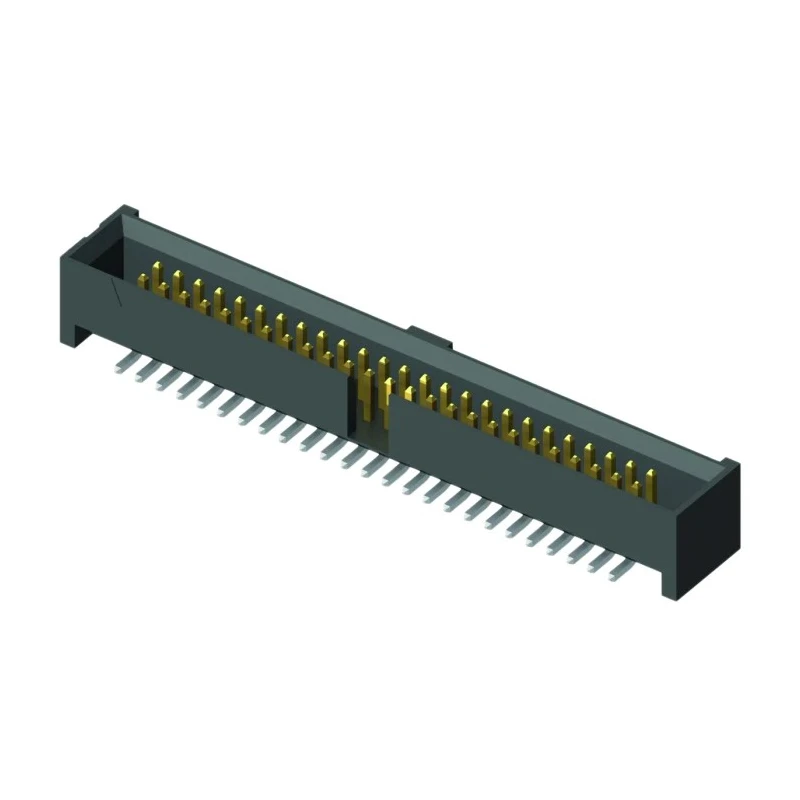

Samtec SHF Series Straight Surface PCB Header 26 Contacts, 1.27 mm Pitch, 2 Row, Shrouded SHF-113-01-L-D-SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3A |
| Model | SHF-113-01-L-D-SM |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SHF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.05mm |
Key Features
- Features gold-plated phosphor bronze contacts for optimal conductivity and corrosion resistance.
- Housing is made of durable Liquid Crystal Polymer ensuring high temperature resistance.
- Supports continuous current up to 3 Amperes for stable electrical performance.
- Operates reliably between -55°C and 125°C temperature range for diverse environmental applications.
- Surface mount type with solder termination facilitates easy PCB assembly.
- Shrouded design with polarizing notch ensures accurate mating and connection security.
- Mating pin length of 3.05 mm optimizes engagement with complementary connectors.
- Wide industrial usage including electronic assemblies, power and signal interfacing.
Product Description
Samtec SHF-113-01-L-D-SM is a high-quality shrouded straight surface PCB header designed with 26 gold-plated male contacts arranged in 2 rows on a precise 1.27 mm pitch. The housing utilizes Liquid Crystal Polymer material that offers excellent mechanical strength and thermal stability, supporting operating temperatures from -55°C to 125°C.
This PCB Header supports a maximum continuous current of 3 Amperes, facilitating reliable power and signal transmission in demanding electronic and industrial applications. The surface mount with solder termination type makes integration into printed circuit boards efficient and secure.
The shrouded design features a polarizing notch to ensure proper mating it prevents misalignment when connecting to compatible connectors. With a mating pin length of 3.05 mm, it achieves a secure engagement enhancing connection longevity and performance.
Samtec SHF series headers are widely used in electronics manufacturing, power distribution, communication equipment, industrial controls, and other industrial sectors requiring precise wire-to-board connectivity.
Gold-plated phosphor bronze contacts deliver excellent conductivity and durability. Robust Liquid Crystal Polymer housing withstands harsh operating conditions. Supports 3A current load ensuring stable electrical operation.
Temperature operation range from -55°C to 125°C suitable for varied environments. Surface mount solder termination for easy and reliable PCB installation. Polarizing notch for correct connector alignment and mating. Designed for industrial and electronic component applications.
This product comes with technical documents including RoHS Certificate of Compliance and Statement of Conformity, supporting quality assurance needs. Explore more connectors and PCB components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum continuous current of 3 Amperes, ensuring stable electrical performance.
It operates reliably within a temperature range of -55°C to 125°C, making it suitable for diverse environmental applications.
The housing is made of Liquid Crystal Polymer, while the contacts are constructed from gold-plated phosphor bronze for optimal conductivity and corrosion resistance.
This PCB header features 26 male contacts arranged in 2 rows on a 1.27 mm pitch.
It uses a solder termination type, facilitating easy integration into printed circuit boards.
The mating pin length is 3.05 mm, which optimizes engagement with complementary connectors.
This model is shrouded, which helps ensure accurate mating and connection security.
It is designed as a wire-to-board connector system, suitable for various electronic applications.
Key features include gold-plated contacts, a shrouded design with a polarizing notch, and high temperature resistance due to its Liquid Crystal Polymer housing.
The country of origin for this PCB header is India.
It is widely used in electronic assemblies, power distribution, communication equipment, and industrial controls.
Yes, it comes with technical documents including a RoHS Certificate of Compliance and Statement of Conformity, supporting quality assurance needs.
