TE Connectivity Corcom FCD Series Flange Power Line Filter 3 Phase 80A 480V AC 50Hz/60Hz 6609070-7

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Corcom FCD Series Flange Power Line Filter 3 Phase 80A 480V AC 50Hz/60Hz 6609070-7

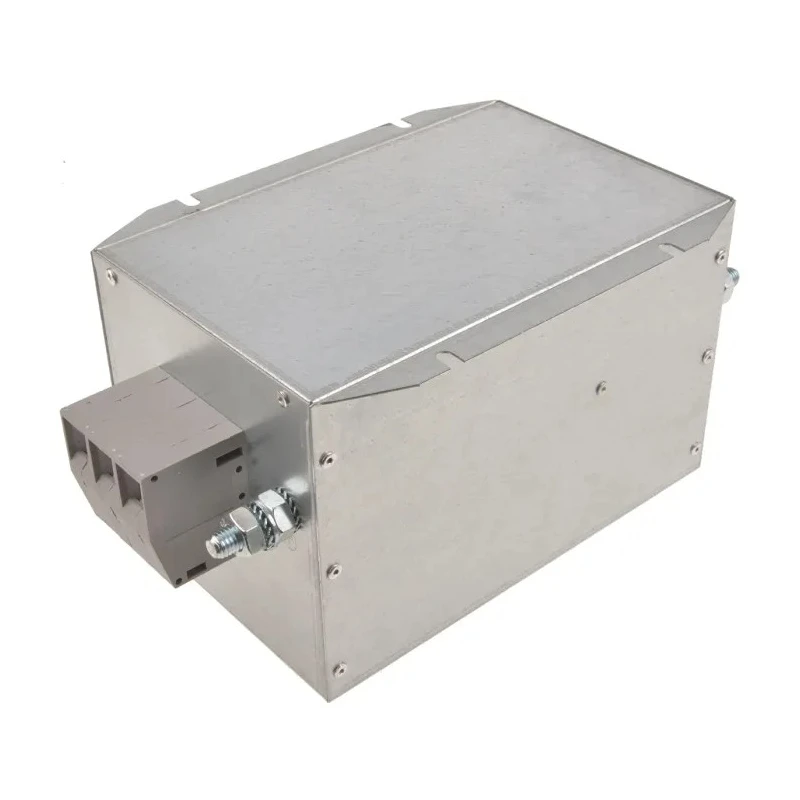

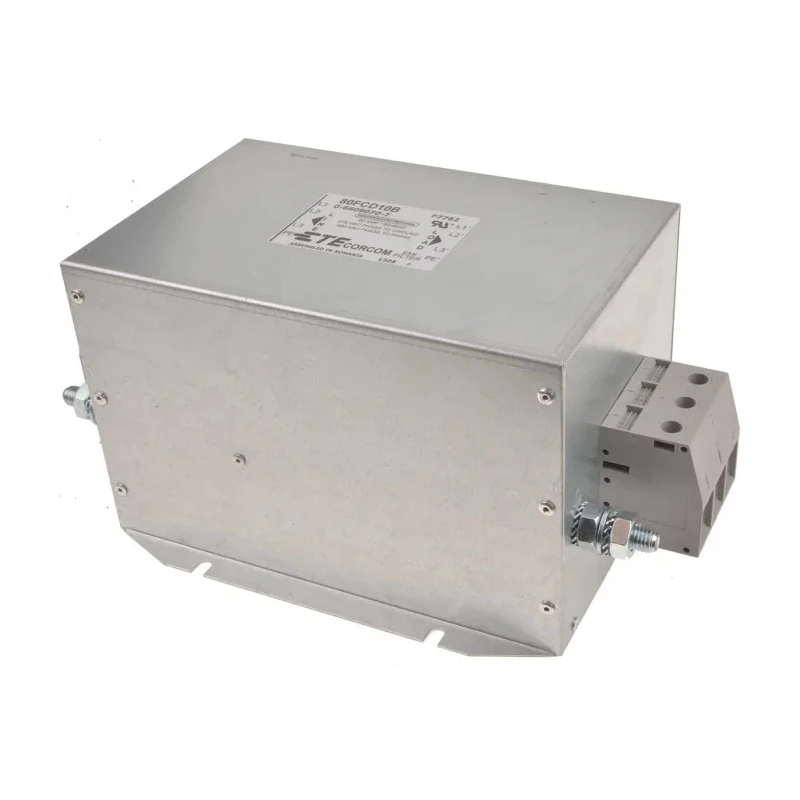

Name: TE Connectivity Corcom FCD Series Flange Power Line Filter 3 Phase 80A 480V AC 50Hz/60Hz 6609070-7
Brand: TE Connectivity
SKU: 135541



Category Power Line Filters Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	168mm
Length	307mm
Depth	141mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	Corcom FCD
Maximum Operating Temperature	40°C
Number Of Stages	1
Minimum Operating Temperature	-10°C
Maximum Current	80A
Number of Phases	3
Leakage Current	620μA
Maximum Voltage	480V ac
Standards/Approvals	UL, CSA
Termination Style	Screw

Key Features

This power line filter supports a maximum current of 80A and operates at 480V AC.
Designed for use on 3-phase electrical systems with an operating frequency of 50Hz to 60Hz.
Mounts via flange and features screw termination style for secure connections.
Operates within a temperature range of -10°C to 40°C.
Includes a leakage current specification of 620μA ensuring effective electrical safety.
UL and CSA approved, meeting important safety standards.
Ideal for frequency converters, elevators, escalators, machine tools, and industrial EMI filtering.

Product Description

TE Connectivity model 6609070-7 is a Corcom FCD series flange power line filter designed for three-phase industrial electrical systems. It provides high-performance EMI and RFI filtering to ensure stable and reliable operation of sensitive equipment by minimizing noise interference.

Rated for a maximum current of 80A and a maximum voltage of 480V AC, this filter supports frequencies of 50Hz and 60Hz. It is engineered to operate within environmental conditions ranging from -10°C to 40°C, making it suitable for various industrial settings.

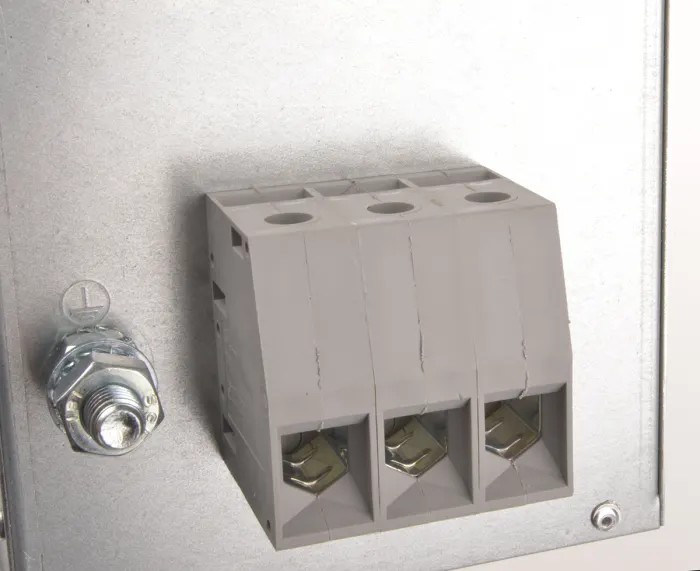

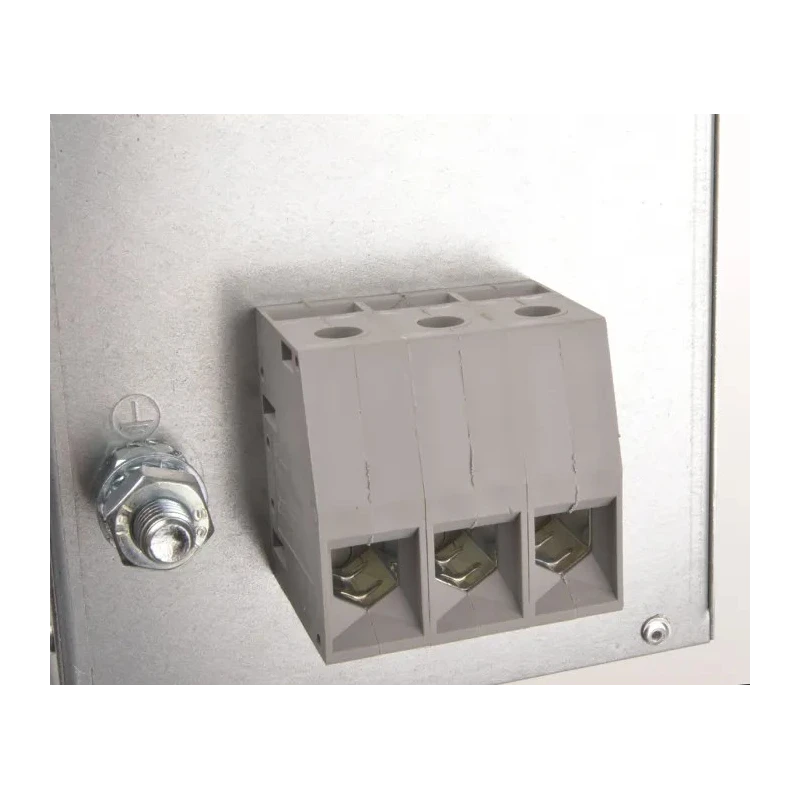

The flange mounting and screw termination style offer a secure and simple method of installation and maintenance. The filter includes touch-safe insulated terminals to prevent inadvertent contact, enhancing user safety during operation.

Dimensions of the filter are 307mm in length, 168mm in height, and 141mm in depth, allowing it to be integrated into industrial cabinets and machinery enclosures effectively.

Corcom FCD filters have worldwide recognition and approvals from major safety agencies including UL and CSA, confirming their quality and suitability for demanding EMI suppression tasks.

This device is particularly suited for applications such as frequency converters, elevators, escalators, machine tools, and industrial cabinets where wide band RFI suppression is critical to maintain equipment performance and compliance with EMC standards.

This product meets the latest EMC regulatory requirements ensuring reliable EMI filtering performance. Includes insulated safety terminals for enhanced user protection. Suitable for field EMC troubleshooting and installation in new or existing machinery.

Corcom FCD series is optimized for industrial 3-phase power line filtering applications. Backed by TE Connectivity's extensive expertise in EMI/RFI solutions across multiple industries. For further product selections, explore the Power Line Filters category at EnvMart for high-quality EMI suppression components tailored for industrial and commercial applications.
