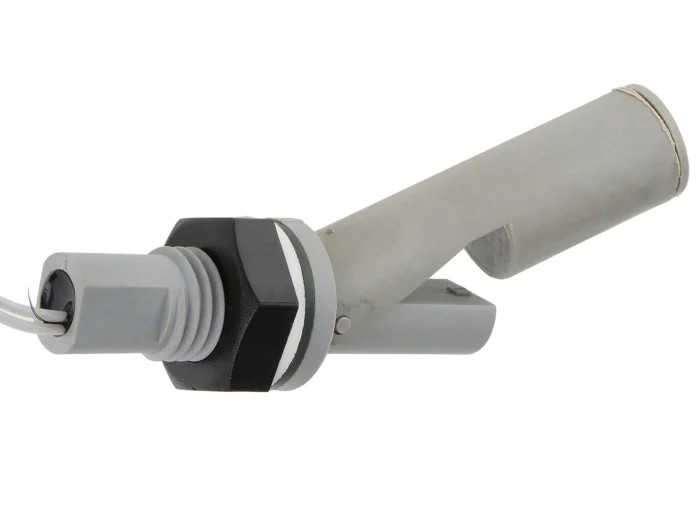

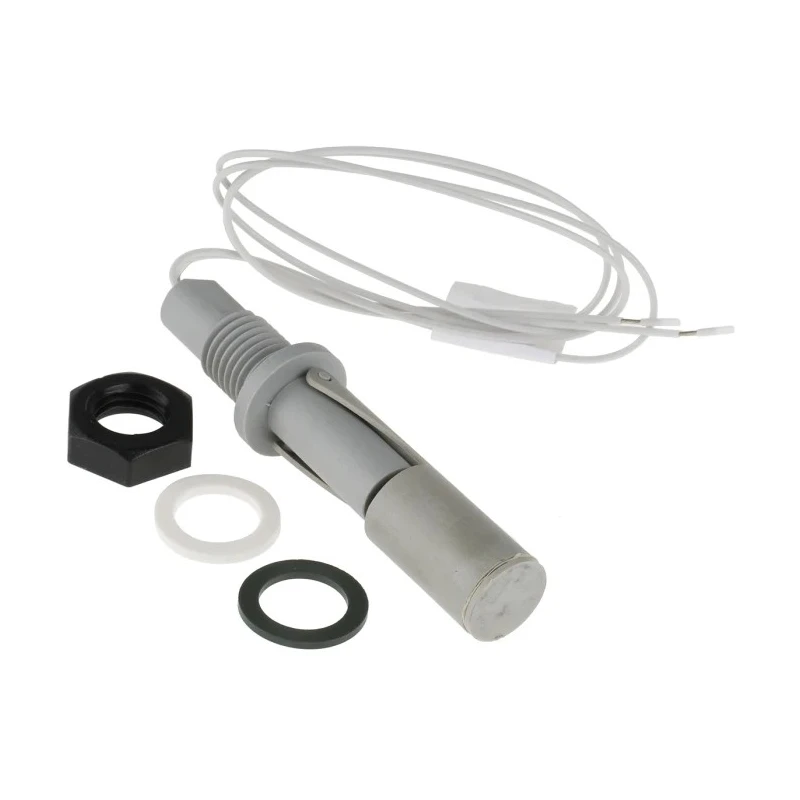

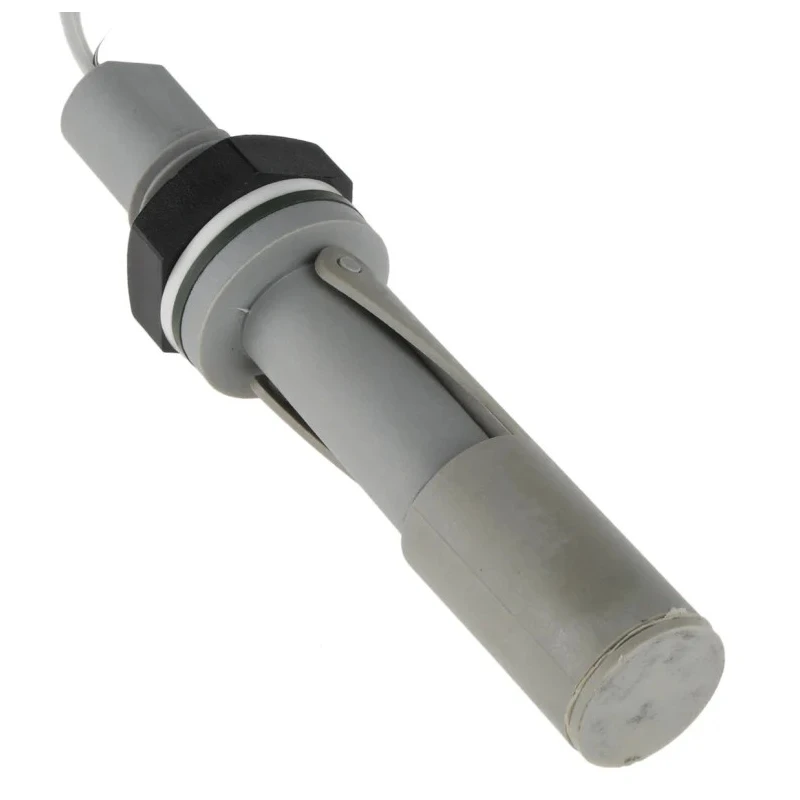

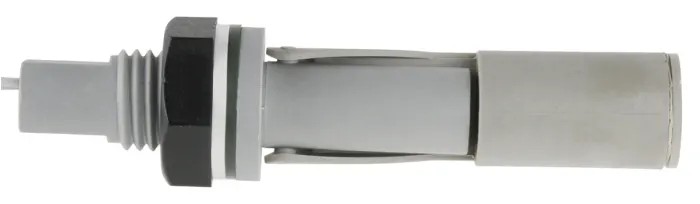

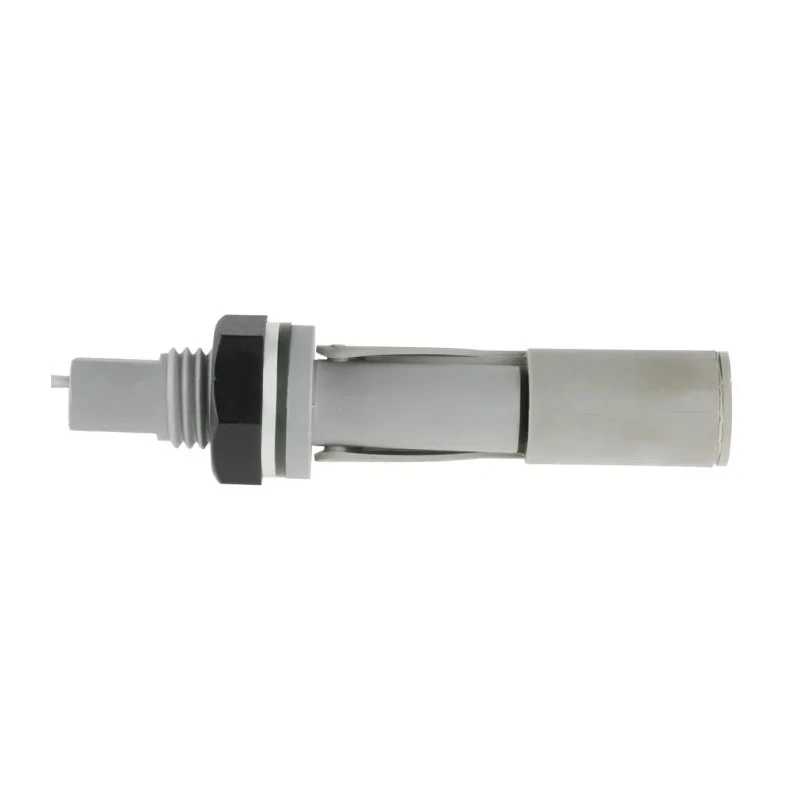

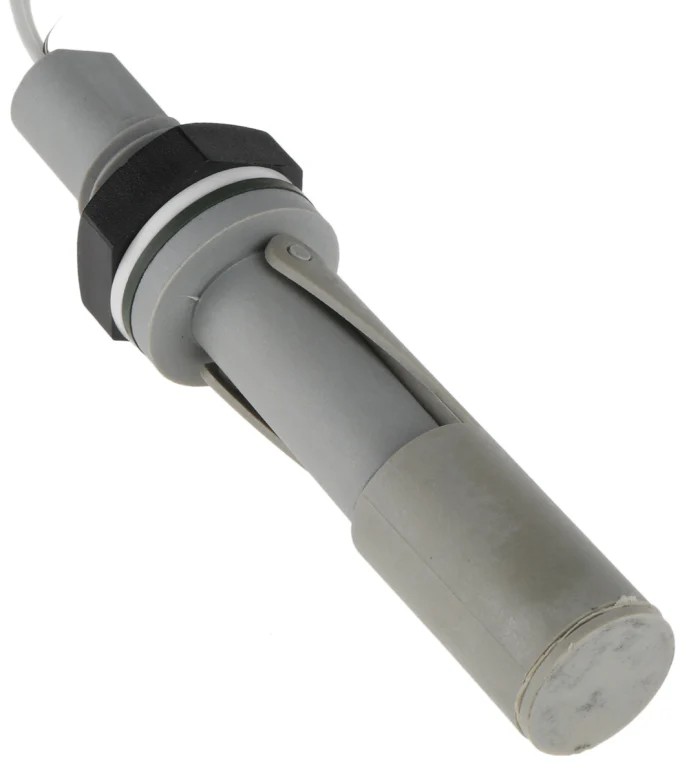

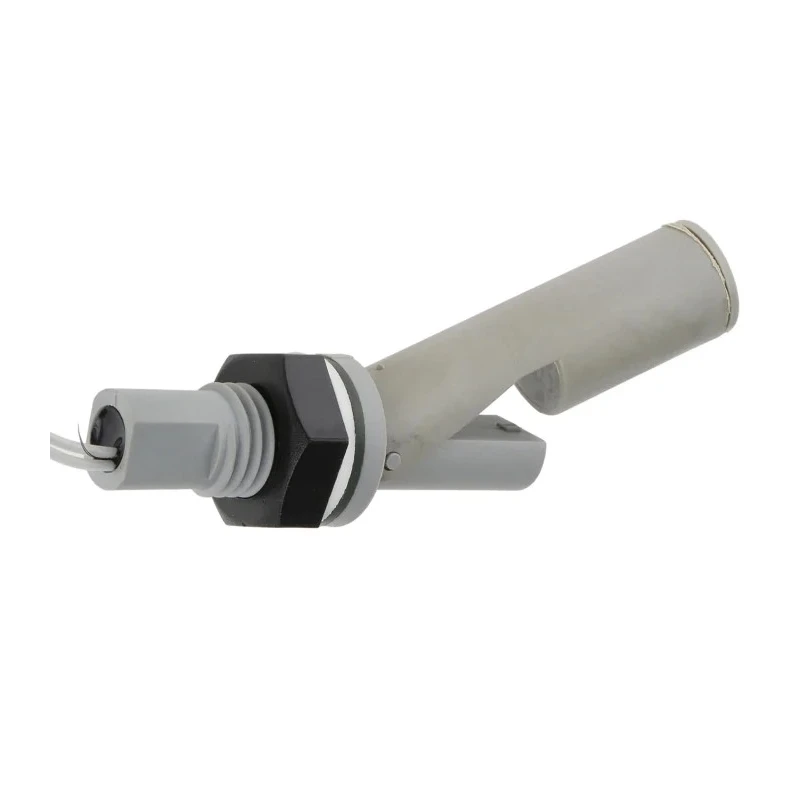

Cynergy3 RSF40 Series Horizontal Viton Float Switch 500 mm Cable NO/NC 300 V AC Max 300 V DC Max RSF46H050TG

Cynergy3 RSF46H050TG is a highly reliable horizontal float switch designed for internal liquid level detection in various industrial and commercial applications. It features a robust polyphenylene sulfide (PPS) housing that provides excellent resistance to abrasion and chemicals, ensuring long-lasting durability in harsh environments. The float switch includes a Viton gasket material known for its resistance to oils, solvents, and high temperatures, contributing to a leak-proof and durable seal.

Operating temperature ranges from -10°C to 120°C, making it suitable for diverse conditions. The switch can handle a maximum alternating current switching current of 1 ampere, which supports efficient and energy-saving operation. It is equipped with a 500 mm cable, providing sufficient length for secure connection to control circuits and power sources. The float triggers a reed switch via a pivoted magnet to operate in normally open (NO) or normally closed (NC) modes, offering versatility in monitoring fluid levels.

This internal horizontal float switch is commonly deployed in vending machines, commercial washing machines, and other fluid handling equipment where internal tank installation is preferable. It prevents overflow and dry running by accurately sensing liquid levels.

Durable polyphenylene sulfide housing for chemical and abrasion resistance. Viton gasket ensures excellent resistance to oils, solvents, and heat. Max switching current 1A supports energy-efficient operation. 500 mm cable length provides adequate connection reach.

Switch action reversible by rotating through 180°. Operating temperature from -10°C to 120°C. Compatible with NO/NC switching via reed switch and magnet mechanism. Ideal for industrial, commercial, and vending machine applications.
