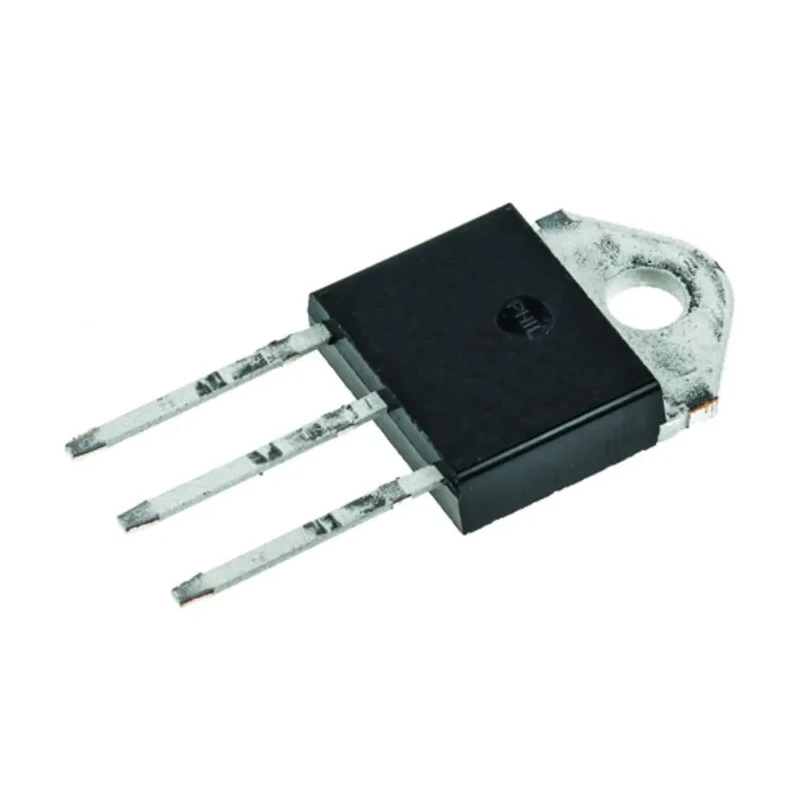

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA26-800BWRG

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA26-800BWRG

Name: STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA26-800BWRG
Brand: STMicroelectronics
SKU: 135456
Price: 7.59 USD
Availability: InStock



Category TRIAC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	21.1mm
Length	15.5mm
Model	BTA26-800BWRG
Mount Type	Through Hole
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	TOP
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Rated Average On-State Current Irms	25A
Repetitive Peak Reverse Voltage VDRM	800V
Surge Current Rating	250A
Maximum Gate Trigger Current Igt	50mA
Maximum Holding Current Ih	75mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak Gate Power Dissipation	1W

Key Features

This TRIAC includes a single configuration with a 3-pin through-hole package.
It features a maximum gate trigger current of 50 mA and a gate trigger voltage of 1.3 V.
Designed to handle a surge current rating of 250 A for robust operation.
The component operates reliably within a temperature range of -40°C to 125°C.
Measuring 15.5 mm in length and 21.1 mm in height, making it suitable for PCB mounting.
Supports peak gate power dissipation of 1 W and a maximum holding current of 75 mA.
Complies with RoHS standards ensuring environmental compliance.
Ideal for applications in power control and switching in industrial and electronic devices.

Product Description

STMicroelectronics BTA26-800BWRG is a high-performance 3-pin TRIAC designed with a through-hole mount and a TOP package type. It is rated for a repetitive peak reverse voltage of 800 V and an average on-state current of 25 A, ensuring reliable power switching in demanding electronic environments.

This TRIAC features a maximum gate trigger current of 50 mA and a gate trigger voltage of 1.3 V, facilitating precise triggering control. The device supports a surge current rating of 250 A and a maximum holding current of 75 mA, enabling it to withstand transient electrical conditions.

Designed to operate efficiently from -40°C to 125°C, it suits various industrial, HVAC, manufacturing, and power control applications. Its compact size with length 15.5 mm and height 21.1 mm allows easy integration onto printed circuit boards with through-hole mounting.

STMicroelectronics TRIACs comply with RoHS standards, confirming their safety and environmental compliance for industrial and commercial use. The BTA26-800BWRG is ideal for controlling AC power in motor controls, lighting systems, and home appliance circuits.

This TRIAC includes a single configuration with a 3-pin through-hole package. Maximum gate trigger current of 50 mA and gate trigger voltage of 1.3 V. Rated repetitive peak reverse voltage is 800 V with surge current rating of 250 A.

Operational temperature range from -40°C to 125°C for diverse environments. Compact dimensions: Length 15.5 mm, Height 21.1 mm, Mount type through-hole, Package TOP. Peak gate power dissipation of 1 W and maximum holding current of 75 mA.

Compliant with RoHS directives for environmental safety.

Industries such as industrial automation, power electronics, and HVAC rely on TRIACs like BTA26-800BWRG for efficient, reliable AC load switching. Its robust specifications make it suitable for electronics repair, manufacturing, and design projects.
