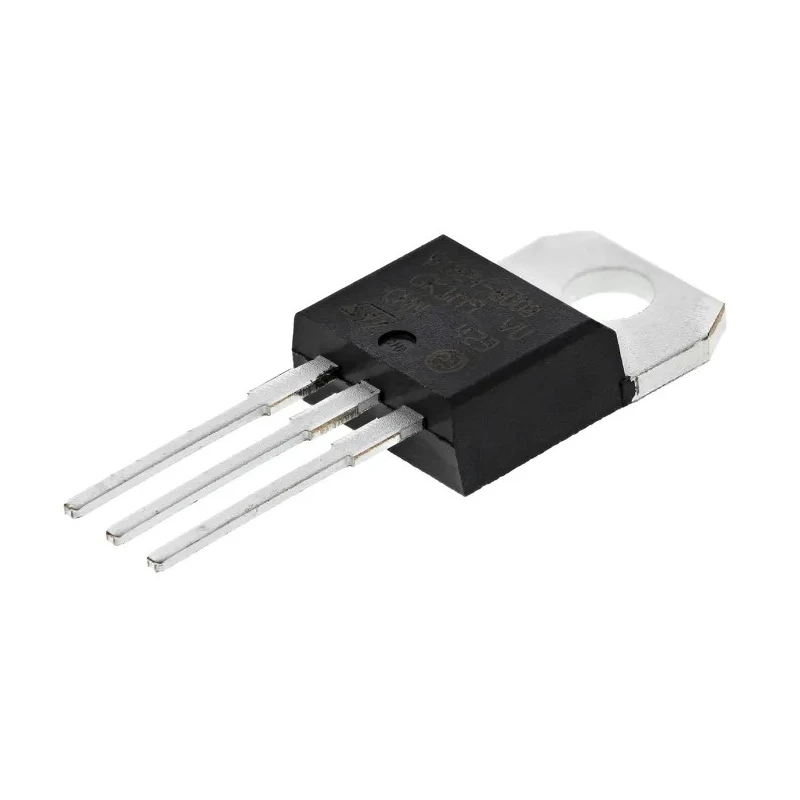

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTB24-800BRG

STMicroelectronics BTB24-800BRG is a high-performance through hole 3-pin TRIAC tailored for industrial and commercial electronic applications. This TRIAC supports a rated average on-state current of 25 A and features robust surge current rating of 260 A, making it suitable for controlling AC loads in power switching and phase control circuits.

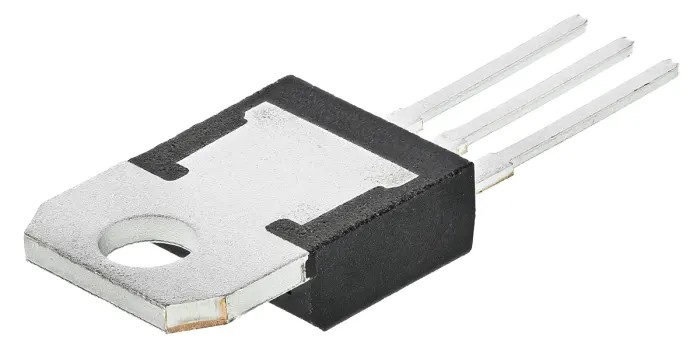

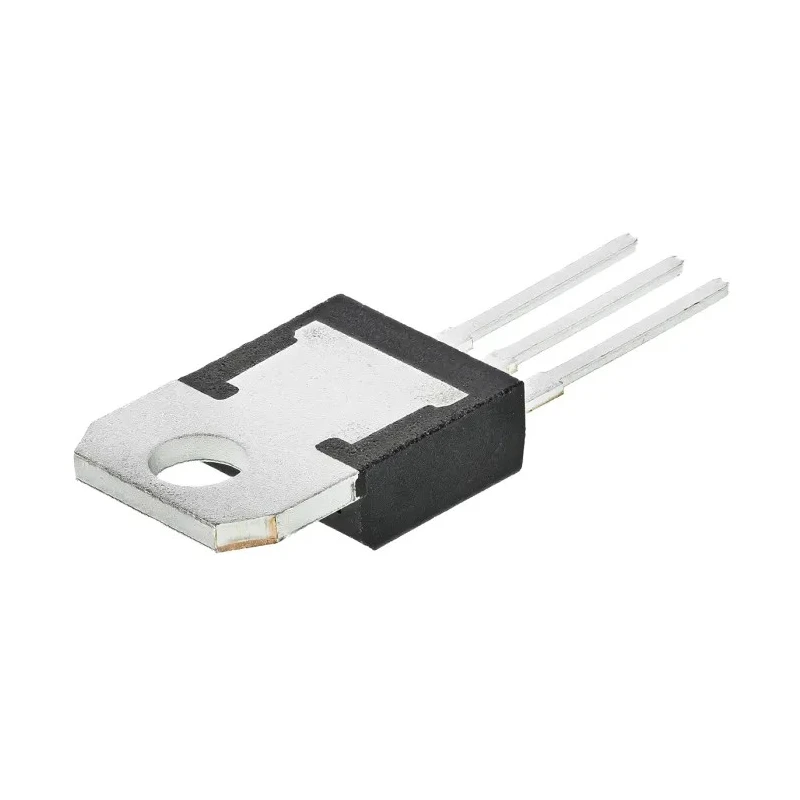

Encased in a TO-220AB package, the device facilitates efficient heat dissipation and secure mounting on PCBs. It operates reliably across a wide temperature range from -40°C to 125°C, ensuring consistent performance in harsh environments common to industrial, manufacturing, and HVAC systems.

The BTB24-800BRG TRIAC offers a maximum gate trigger voltage of 1.3 V and gate trigger current of 100 mA, optimizing sensitivity and control precision. Its repetitive peak reverse voltage rating of 800 V and low peak on-state voltage of 1.55 V translate into effective energy management and durability under high-voltage conditions.

This model's compact footprint with 15.9 mm height and 10.4 mm length enables integration even where space is constrained. It is designed for single configuration applications requiring a 3-pin device for AC power control.

Common use cases include industrial electronic control systems, power supply regulation, lighting control circuits, and consumer electronics requiring reliable AC switching components.

Supports a rated average on-state current of 25 amps for stable load control. Mounted in a TO-220AB package suitable for easy through-hole installation. Maximum gate trigger current is 100 mA for reliable triggering performance.

Operates within a temperature range from -40°C to 125°C for versatile industrial applications. Built with a repetitive peak reverse voltage rating of 800 V for high voltage endurance. Surge current rating of 260 amps enabling handling of transient overloads.

Low peak on-state voltage of 1.55 V reduces power loss during conduction. Single configuration pin count of 3 allows straightforward integration on circuit boards. Compact dimensions with a height of 15.9 mm and length of 10.4 mm for optimized space usage.

Manufactured in China with a new product condition ensuring quality standards. Explore more high-quality TRIACs and semiconductor components like STMicroelectronics BTB24-800BRG in the Electronics & Electricals category on EnvMart.
