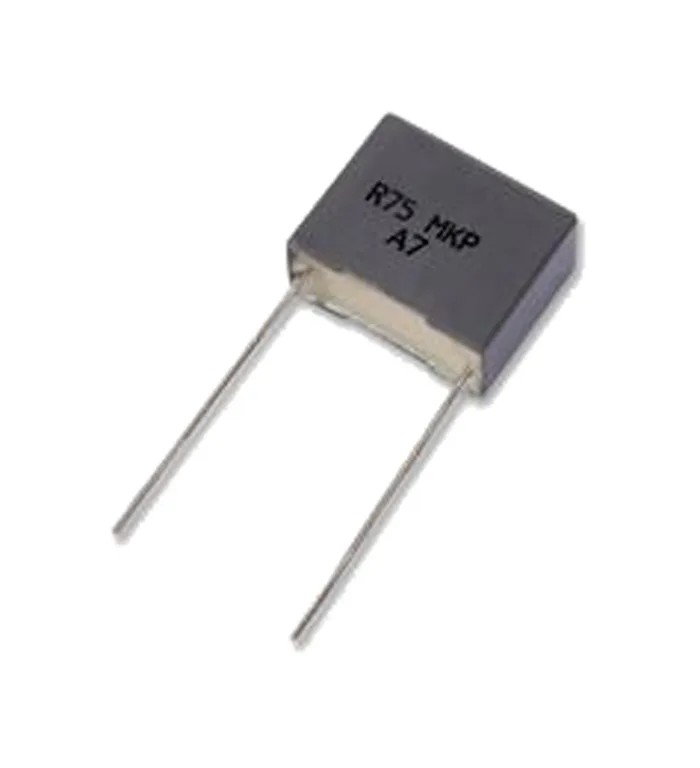

KEMET R75 Film Capacitor ±5 % 10 nF 1.6 kV DC 650 V AC Through Hole R75TI21004030J

KEMET R75TI21004030J is a high-performance Film Capacitor with 10 nF capacitance and ±5 % tolerance. It is rated for 1.6 kV DC and 650 V AC operation, featuring Through Hole mounting suitable for various electronic circuits.

This capacitor is part of the R75 Series, constructed from metallized polypropylene film, providing excellent high frequency characteristics and self-healing properties. The radial leads are made of tinned wire, designed with a 15 mm pitch for easy PCB mounting and connectivity.

Operating within a temperature range of -55°C to 105°C, it offers robust performance in demanding environments. Its encapsulation in a self-extinguishing material rated UL94V-0 enhances safety by reducing fire risk.

This device finds common usage in deflection circuits for televisions, resonant capacitors in electronic ballasts and compact lamps, power factor correction, and coupling capacitors in switched mode power supplies (SMPS). It is not suitable for across-the-line applications.

Standards compliance includes IEC 60286-2, RoHS directives for hazardous substances, and automotive grade quality under AEC-Q100, ensuring reliability and environmental safety. Metallized polypropylene film for high frequency use.

Radial design with 15 mm lead pitch and 30 mm lead length. Wide temperature range from -55°C to 105°C. Self-extinguishing encapsulation per UL94V-0 standard. Applications include TV circuits, electronic ballasts, and power supplies.

Compliance with international and automotive standards. Compact dimensions: 18 mm length, 6 mm width, 12 mm height.

This KEMET capacitor is ideal for industrial, electronics manufacturing, telecommunications, and consumer electronics applications, ensuring stable and reliable circuit performance.
