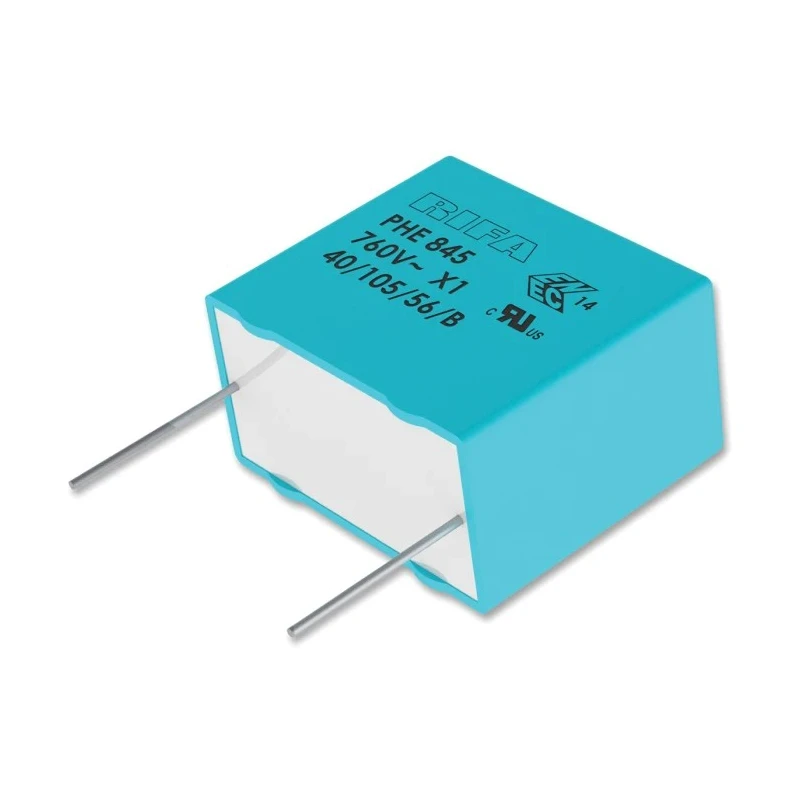

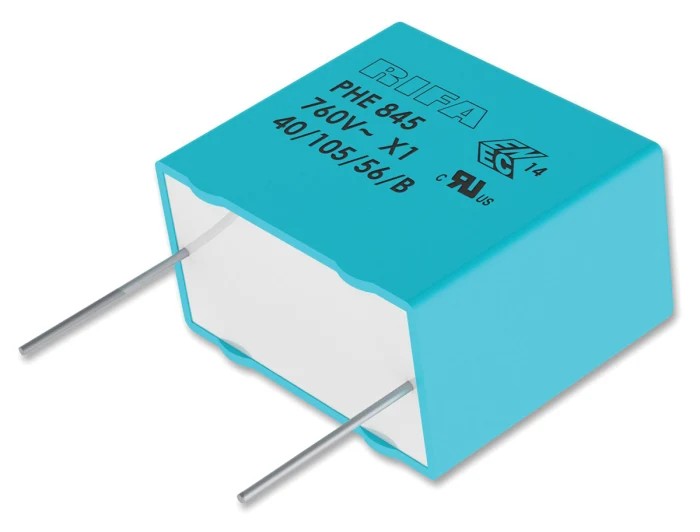

KEMET Film Capacitor X1, ±20 %, 220 nF, 1.5 kV dc 760V ac, Through Hole Mount, Radial Terminal, PHE845

KEMET PHE845 Film Capacitor X1, model PHE845, is a metallised polypropylene film capacitor designed for EMI suppression and across-the-line interference reduction in electrical and electronic applications. It features a capacitance of 220 nF with a tolerance of ±20 % and is rated for continuous operation at 1.5 kV DC and 760V AC, making it suitable for high voltage circuits that require stability under demanding conditions.

This capacitor is constructed with a triple winding of metallized polypropylene film, encapsulated in a self-extinguishing material that complies with UL 94 V - 0 standards, ensuring safety and reliability in industrial and commercial electronics. Its through-hole mount with radial terminals facilitates straightforward PCB assembly, and the lead pitch of 22.5 mm along with the lead length of 30 mm allows for compatibility with industry standard layouts.

The operating temperature range of -40°C to 105°C supports usage in various thermal environments, including industrial and commercial HVAC systems, manufacturing equipment, and consumer electronics. Physical dimensions are compact, with a length of 26 mm, width of 15.5 mm, and height of 24.5 mm.

Additional technical parameters include a pin count of 2, lead diameter of 0.8 mm, and a dissipation factor of 0.6%, indicating efficient electrical performance with minimal energy loss. It is not compliant with automotive standards but is approved under ENEC, UL, and cUL certifications, although specific approvals are noted as 'No' in this listing.

Capacitance: 220 nF with ±20 % tolerance ensures accurate filtering. Rated voltages support operation at high DC and AC voltages. Self-extinguishing encapsulation adds safety in electrical applications. Through-hole radial terminal design suits diverse PCB implementations.

Wide temperature range fits industrial, laboratory, and manufacturing uses. Low dissipation factor for efficient energy use. Compact dimensions allow integration into constrained spaces.

This film capacitor is well-suited for industrial power supply circuits, EMI/RFI noise suppression in commercial electronic devices, and other applications requiring stable capacitance under high voltages and variable environmental conditions. It is a reliable choice for electronics designers and engineers working in fields including power electronics, industrial automation, and commercial HVAC systems.
