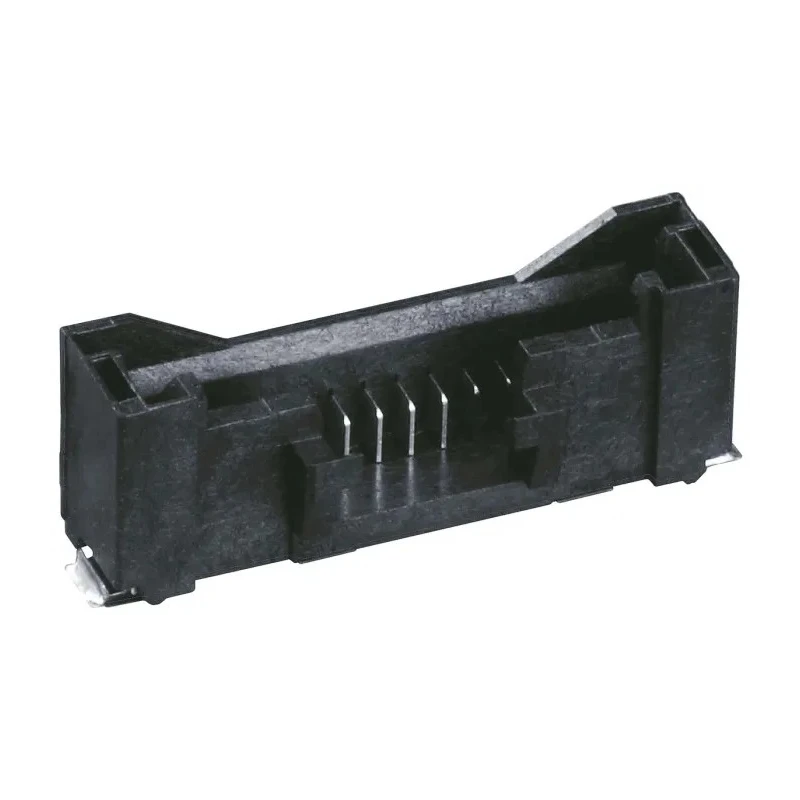

Hirose DF50 Series Straight Surface PCB Header, 10 Contacts, 1 mm Pitch, 1 Row, Shrouded DF50
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 1A |
| Model | DF50 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | DF50 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a compact 1.0 mm pitch for space-saving PCB layout.
- Constructed with black liquid crystal polymer housing for durability.
- Brass contacts plated with gold ensure excellent conductivity and corrosion resistance.
- Operates reliably in temperatures from -35°C to 85°C.
- Includes a positive locking latch mechanism for secure mating and vibration resistance.
- Designed for surface mounting on PCBs with solder termination.
- Suitable for LCD, digital TVs, notebook PCs, wireless LAN, and automotive applications.
- Provides a tactile and audible click on mating to confirm secure connection.
Product Description
Hirose DF50 Series Straight Surface PCB Header DF50 is a 1.0 mm pitch, single-row, 10-contact wire-to-board connector designed for high-density PCB applications with a shrouded male contact system.
This PCB header features a high-quality black liquid crystal polymer housing that complies with UL94V-0 standard, ensuring excellent flame retardance and mechanical strength. The brass contacts are gold plated to provide superior conductivity and corrosion resistance in various operating environments.
Its compact 1 mm pitch and single-row configuration optimize space utilization on printed circuit boards, ideal for electronic components in LCD TVs, digital TVs, notebook computers, wireless LAN devices, industrial controllers, automotive navigation, and audio systems.
The connector incorporates a positive locking latch mechanism, delivering tactile and audible feedback upon mating. This design ensures a secure and vibration-resistant connection in demanding industrial and commercial applications.
Rated for operation between -35°C and 85°C, it supports up to 1A current at 100V voltage, making it suitable for moderate power signal applications. The surface mount technology (SMT) with solder termination enables easy PCB assembly with consistent quality.
Compact 1.0 mm pitch supports space-efficient PCB design. Liquid crystal polymer housing offers durability and flame resistance. Gold-plated brass contacts ensure reliable electrical performance. Positive locking latch mechanism provides secure connection in high vibration environments.
Wide operating temperature range of -35°C to 85°C for versatile usage. Surface mount type with solder termination for assembly efficiency. Compatible with a variety of industrial and consumer electronic applications.
This Hirose DF50 PCB Header is manufactured in Malaysia to strict quality standards, ensuring consistent performance and reliability. EnvMart customers can trust this product for demanding electronics manufacturing and repair needs.
Explore more PCB Headers and connectors in the Electronics & Electricals category at EnvMart for comprehensive component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF50 Series PCB header features a compact 1.0 mm pitch, which optimizes space utilization on printed circuit boards.
This model can operate at a maximum temperature of 85°C, making it suitable for various electronic applications.
The DF50 PCB header has 10 contacts, designed for wire-to-board connections in high-density applications.
It is constructed with a black liquid crystal polymer housing and features brass contacts that are gold plated for enhanced conductivity and corrosion resistance.
This model is rated for a current of up to 1A, suitable for moderate power signal applications.
The DF50 PCB header utilizes solder termination, which enables efficient assembly on printed circuit boards.
This model has a straight orientation, making it suitable for various PCB layouts.
The DF50 PCB header is manufactured in Malaysia, adhering to strict quality standards.
It is suitable for applications in LCD TVs, digital TVs, notebook computers, wireless LAN devices, and automotive navigation systems.
Yes, it includes a positive locking latch mechanism that provides secure mating and vibration resistance.
The minimum operating temperature for the Hirose DF50 Series header is -35°C, allowing for versatile usage in various environments.
This model features a wire-to-board connector system, designed for high-density PCB applications.
