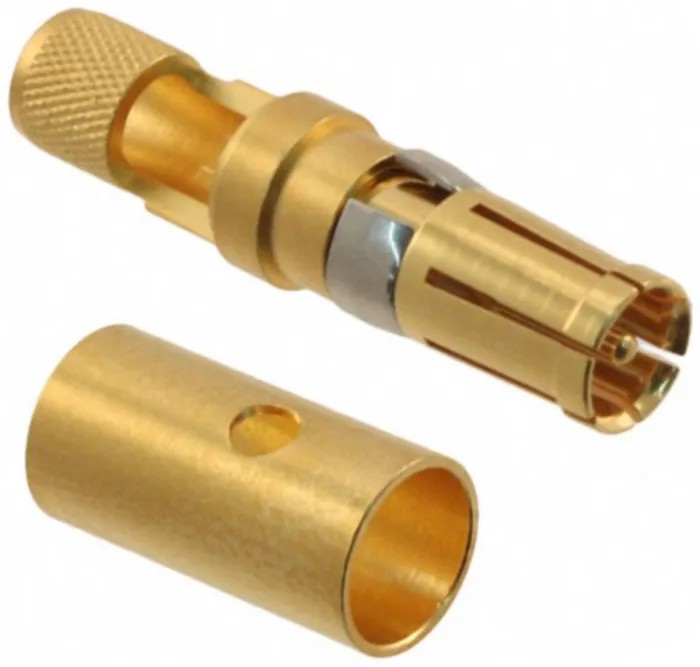

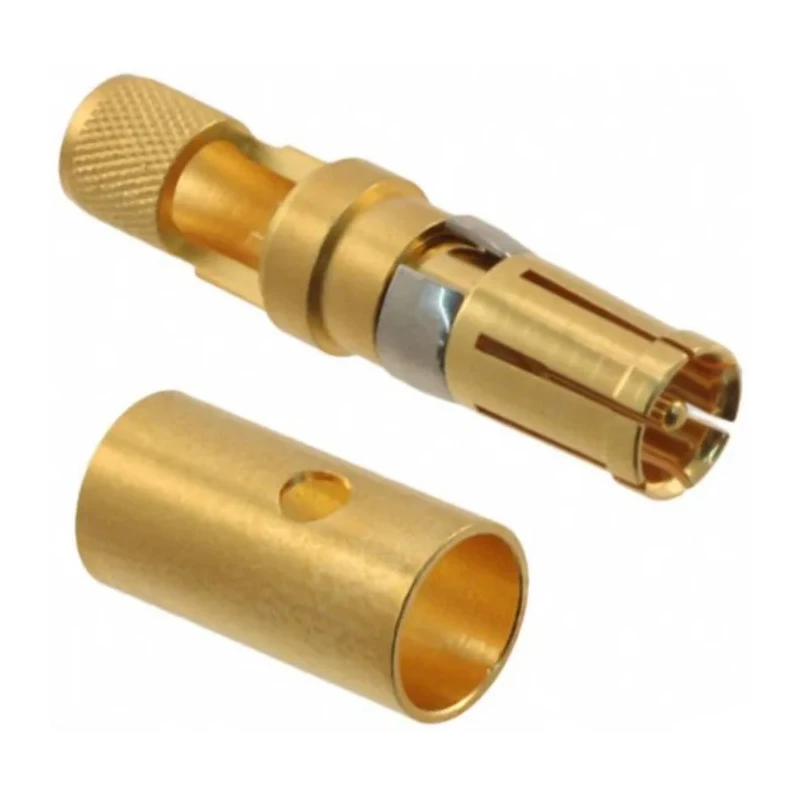

Harting D-Sub Mixed Series Female Crimp D-Sub Connector Coaxial Contact Gold 20 AWG 09691815143
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Harting |
| Length | 26.8mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | D-Sub Mixed |
| Termination Type | Crimp |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Gold-plated copper alloy contacts ensure excellent conductivity.
- Suitable for wire sizes from 24 AWG to 20 AWG.
- Maximum contact resistance of 10 milliohms enhances signal quality.
- Termination type is crimp, optimized for cable assembly.
- Manufactured in Czech Republic under strict quality control.
- Compatible with RG cables for diverse industrial applications.
- Ideal for use in electronics, power connectors, and communication systems.
Product Description
Harting 09691815143 Female Crimp D-Sub Connector from the D-Sub Mixed Series features gold-plated copper alloy coaxial contacts designed for reliable electrical connections in cable assemblies. This connector is specified with a crimp termination type ensuring secure and robust contacts with wire sizes ranging from 24 AWG to 20 AWG. The contact length is precisely 26.8 mm, facilitating compatibility with a variety of RG cable types commonly used in industrial, electronics, and power connector applications.
Manufactured in the Czech Republic, this component maintains a maximum contact resistance of 10 milliohms, supporting high-quality signal transmission with minimal loss. The gold plating on the copper alloy contacts provides enhanced corrosion resistance and durability, critical for long-term use in demanding environments.
Harting's D-Sub Mixed Series connectors are engineered for mixed contact shells, enabling versatile configurations for multipurpose electronic installations. These connectors are employed in numerous industrial sectors, including telecommunications, embedded systems, and power management setups.
Gold-plated copper alloy ensures excellent electrical connectivity. Contact resistance limited to 10 milliohms for signal integrity. Wire size accommodation from 24 AWG to 20 AWG supports varied cabling. Crimp termination provides a secure mechanical and electrical connection.
26.8mm contact length suitable for multiple D-Sub shell configurations. Manufactured in the Czech Republic with high quality standards. Compatible with RG cable types for flexible industrial applications. Widely used in electronics, communication, and power connector systems.
This Harting D-Sub Connector model 09691815143 is an essential component for electronic assembly, offering high reliability and performance for industrial and commercial applications. For more products in the D-Sub Connector category, explore EnvMart's extensive selection of power and electronic connectors designed to meet rigorous industry requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can accommodate a maximum wire size of 20 AWG, with a minimum size of 24 AWG.
The termination type of this connector is crimp, which ensures a secure mechanical and electrical connection.
The contact length of this connector is 26.8 mm, making it suitable for various D-Sub shell configurations.
The maximum contact resistance is limited to 10 milliohms, which supports high-quality signal transmission.
The contacts are made from gold-plated copper alloy, which enhances conductivity and corrosion resistance.
This model is manufactured in the Czech Republic under strict quality control standards.
It is compatible with RG cable types, making it suitable for diverse industrial applications.
This connector belongs to the D-Sub Mixed Series, designed for versatile configurations in electronic installations.
This connector is widely used in electronics, communication systems, and power management setups.
The gender of this connector is female, designed for secure connections in cable assemblies.
The minimum wire size that this connector can accommodate is 24 AWG, equivalent to 0.25 mm².
The gold plating on the contacts provides enhanced corrosion resistance and improves electrical connectivity.
