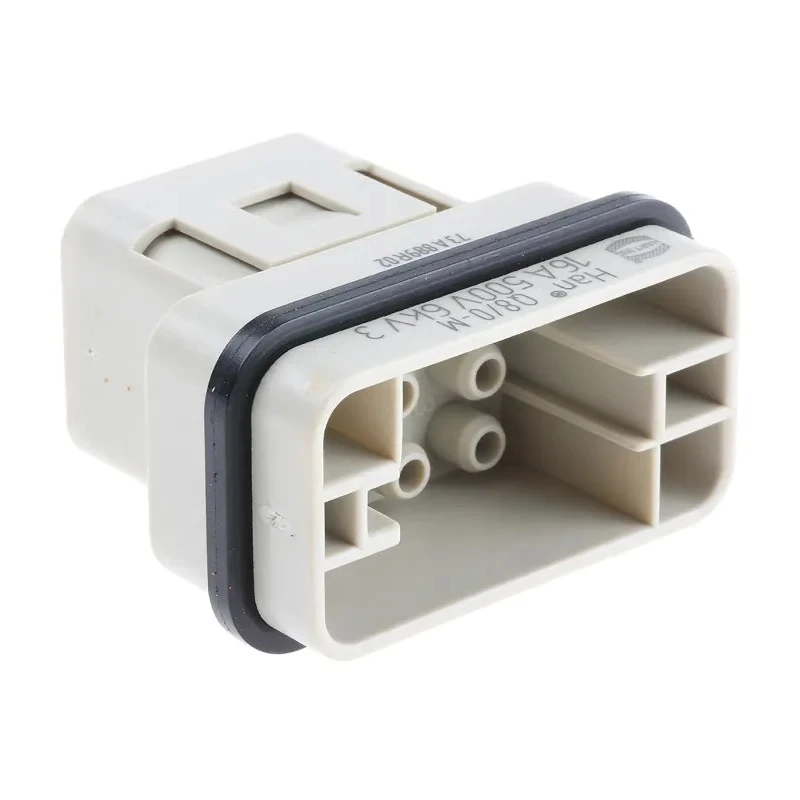

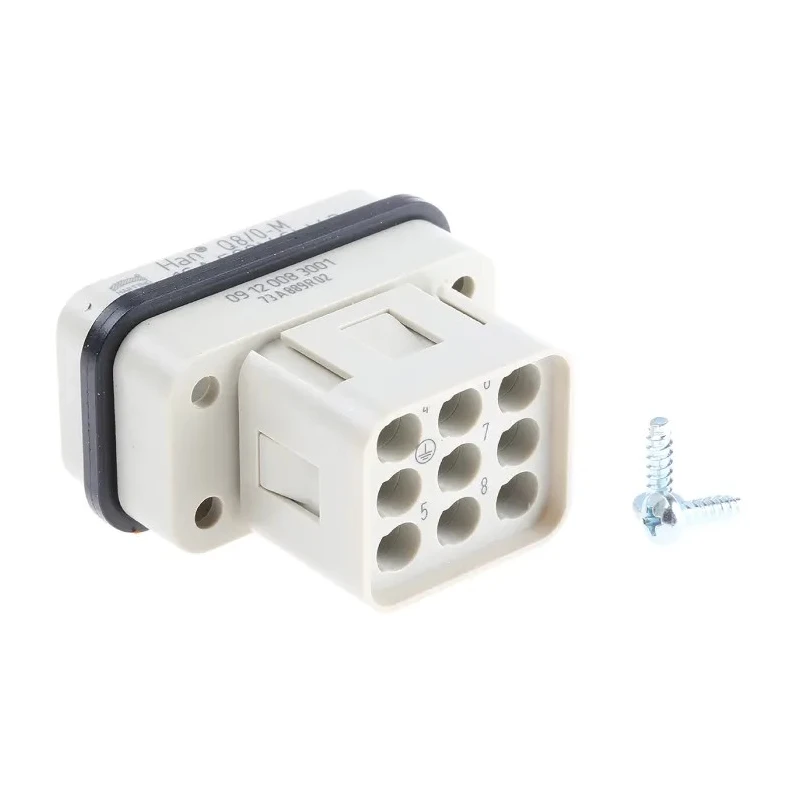

HARTING Heavy Duty Power Connector Insert 16A 500V Han Q Series Male 9 Contacts 09120083001
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han Q |
| Sub Type | Connector Insert |
| Number of Rows | 3 |
| Pole Format | 8+PE |
| Contact Plating | Silver |
| Number of Contacts | 9 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Han Q male and female inserts for receiving crimping contacts | 8 poles + PE |
Key Features
- Designed for industrial and electronic power connection applications.
- Part of the Han Q Series with straight orientation and cable mount type.
- Constructed with copper alloy contacts plated in silver for high conductivity and corrosion resistance.
- Supports wire sizes from 0.5 mm² up to 2.5 mm².
- Provides IP65 protection rating against dust and water ingress.
- Features 8 poles plus protective earth (PE) in 3 rows layout.
- Compatible with Han Q hoods and housings for secure assembly.
- High quality German manufactured product ensuring durability and compliance with industry standards.
Product Description
HARTING 09120083001 Heavy Duty Power Connector Insert is engineered for reliable and durable power connections in demanding industrial and electronic environments. Rated at 16A current and designed for a maximum voltage of 500V, this male connector insert belongs to the Han Q Series, known for robust power connection solutions.
The connector features 9 contacts arranged in three rows, consisting of 8 power poles plus one protective earth (PE) contact, enabling a secure and safe multi-contact connection. Its straight orientation and cable mount type facilitate easy and flexible wiring installations. The contacts are made from copper alloy and plated with silver to deliver excellent electrical conductivity and resistance against corrosion, ensuring long-lasting performance even in harsh conditions.
The product supports wire sizes ranging from a minimum of 0.5 mm² to a maximum of 2.5 mm², accommodating a range of cable requirements. Its IP65 rating provides protection against dust ingress and water jets, making it suitable for industrial environments where exposure to dust and moisture is expected.
This insert is compatible with the Han Q Series hoods and housings, allowing seamless integration into broader power connector assemblies. Manufactured in Germany, this heavy duty power connector insert meets rigorous quality standards, offering reliability for power distribution and control systems across industrial, manufacturing, and automation applications.
Designed for industrial and electronic power connection applications. Part of the Han Q Series with straight orientation and cable mount type. Constructed with copper alloy contacts plated in silver for high conductivity and corrosion resistance.
Supports wire sizes from 0.5 mm² up to 2.5 mm². Provides IP65 protection rating against dust and water ingress. Features 8 poles plus protective earth (PE) in 3 rows layout. Compatible with Han Q hoods and housings for secure assembly.
High quality German manufactured product ensuring durability and compliance with industry standards.
For reliable connectivity in power distribution systems, opt for this HARTING Han Q Series heavy duty power connector insert. Browse more in the Electronics & Electricals > Electronics Components > Heavy Duty Power Connector Insert category on EnvMart for compatible accessories and hoods.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert is rated for a current of 16A and a maximum voltage of 500V.
It has an IP65 rating, providing protection against dust ingress and water jets.
This model supports wire sizes ranging from a minimum of 0.5 mm² to a maximum of 2.5 mm².
It features a total of 9 contacts, arranged in a layout of 8 power poles plus one protective earth (PE) contact.
The contacts are constructed from copper alloy and are plated with silver for enhanced conductivity and corrosion resistance.
Yes, it is compatible with Han Q hoods and housings, allowing for secure assembly in broader connector systems.
It has a straight orientation and is designed for cable mounting.
This connector insert is manufactured in Germany.
The contacts are organized in three rows, with a configuration of 8 poles plus a protective earth contact.
It is designed for industrial and electronic power connection applications, suitable for power distribution and control systems.
The protective earth (PE) contact enhances safety by providing a grounding point, which helps prevent electrical shocks and equipment damage.
Key features include a current rating of 16A, voltage rating of 500V, IP65 protection, and compatibility with Han Q hoods, along with high conductivity contacts.
