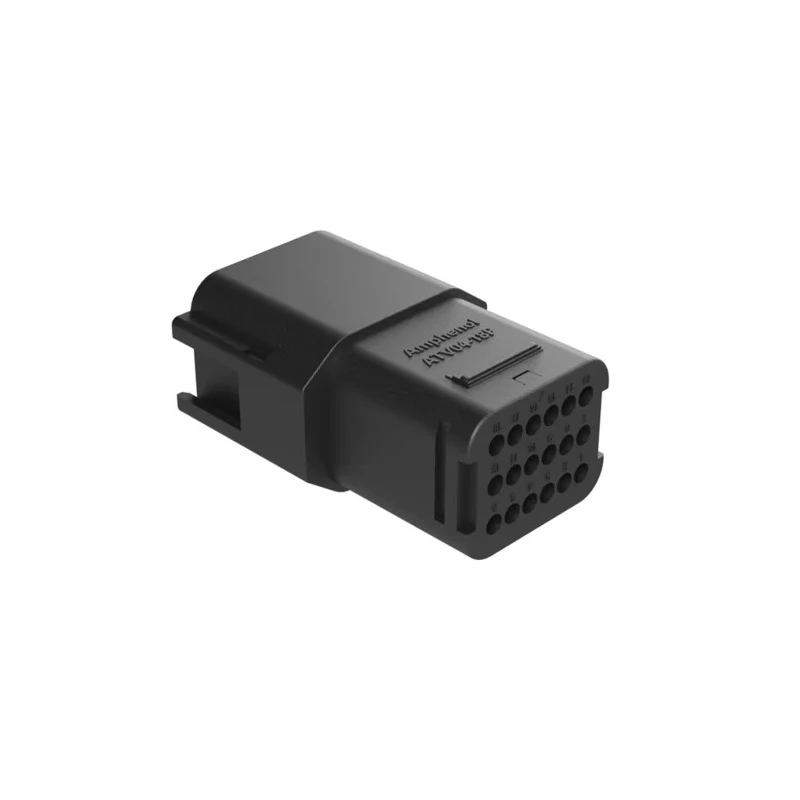

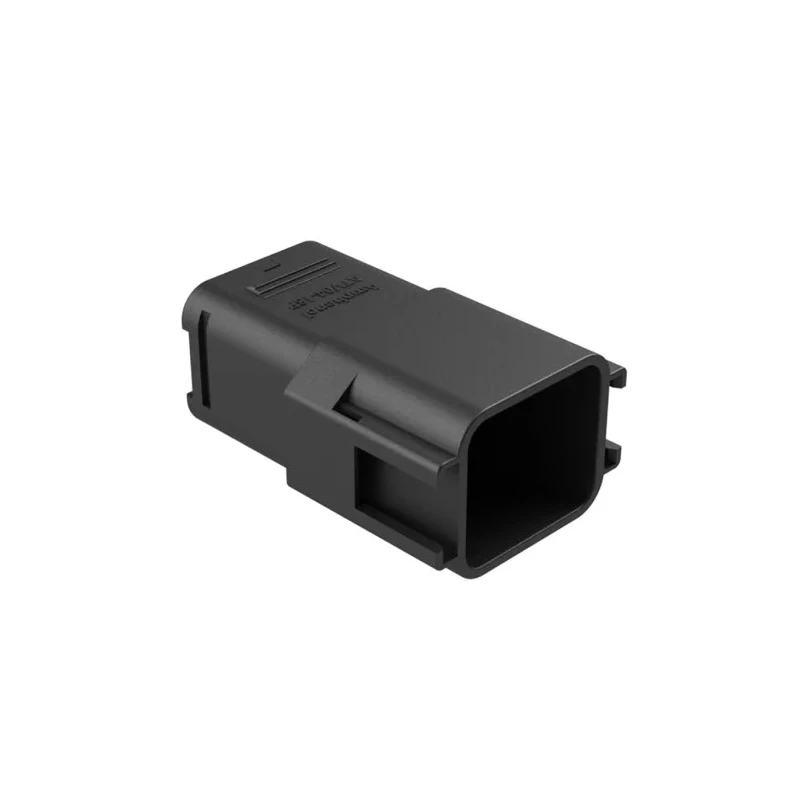

Amphenol Industrial Automotive Connector Female Black Cable 18 Way Solder Termination ATV04-18PB
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 0.145in |
| Brand | Amphenol Industrial |
| Colour | Black |
| Current | 13A |
| Height | 31.4mm |
| Model | ATV04-18PB |
| Depth | 68.4mm |
| IP Rating | IP69K, IP67 |
| Width | 45.8mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | ATV04 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Standards/Approvals | RoHS |
| Number of Contacts | 18 |
Key Features
- Designed with 18 contacts ensuring robust connectivity.
- Female gender with solder termination type for secure cable mounting.
- Rated for a current of 13A suitable for varied automotive circuits.
- Constructed with thermoplastic housing for durability and insulation.
- IP69K and IP67 rated for high resistance against water and dust ingress.
- Operates reliably between temperatures of -55°C to 125°C.
- Compliance with RoHS standards ensuring environmental safety.
- Manufactured with a 0.145 inch diameter for size 16 contacts in a 3-row configuration.
Product Description
Amphenol Industrial ATV04-18PB is a high-quality automotive connector featuring an 18-position in-line female receptacle with solder termination. This connector belongs to the ATV04 series and is designed for cable mount applications requiring reliable electrical connection in automotive systems.
The connector supports a current rating of 13A and is fabricated with a durable thermoplastic housing that provides excellent protection and electrical insulation. Its compact physical dimensions (width 45.8mm, height 31.4mm, depth 68.4mm) and 0.145 inch diameter contacts make it suited for tight installations in automotive wiring harnesses.
With an IP rating of IP69K and IP67, the connector offers superior protection against dust and water ingress, making it ideal for industrial, automotive, and harsh environment applications. It operates reliably within a temperature range from -55°C to +125°C, ensuring performance stability in extreme conditions.
The 18 contacts are arranged in 3 rows with size 16 contact type, providing secure solder termination connections for cables. This product complies with RoHS standards, affirming its environmental friendliness and manufacturing quality.
Manufactured in China, the Amphenol ATV04-18PB connector is supplied in new condition and is widely used across industrial, automotive, manufacturing, and assembly applications requiring robust and stable electrical connectors for cable configurations.
Designed with 18 contacts ensuring robust connectivity. Female gender with solder termination type for secure cable mounting. Rated for a current of 13A suitable for varied automotive circuits. Constructed with thermoplastic housing for durability and insulation.
IP69K and IP67 rated for high resistance against water and dust ingress. Operates reliably between temperatures of -55°C to 125°C. Compact dimensions: 45.8mm width, 31.4mm height, and 68.4mm depth. Compliance with RoHS standards ensuring environmental safety.
Manufactured with a 0.145 inch diameter for size 16 contacts in a 3-row configuration. Originates from China with new product condition. Explore more Automotive Connectors and electrical components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 13A, making it suitable for various automotive circuits.
The dimensions of the Amphenol ATV04-18PB are 45.8mm in width, 31.4mm in height, and 68.4mm in depth.
It has an IP rating of IP69K and IP67, providing high resistance against water and dust ingress.
This connector operates reliably between temperatures of -55°C to +125°C.
This model features 18 contacts arranged in a 3-row configuration.
The ATV04-18PB uses a solder termination type for secure cable mounting.
The housing is constructed from thermoplastic, providing durability and insulation.
Yes, it complies with RoHS standards, ensuring environmental safety.
This connector is of female gender, designed for cable mount applications.
The contacts have a diameter of 0.145 inches, suitable for size 16 applications.
This connector is manufactured in China.
It is widely used across industrial, automotive, manufacturing, and assembly applications requiring robust electrical connectors.
