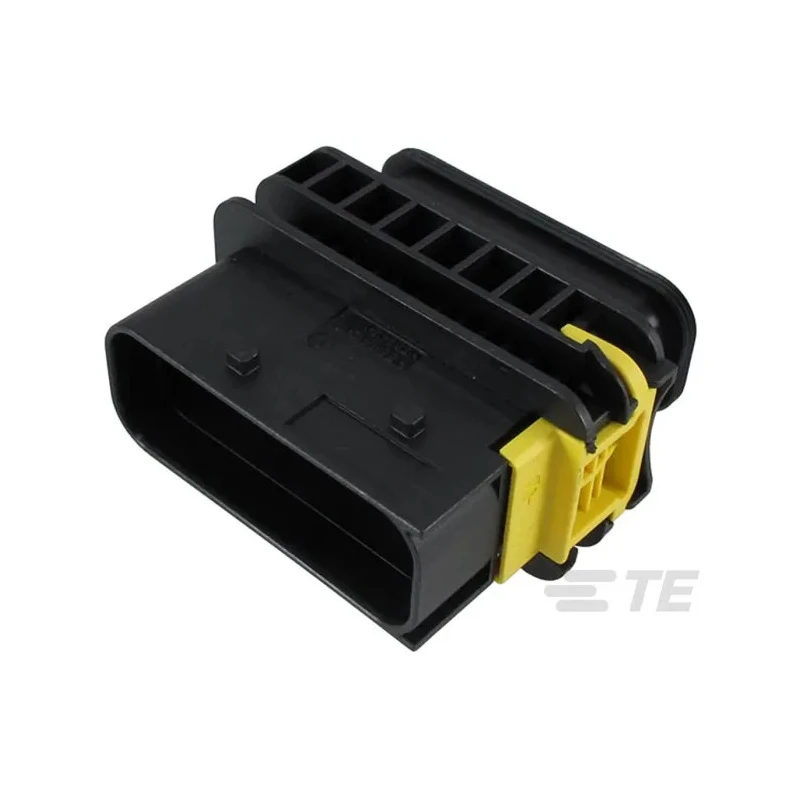

TE Connectivity HDSCS Automotive Female Connector Black Plug-in 18 Way Crimp Termination 1-1564412-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity HDSCS Automotive Female Connector Black Plug-in 18 Way Crimp Termination 1-1564412-1

Name: TE Connectivity HDSCS Automotive Female Connector Black Plug-in 18 Way Crimp Termination 1-1564412-1
Brand: TE Connectivity
SKU: 156343
Price: 6.79 USD
Availability: InStock



Category Automotive Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Current	20A
Height	27mm
Depth	47.1mm
IP Rating	IP67, IP6K9K
Width	52.6mm
Gender	Female
Mount Type	Plug-in
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Series	HDSCS
Termination Type	Crimp
Maximum Operating Temperature	140°C
Sub Type	Tab Housing
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	EU ELV, EU RoHS
Contact Plating	Tin
Number of Contacts	18

Key Features

Constructed with fibreglass reinforced polybutylene terephthalate housing material for enhanced strength.
Features 18 contacts arranged in 2 rows with tin-plated crimps.
Rated for a current of up to 20 A with reliable crimp termination.
Plug-in mount type with a black colour for easy identification.
IP67 and IP6K9K rated for superior dust and water resistance in harsh automotive conditions.
Operates reliably in temperatures from -40°C to 140°C.
Complies with EU ELV and EU RoHS standards ensuring environmental and safety compliance.
Designed for cable to cable and cable to device connections with a slide lock mating system.

Product Description

TE Connectivity 1-1564412-1 HDSCS automotive female connector is a high-performance 18-way plug-in connector ideal for demanding automotive and industrial applications. It features a robust fibreglass reinforced polybutylene terephthalate housing that offers excellent mechanical strength and chemical resistance.

Equipped with 18 crimp termination contacts plated with tin and arranged in 2 rows, this connector supports currents up to 20 A. The black housing and plug-in mount type enable durable and secure connections in cable-to-cable and cable-to-device scenarios.

Its rugged design is rated IP67 and IP6K9K, providing superior protection against dust, water jets, and high-pressure cleaning, ensuring reliable operation in harsh environments including automotive, manufacturing, and outdoor applications.

This connector operates efficiently from -40°C up to 140°C, making it suitable for extreme temperature fluctuations commonly encountered in automotive systems. Constructed from fibreglass reinforced polybutylene terephthalate housing material for high durability.

18 tin-plated crimp termination contacts arranged in 2 rows for reliable electrical performance. Plug-in mount type with a secure slide lock mating mechanism. Rated for currents up to 20 A to handle automotive electrical loads.

IP67 and IP6K9K protection ratings for excellent ingress resistance. Compliant with EU ELV and EU RoHS environmental standards. Black color housing for clear identification in wiring assemblies. Suitable for cable-to-cable and cable-to-device connector applications.

This product is widely used in industrial, automotive, manufacturing, and electrical systems requiring secure, durable, and environmentally sealed electrical connections. It is listed under automotive connectors and supports high reliability in challenging environments.
